Transporto priemonė: O 364,365; VIN numerio dalis: 364111

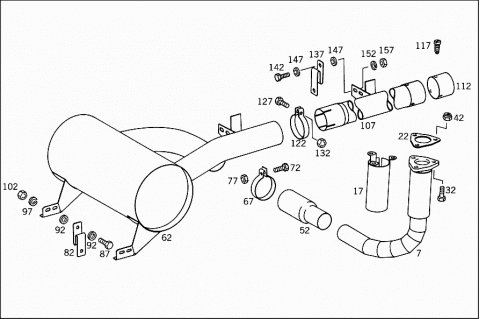

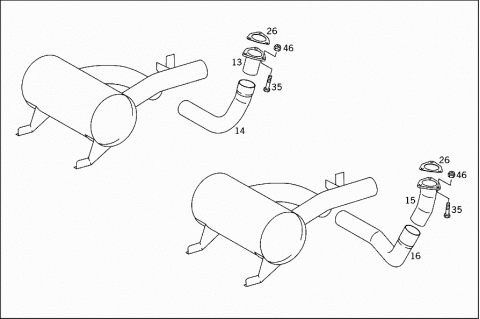

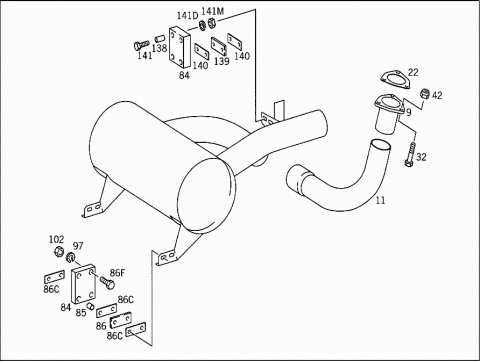

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3644907319 | EXHAUST PIPE |
| Repalced by: A 3644907619 | ||
| 009 | A 3644907619 | EXHAUST PIPE |
| FRONT TOP | ||
| 011 | A 3644907719 | EXHAUST PIPE |
| FRONT BOTTOM | ||
| A 3644907119 | EXHAUST PIPE | |
| Repalced by: A 3644907919 | ||
| 013 | A 3644907919 | EXHAUST PIPE |
| FRONT TOP | ||
| 014 | A 3644928101 | FRONT EXHAUST PIPE |
| FRONT BOTTOM | ||
| A 3644907419 | EXHAUST PIPE | |
| Repalced by: A 3644907819 | ||
| 015 | A 3644907819 | EXHAUST PIPE |
| FRONT TOP | ||
| 016 | A 3644927901 | FRONT EXHAUST PIPE |
| FRONT BOTTOM | ||
| 017 | A 3024900030 | PROTECTIVE PLATE |
| 022 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 022 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | N 000931010264 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X45 | ||
| 032 | N 000931010100 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X65 | ||
| 035 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 035 | N 000931012140 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X90 | ||
| A 3044920053 | SPACER TUBE | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 042 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 042 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 046 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 046 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 052 | A 3644927107 | CONNECTOR |
| 052 | A 3644927007 | CONNECTOR |
| 062 | A 3644907201 | EXHAUST MUFFLER |
| 062 | A 3644907401 | EXHAUST MUFFLER |
| 062 | A 3644907601 | EXHAUST MUFFLER |
| 067 | A 3274925240 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 072 | N 000933010129 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | N 000934010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| A 3644927441 | BRACKET | |
| LOWER FRONT EXHAUST PIPE TO MUFFLER AND TO SUBSTRUCTURE | ||
| A 3274925240 | CLAMP | |
| LOWER FRONT EXHAUST PIPE TO MUFFLER AND TO SUBSTRUCTURE | ||
| N 000933010269 | SCREW | |
| LOWER FRONT EXHAUST PIPE TO MUFFLER AND TO SUBSTRUCTURE | ||
| N 000934010000 | NUT | |
| LOWER FRONT EXHAUST PIPE TO MUFFLER AND TO SUBSTRUCTURE | ||
| 082 | A 3444927026 | CLAMPING PIECE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 084 | A 3054920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 085 | A 3179910840 | SPACER TUBE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 086 | A 3174920083 | INSULATION |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 086C | A 3174920018 | BASE PLATE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 086F | N 000960008002 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X40 | ||
| 086F | N 000960008002 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X40 | ||
| 086F | N 000960008016 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X45 | ||
| 087 | N 000961008021 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 092 | N 009021008100 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 097 | N 912004008100 | LOCK WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 102 | N 000934008007 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| N 000960008016 | SCREW | |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X50 | ||
| N 000125008417 | WASHER | |
| 107 | A 3644907221 | EXHAUST PIPE |
| REAR | ||
| 112 | A 3644927014 | END PIECE |
| 117 | A 3219902501 | SCREW |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
| 122 | A 3274925240 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 127 | N 000933010129 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 132 | N 000934010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | A 3444927026 | CLAMPING PIECE |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| A 3054920082 | DAMPING PAD | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 138 | A 3179910840 | SPACER TUBE |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 139 | A 3174920083 | INSULATION |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 140 | A 3174920018 | BASE PLATE |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 141 | N 000960008016 | SCREW |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| M 8X45 | ||
| 141 | N 000960008002 | SCREW |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| M 8X40 | ||
| 141D | N 000127008104 | LOCK WASHER |
| 141M | N 000934008007 | NUT |
| 142 | N 000961008021 | SCREW |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 147 | N 009021008100 | WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 152 | N 912004008100 | LOCK WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 157 | N 000934008007 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| N 000125008417 | WASHER | |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
