Transporto priemonė: O 364,365; VIN numerio dalis: 364111

Grupė: 47 FUEL SYSTEM

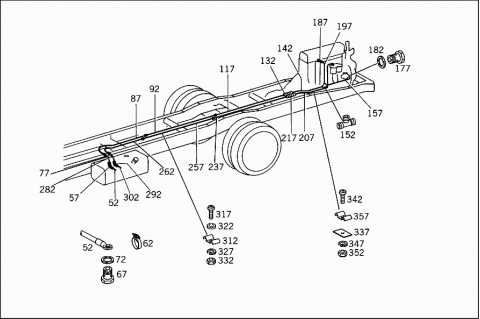

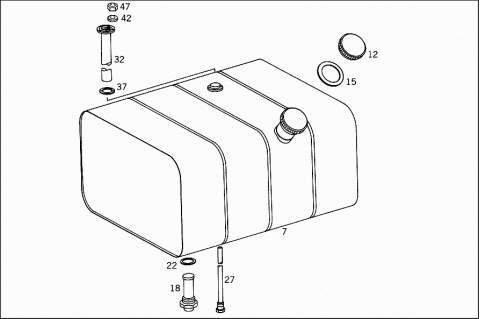

#	Kodas	Pavadinimas
007	A 3644707301	FUEL TANK
	A 3644707201	FUEL TANK
012	A 3444700205	FILLER CAP
015	A 3444710679	SEAL RING
	A 3034700031	CHAIN
018	A 3444700106	FUEL STRAINER
	Repalced by: A 3124711620
018	A 3124711620	FITTING
022	N 007603035300	SEAL RING
		FUEL STRAINER SCREEN
027	A 3124701126	RISING PIPE
032	A 0015426117	SENDER UNIT
	Repalced by: A 3455427617
032	A 3455427617	SENDER UNIT
	Repalced by: A 3455427817
032	A 3455427817	SENDER UNIT
	Repalced by: A 3505427017
032	A 3505427017	SENDER UNIT
		FUEL TANK
037	A 3524710080	GASKET
042	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
047	N 000934005008	NUT
		FUEL GAUGE SENDER UNIT TO FUEL TANK
	N 007985005171	SCREW
		FUEL GAUGE SENDER UNIT TO FUEL TANK
052	A 3444707066	LINE
		FROM FUEL TANK TO RUBBER HOSE
052	A 3644709664	LINE
		FUEL TANK
057	A 3444760126	HOSE
		180 MM
062	A 3509970290	LOOM TIE
		AS REQUIRED
	A 3509970290	CLAMP
		AS REQUIRED
067	N 915011008101	HOLLOW SCREW
		FUEL LINE TO TANK
072	N 007603014106	SEAL RING
		FUEL LINE TO TANK
077	A 3644708864	LINE
		FROM FITTING TO HOSE
	N 915017010200	UNION NUT
		FUEL LINES
087	A 3644707364	LINE
		FROM FITTING I TO FITTING II
	N 915017010200	UNION NUT
		FUEL LINE
092	A 3644708664	LINE
		FROM FITTING II TO CONNECTION FITTING III
092	A 3644709964	LINE
		FROM FITTING II TO CONNECTION FITTING III
117	A 3644708964	LINE
		FROM FITTING III TO RUBBER HOSE
	A 3644707065	LINE
		FROM FITTING III TO RUBBER HOSE
117	A 3644709064	LINE
		FROM FITTING III TO RUBBER HOSE
117	A 3644709164	LINE
		FROM FITTING III TO RUBBER HOSE
	N 915017010200	UNION NUT
132	A 3444760126	HOSE
	A 3509970290	LOOM TIE
		AS REQUIRED
	A 3509970290	CLAMP
		AS REQUIRED
142	A 3644707164	LINE
		FROM HOSE TO T-FITTING
142	A 3644707264	LINE
		FROM HOSE TO T-FITTING
142	A 3644707264	LINE
		FROM HOSE TO T-FITTING
152	N 003908010002	T-FITTING
157	A 3644708164	LINE
		FROM T-FITTING TO FUEL PUMP
157	A 3644708264	LINE
		FROM T-FITTING TO FUEL PUMP
157	A 3644708264	LINE
		FROM T-FITTING TO FUEL PUMP
157	A 3644709364	LINE
		FROM T-FITTING TO FUEL PUMP
177	N 915011008101	HOLLOW SCREW
		FUEL LINE TO FEED PUMP
182	N 007603014303	SEAL RING
187	A 3440780081	HOSE
	Repalced by: A 3769978182
187	A 3769978182	HOSE
	N 916002010100	CLAMP
197	A 3644708364	LINE
		FROM HOSE TO T-FITTING
197	A 3644708464	LINE
		FROM HOSE TO T-FITTING
197	A 3644708464	LINE
		FROM HOSE TO T-FITTING
197	A 3644709464	LINE
		FROM HOSE TO T-FITTING
207	A 3644707864	LINE
		FROM FILTER TO HOSE
207	A 3644707964	LINE
		FROM FILTER TO HOSE
207	A 3644708064	LINE
		FROM FILTER TO HOSE
	N 915017010200	UNION NUT
		FUEL LINE
217	A 3444760126	HOSE
	A 3509970290	LOOM TIE
		AS REQUIRED
	A 3509970290	CLAMP
		AS REQUIRED
237	A 3644708964	LINE
		FROM RUBBER HOSE TO FITTING I
237	A 3644709764	LINE
		FROM RUBBER HOSE TO FITTING I
	A 3644707165	LINE
		FROM RUBBER HOSE TO FITTING I
237	A 3644709064	LINE
		FROM RUBBER HOSE TO FITTING I
237	A 3644709864	LINE
		FROM RUBBER HOSE TO FITTING I
237	A 3644709264	LINE
		FROM RUBBER HOSE TO FITTING I
	N 915017010200	UNION NUT
257	A 3644709964	LINE
		FROM FITTING I TO CONNECTION FITTING II
257	A 3644708664	LINE
		FROM FITTING I TO CONNECTION FITTING II
262	A 3644707464	LINE
		FROM FITTING II TO CONNECTION FITTING III
282	A 3644708864	LINE
		FROM FITTING TO HOSE
292	A 3444760126	HOSE
		180 MM
	A 3509970290	LOOM TIE
		AS REQUIRED
	A 3509970290	CLAMP
		AS REQUIRED
302	A 3444707066	LINE
		FROM HOSE TO TANK
302	A 3644709564	LINE
		FROM RETURN LINE TO FUEL TANK
	N 007603014106	SEAL RING
		FUEL LINE TO TANK
	N 915011008101	HOLLOW SCREW
		FUEL LINE TO TANK
	A 1869970481	GROMMET
		FUEL LINES
312	A 3179950832	CLAMP
		FUEL LINE TO SUBSTRUCTURE
317	N 000933006220	SCREW
		FUEL LINE TO SUBSTRUCTURE
322	N 000125006420	WASHER
		FUEL LINE TO SUBSTRUCTURE
327	N 912004006100	LOCK WASHER
		FUEL LINE TO SUBSTRUCTURE
332	N 000934006006	NUT
		FUEL LINE TO SUBSTRUCTURE
337	A 3124761036	BRACKET
	Repalced by: A 3124761236
337	A 3124761236	BRACKET
		FUEL LINE TO FUEL LINE
342	N 000933006220	SCREW
		FUEL LINE TO FUEL LINE
347	N 912004006100	LOCK WASHER
		FUEL LINE TO FUEL LINE
352	N 000934006006	NUT
		FUEL LINE TO FUEL LINE
357	A 3179950832	CLAMP
		FUEL LINE TO FUEL LINE
	N 007981003263	SHEET METAL SCREW
