Transporto priemonė: O 364,365; VIN numerio dalis: 364111

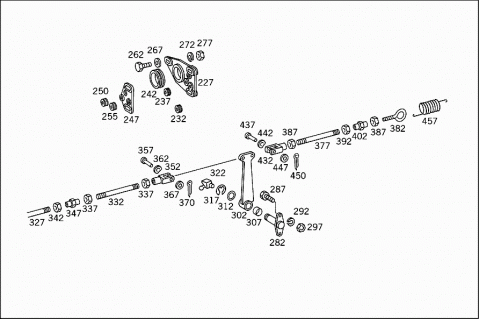

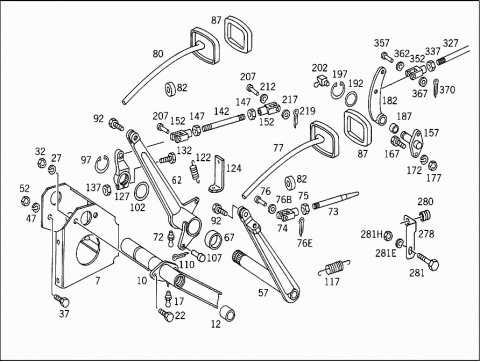

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3642927004 | BEARING BRACKET |
| A 3642907019 | BEARING BRACKET | |
| 010 | A 3642907020 | BEARING |
| 012 | A 3122940150 | BUSHING |
| BEARING BRACKET | ||
| 017 | N 071412010200 | GREASE NIPPLE |
| 022 | N 000933008282 | SCREW |
| BEARING TUBE TO PEDAL BEARING BRACKET | ||
| 027 | N 912004008100 | LOCK WASHER |
| BEARING TUBE TO PEDAL BEARING BRACKET | ||
| 032 | N 000934008000 | NUT |
| BEARING TUBE TO PEDAL BEARING BRACKET | ||
| 037 | N 000933010174 | SCREW |
| N 000933010174 | SCREW | |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 047 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 052 | N 000934010000 | NUT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 057 | A 3642907016 | PEDAL |
| CLUTCH | ||
| 062 | A 3642907018 | PEDAL |
| Repalced by: A 3642907518 | ||
| 062 | A 3642907518 | PEDAL |
| BRAKE | ||
| 067 | A 3122911550 | BUSHING |
| 072 | N 071412010100 | GREASE NIPPLE |
| A 3452908439 | ROD | |
| A 3452908339 | ROD | |
| Repalced by: A 3452957033 | ||
| A 3452957033 | ROD | |
| Repalced by: A 3762950033 | ||
| 073 | A 3762950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| A 3459967001 | YOKE | |
| Repalced by: A 3769960001 | ||
| 074 | A 3769960001 | YOKE |
| PISTON ROD TO LEVER | ||
| 075 | N 000934012009 | NUT |
| PISTON ROD TO LEVER | ||
| 076 | A 3529910007 | PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 076B | N 000433010500 | WASHER |
| PISTON ROD TO BRAKE PEDAL | ||
| 076E | N 000094003212 | COTTER PIN |
| PISTON ROD TO BRAKE PEDAL | ||
| 077 | A 3442907024 | PEDAL PLATE |
| Repalced by: A 3642907216 | ||
| 077 | A 3642907216 | PEDAL |
| CLUTCH | ||
| A 3642907316 | PEDAL | |
| CLUTCH | ||
| 080 | A 3442900124 | PEDAL PLATE |
| BRAKE | ||
| A 3642907024 | PEDAL PLATE | |
| BRAKE | ||
| 082 | A 3122911097 | SEAL WASHER |
| BRAKE PEDAL | ||
| A 3222930077 | WASHER | |
| CLUTCH PEDAL | ||
| 087 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 087 | A 3202925082 | PAD |
| CLUTCH PEDAL | ||
| A 3052910182 | PAD | |
| BRAKE PEDAL | ||
| 092 | N 000933010174 | SCREW |
| CLUTCH AND BRAKE PEDALS TO LEVER | ||
| 097 | N 000471040002 | LOCK RING |
| 102 | N 000988040001 | FITTED WASHER |
| 107 | N 001444010211 | PIN |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 110 | N 000094003027 | COTTER PIN |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 117 | A 3529931110 | SPRING |
| Repalced by: A 3649337310 | ||
| 117 | A 3649937310 | SPRING |
| CLUTCH PEDAL | ||
| 122 | A 3649937010 | SPRING |
| BRAKE PEDAL | ||
| 124 | A 3212920740 | BRACKET |
| BRAKE PEDAL RELEASE SPRING | ||
| A 3642927140 | BRACKET | |
| BRAKE PEDAL RELEASE SPRING | ||
| 127 | A 3442930310 | LEVER |
| CLUTCH | ||
| 132 | N 000933008279 | SCREW |
| LEVER TO SHAFT | ||
| 137 | N 000934008000 | NUT |
| LEVER TO SHAFT | ||
| 142 | N 900331010610 | PULL ROD |
| CLUTCH LINKAGE | ||
| 142 | N 900331010611 | PULL ROD |
| CLUTCH LINKAGE | ||
| 147 | N 000934010000 | NUT |
| CLUTCH LINKAGE | ||
| 152 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 152 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 157 | A 3212900074 | PIN |
| INTERMEDIATE LEVER I | ||
| 167 | N 000933008282 | SCREW |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 172 | N 912004008100 | LOCK WASHER |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 177 | N 000934008000 | NUT |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 182 | A 3642907434 | LEVER |
| 187 | A 3213010050 | BUSHING |
| 192 | A 3219900040 | WASHER |
| PIVOT PIN | ||
| 197 | N 000471020000 | LOCK RING |
| PIVOT PIN | ||
| 202 | N 071412010300 | GREASE NIPPLE |
| PIVOT PIN | ||
| 207 | N 001444010213 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 212 | N 900055010001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 217 | N 000433010500 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 219 | N 000094003027 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 227 | A 3442900337 | BEARING |
| 232 | A 3442910085 | BUSHING |
| 237 | A 3173010085 | RUBBER BUFFER |
| 242 | A 3022680050 | BUSHING |
| 247 | A 3212903237 | BEARING |
| 250 | A 3442910085 | BUSHING |
| 255 | A 3173010085 | RUBBER BUFFER |
| 262 | N 000933008282 | SCREW |
| GUIDE TO SUBSTRUCTURE | ||
| 267 | N 000125008417 | WASHER |
| GUIDE TO SUBSTRUCTURE | ||
| 272 | N 912004008100 | LOCK WASHER |
| GUIDE TO SUBSTRUCTURE | ||
| 277 | N 000934008000 | NUT |
| GUIDE TO SUBSTRUCTURE | ||
| 278 | A 3642917240 | BRACKET |
| PULL ROD GUIDE | ||
| 278 | A 3642917340 | BRACKET |
| PULL ROD GUIDE | ||
| 280 | A 0009979281 | GROMMET |
| 281 | N 000961012171 | SCREW |
| 281E | N 000137012203 | SPRING WASHER |
| 281H | N 000936012016 | NUT |
| 282 | A 3212900074 | PIN |
| INTERMEDIATE LEVER II | ||
| 287 | N 000933008282 | SCREW |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 292 | N 912004008100 | LOCK WASHER |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 297 | N 000934008000 | NUT |
| PIVOT PIN TO SUBSTRUCTURE | ||
| 302 | A 3212900734 | LEVER |
| 307 | A 3213010050 | BUSHING |
| 312 | A 3219900040 | WASHER |
| PIVOT PIN | ||
| 317 | N 000471020000 | LOCK RING |
| PIVOT PIN | ||
| 322 | N 071412010300 | GREASE NIPPLE |
| PIVOT PIN | ||
| 327 | N 900331010554 | PULL ROD |
| FROM INTERMEDIATE LEVER I TO TURNBUCKLE NUT | ||
| 332 | N 900331010613 | PULL ROD |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER II | ||
| 332 | N 900331010614 | PULL ROD |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER II | ||
| 337 | N 000934010000 | NUT |
| FROM LEVER I TO LEVER II | ||
| 342 | N 000934010035 | NUT |
| FROM LEVER I TO LEVER II | ||
| 347 | A 3212930033 | NUT |
| FROM LEVER I TO LEVER II | ||
| 352 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 352 | A 0009961501 | YOKE |
| FROM LEVER I TO LEVER II | ||
| 357 | N 001444010213 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 362 | N 900055010001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 367 | N 000433010500 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 370 | N 000094003027 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 377 | N 900331010618 | PULL ROD |
| FROM INTERMEDIATE LEVER II TO CLUTCH ACTUATION LEVER | ||
| 377 | A 3642937429 | ROD |
| FROM INTERMEDIATE LEVER II TO CLUTCH ACTUATION LEVER | ||
| 377 | A 3642937529 | ROD |
| FROM INTERMEDIATE LEVER II TO CLUTCH ACTUATION LEVER | ||
| 377 | A 3442930129 | ROD |
| FROM INTERMEDIATE LEVER II TO CLUTCH ACTUATION LEVER | ||
| 382 | A 3459900038 | SCREW |
| PULL ROD | ||
| 387 | N 000934010000 | NUT |
| PULL ROD | ||
| 392 | N 000934010035 | NUT |
| PULL ROD | ||
| 392 | A 3449900651 | NUT |
| PULL ROD | ||
| 392 | A 3449900751 | NUT |
| PULL ROD | ||
| 392 | N 000936014007 | NUT |
| PULL ROD | ||
| 402 | A 3212930033 | NUT |
| PULL ROD | ||
| N 900333014000 | TURNBUCKLE | |
| PULL ROD | ||
| A 3042930387 | BALL SOCKET | |
| PULL ROD | ||
| A 3449940035 | SNAP RING | |
| PULL ROD | ||
| A 3449940060 | LOCK | |
| PULL ROD | ||
| N 000934010000 | NUT | |
| PULL ROD | ||
| 432 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 432 | A 0009961501 | YOKE |
| PULL ROD | ||
| 437 | N 001444010213 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 442 | N 900055010001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 447 | N 000433010500 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 450 | N 000094003027 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 457 | A 3649937110 | SPRING |
| CLUTCH LINKAGE | ||
| 457 | A 3219930010 | SPRING |
| CLUTCH LINKAGE | ||
