Transporto priemonė: O 364,365; VIN numerio dalis: 364111
Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3645017101 | RADIATOR |

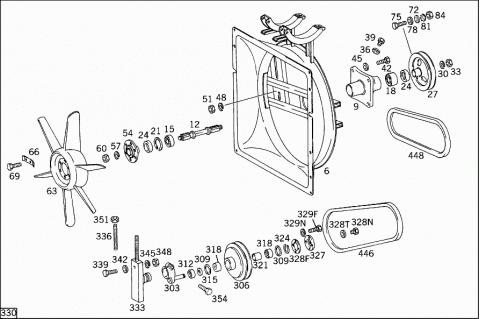

| 006 | A 3445007327 | SUPPORT |
| RADIATOR BASE FRAME | ||
| 009 | A 3212050405 | BEARING BODY |
| FAN DRIVE | ||
| 012 | A 3212050302 | FAN SHAFT |
| 015 | N 000628003304 | ANG. CONTACT BALL BEARING |
| 015 | A 3459817125 | BALL BEARING |
| 018 | A 3449817025 | BALL BEARING |
| 021 | N 000472052000 | LOCK RING |
| 024 | N 003760030300 | RADIAL SEAL RING |
| Repalced by: A 0019978447 | ||
| 024 | A 0019978447 | SEAL RING |
| 027 | A 3022050310 | PULLEY |
| Repalced by: A 3762057010 | ||
| 027 | A 3762057010 | PULLEY |
| 030 | N 912004016101 | LOCK WASHER |
| 033 | N 000936016003 | NUT |
| 036 | N 007603010110 | SEAL RING |
| 039 | N 007604010100 | SCREW PLUG |
| 042 | N 000931008238 | SCREW |
| FAN DRIVE TO SUPPORT | ||
| 045 | N 000125008417 | WASHER |
| FAN DRIVE TO SUPPORT | ||
| 048 | N 912004008100 | LOCK WASHER |
| FAN DRIVE TO SUPPORT | ||
| 051 | N 000934008000 | NUT |
| FAN DRIVE TO SUPPORT | ||
| 054 | A 3212050012 | HUB |
| FAN | ||
| 057 | N 912004016101 | LOCK WASHER |
| FAN | ||
| 060 | N 000934016003 | NUT |
| FAN | ||
| 063 | A 3212050006 | FAN |
| 066 | A 3159940030 | LOCK |
| FAN TO HUB | ||
| 069 | N 000933008288 | SCREW |
| FAN TO HUB | ||
| 072 | A 3219900540 | WASHER |
| BALANCING PLATE TO FAN | ||
| 072 | A 3219900840 | WASHER |
| BALANCING PLATE TO FAN | ||
| 072 | A 3219900440 | WASHER |
| BALANCING PLATE TO FAN | ||
| 075 | N 000912006003 | SCREW |
| BALANCING PLATE TO FAN | ||
| 075 | N 000912006003 | SCREW |
| BALANCING PLATE TO FAN | ||
| 075 | N 000912006003 | SCREW |
| BALANCING PLATE TO FAN | ||
| 078 | N 000125006420 | WASHER |
| BALANCING PLATE TO FAN | ||
| 081 | N 006797006146 | TOOTHED WASHER |
| BALANCING PLATE TO FAN | ||
| 084 | N 000934006006 | NUT |
| BALANCING PLATE TO FAN | ||

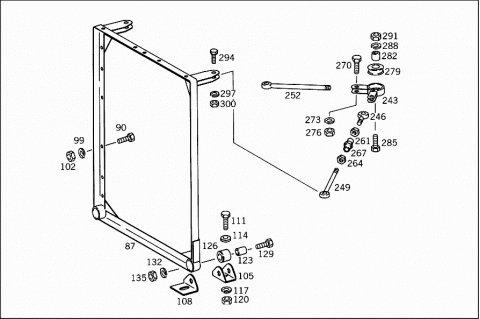

| 087 | A 3215007027 | SUPPORT |
| RADIATOR MOUNTING | ||
| 090 | N 000933008228 | SCREW |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| N 000933008282 | SCREW | |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| N 000125008417 | WASHER | |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 099 | N 912004008100 | LOCK WASHER |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 102 | N 000934008000 | NUT |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 105 | A 3525040640 | BRACKET |
| RADIATOR MOUNTING | ||
| 108 | A 3525040740 | BRACKET |
| RADIATOR MOUNTING | ||
| 111 | N 000933010174 | SCREW |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 114 | N 000125010517 | WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 117 | N 000127010202 | LOCK WASHER |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 120 | N 000934010035 | NUT |
| RADIATOR MOUNTING BRACKET TO SUBSTRUCTURE | ||
| 123 | A 3028880026 | SLEEVE |
| RADIATOR MOUNTING | ||
| 126 | A 3028880224 | MOUNTING |
| RADIATOR MOUNTING | ||
| 129 | N 000961012212 | SCREW |
| RADIATOR MOUNTING | ||
| 132 | N 000127012201 | LOCK WASHER |
| RADIATOR MOUNTING | ||
| 135 | N 000934012004 | NUT |
| RADIATOR MOUNTING | ||
| 138 | A 3645017001 | RADIATOR |
| 138 | A 3645017301 | RADIATOR |
| 141 | A 3645007027 | SUPPORT |
| RADIATOR BASE FRAME | ||
| 144 | A 3455007040 | VALVE |
| Repalced by: A 3645007827 | ||
| 144 | A 3645007827 | SUPPORT |
| LEFT | ||
| A 3455007140 | VALVE | |
| Repalced by: A 3645007927 | ||
| A 3645007927 | SUPPORT | |
| RIGHT | ||

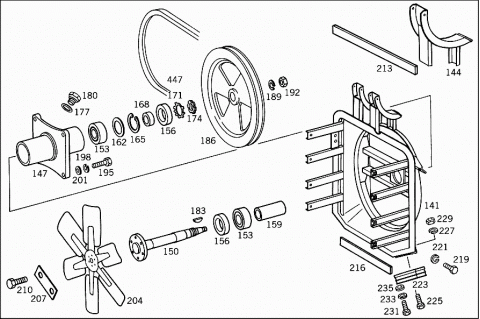

| 147 | A 3212050405 | BEARING BODY |
| FAN DRIVE | ||
| 150 | A 3262050002 | FAN SHAFT |
| FAN DRIVE | ||
| 153 | N 000628003205 | ANG. CONTACT BALL BEARING |
| FAN DRIVE | ||
| 156 | N 003760032300 | RADIAL SEAL RING |
| FAN DRIVE | ||
| 159 | A 3262060153 | SPACER TUBE |
| FAN DRIVE | ||
| 162 | A 3262050952 | SPACER WASHER |
| FAN DRIVE | ||
| 165 | N 000472052000 | LOCK RING |
| FAN DRIVE | ||
| 168 | A 3262060053 | SPACER TUBE |
| FAN DRIVE | ||
| 171 | N 070952024101 | LOCK PLATE |
| FAN DRIVE | ||
| 174 | N 070852024000 | NUT |
| FAN DRIVE | ||
| 177 | N 007603010110 | SEAL RING |
| FAN DRIVE | ||
| 180 | N 007604010100 | SCREW PLUG |
| FAN DRIVE | ||
| 183 | N 006888004002 | WOODRUFF KEY |
| FAN DRIVE | ||
| 186 | A 3552050210 | PULLEY |
| FAN DRIVE | ||
| A 3262050410 | PULLEY | |
| 189 | N 912004014100 | LOCK WASHER |
| FAN DRIVE | ||
| 192 | N 000936014010 | NUT |
| FAN DRIVE | ||
| 195 | N 000933008275 | SCREW |
| FAN DRIVE TO SUPPORT | ||
| 198 | N 912004008100 | LOCK WASHER |
| FAN DRIVE TO SUPPORT | ||
| 201 | N 000125008417 | WASHER |
| FAN DRIVE TO SUPPORT | ||
| 204 | A 3442000124 | FAN |
| 207 | A 3129940330 | LOCK |
| FAN | ||
| 210 | N 000933008282 | SCREW |
| FAN | ||
| 213 | A 3449870014 | RUBBER STRIP |
| RADIATOR TO SUPPORT | ||
| 216 | A 3449870114 | RUBBER STRIP |
| RADIATOR TO SUPPORT | ||
| 219 | N 000933008317 | SCREW |
| RADIATOR TO SUPPORT | ||
| 221 | N 912004008100 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 223 | A 3083100077 | BUFFER |
| 225 | N 000912012002 | SCREW |
| RUBBER MOUNTING TO SUPPORT | ||
| 227 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 229 | N 000934012000 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 231 | N 000933010174 | SCREW |
| RADIATOR TO SUBSTRUCTURE | ||
| 233 | N 000127010202 | LOCK WASHER |
| RADIATOR TO SUBSTRUCTURE | ||
| 235 | N 009021010102 | WASHER |
| RADIATOR TO SUBSTRUCTURE | ||
| 243 | A 3645007032 | STAY |
| 246 | A 3449907323 | SCREW |
| A 3022060057 | EXPANSION PLUG | |
| 249 | A 3649907423 | SCREW |
| 252 | A 3449907223 | SCREW |
| A 3449907123 | SCREW | |
| A 3649907023 | SCREW | |
| 261 | N 000934014002 | NUT |
| 264 | N 000934014000 | NUT |
| 267 | N 900333014000 | TURNBUCKLE |
| 270 | N 000961014106 | SCREW |
| 273 | N 000127014201 | LOCK WASHER |
| 276 | N 000934014020 | NUT |
| TO 001 431 23 14,001 431 48 14, | ||
| 279 | A 3445040112 | RUBBER MOUNTING |
| CLAMPING BRACKET TO REAR END FRAMEWORK | ||
| 282 | A 3445040153 | SPACER TUBE |
| CLAMPING BRACKET TO REAR END FRAMEWORK | ||
| 285 | N 000961012192 | SCREW |
| CLAMPING BRACKET TO REAR END FRAMEWORK | ||
| 288 | N 000127012201 | LOCK WASHER |
| CLAMPING BRACKET TO REAR END FRAMEWORK | ||
| 291 | N 000934012004 | NUT |
| CLAMPING BRACKET TO REAR END FRAMEWORK | ||
| 294 | N 000961014106 | SCREW |
| CLAMP TO RADIADOR | ||
| 297 | N 000127014201 | LOCK WASHER |
| CLAMP TO RADIADOR | ||
| 300 | N 000934014020 | NUT |
| CLAMP TO RADIADOR | ||
| A 3212000473 | LEVER | |
| 303 | A 3022000073 | LEVER |
| A 3212061019 | TIGHTENER PULLEY | |
| 306 | A 3022060819 | TIGHTENER PULLEY |
| N 000472042000 | LOCK RING | |
| 309 | N 000472047001 | LOCK RING |
| N 003760020102 | RADIAL SEAL RING | |
| 312 | N 003760022300 | RADIAL SEAL RING |
| A 3212050052 | SPACER WASHER | |
| 315 | A 3022050152 | SPACER WASHER |
| 0.2 MM | ||
| A 3212050152 | SPACER WASHER | |
| 315 | A 3022050252 | SPACER WASHER |
| 0.50 MM | ||
| A 3212050252 | SPACER WASHER | |
| 315 | A 3022050352 | SPACER WASHER |
| Repalced by: A 3022050252 | ||
| N 000625006302 | GROOVED BALL BEARING | |
| 318 | N 000625006303 | GROOVED BALL BEARING |
| A 3212060053 | SPACER TUBE | |
| 321 | A 3022060053 | SPACER TUBE |
| N 000471015000 | LOCK RING | |
| 324 | N 000471017000 | LOCK RING |
| A 3212060157 | EXPANSION PLUG | |
| 327 | A 3022060057 | EXPANSION PLUG |
| 328F | A 3022060079 | GASKET |
| 328N | N 007604010102 | SCREW PLUG |
| Repalced by: N 007604010108 | ||
| 328N | N 007604010108 | SCREW PLUG |
| 328T | N 007603010110 | SEAL RING |
| 329F | N 000933006223 | SCREW |
| 329N | N 000125006420 | WASHER |
| 330 | N 071412010100 | GREASE NIPPLE |
| 333 | A 3212000039 | SUPPORT |
| CLAMPING LEVER | ||
| 336 | A 3219900005 | STUD |
| 339 | N 000931010264 | SCREW |
| SUPPORT TO BASE FRAME | ||
| 342 | N 000125010517 | WASHER |
| SUPPORT TO BASE FRAME | ||
| 345 | N 000127010202 | LOCK WASHER |
| SUPPORT TO BASE FRAME | ||
| 348 | N 000934010000 | NUT |
| SUPPORT TO BASE FRAME | ||
| 351 | N 000934012004 | NUT |
| SUPPORT TO BASE FRAME | ||
| 354 | N 000961012209 | SCREW |
| CLAMPING LEVER | ||

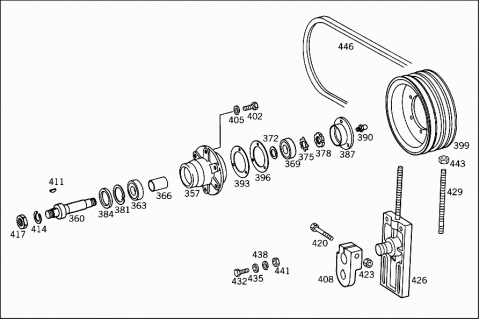

| 357 | A 3262060013 | HUB |
| TIGHTENER PULLEY | ||
| 360 | A 3262050303 | FAN SPINDLE |
| 363 | N 000720030205 | TAPERED ROLLER BEARING |
| 366 | A 3262050253 | SPACER TUBE |
| 369 | N 000720030204 | TAPERED ROLLER BEARING |
| 372 | A 8200750052 | SPACER WASHER |
| 375 | N 070952020101 | LOCK PLATE |
| 375 | A 3229940112 | LOCK |
| 378 | A 3219900160 | NUT |
| 381 | N 000472052000 | LOCK RING |
| 384 | N 003760040300 | RADIAL SEAL RING |
| 387 | A 3262050213 | EXPANSION PLUG |
| 390 | N 071412010100 | GREASE NIPPLE |
| 393 | A 3262050380 | GASKET |
| 396 | A 3262050752 | SPACER WASHER |
| 0.05 MM | ||
| 396 | A 3262050552 | SPACER WASHER |
| 0.10 MM | ||
| 396 | A 3262050452 | SPACER WASHER |
| 0.20 MM | ||
| 396 | A 3262050652 | SPACER WASHER |
| 0.50 MM | ||
| 399 | A 3442060019 | TIGHTENER PULLEY |
| 402 | N 000933008288 | SCREW |
| TIGHTENER PULLEY TO HUB | ||
| 405 | N 912004008100 | LOCK WASHER |
| TIGHTENER PULLEY TO HUB | ||
| 408 | A 3442060033 | LEVER |
| 411 | N 006888003005 | WOODRUFF KEY |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 414 | N 912004024101 | LOCK WASHER |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 417 | N 000439024202 | NUT |
| CLAMPING LEVER TO FAN SPINDLE | ||
| 420 | N 000961012184 | SCREW |
| CLAMPING LEVER | ||
| 423 | N 000934012004 | NUT |
| CLAMPING LEVER | ||
| 426 | A 3445001227 | SUPPORT |
| TIGHTENER PULLEY | ||
| 429 | A 3445040174 | PIN |
| 432 | N 000931010264 | SCREW |
| RADIATOR TO SUPPORT | ||
| 435 | N 007349010001 | WASHER |
| RADIATOR TO SUPPORT | ||
| 438 | N 000127010202 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 441 | N 000934010000 | NUT |
| RADIATOR TO SUPPORT | ||
| 443 | N 000934012004 | NUT |
| N 000125013009 | WASHER | |
| A 3455040084 | SHIM | |
| N 007753112524 | NARROW V-BELT | |
| Repalced by: A 0049973192 | ||
| A 0049973192 | V-BELT | |
| Repalced by: A 0079976592 | ||
| A 0079976592 | V-BELT | |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 446 | N 007753012563 | NARROW V-BELT |
| Repalced by: A 0039978692 | ||
| 446 | A 0039978692 | V-BELT |
| FROM VIBRATION DAMPER TO TIGHTENER PULLEY | ||
| 447 | A 0039970992 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN DRIVE | ||
| 448 | A 0019972692 | V-BELT |
| Repalced by: A 0039975092 | ||
| 448 | A 0039975092 | V-BELT |
| FROM TIGHTENER PULLEY TO FAN DRIVE | ||

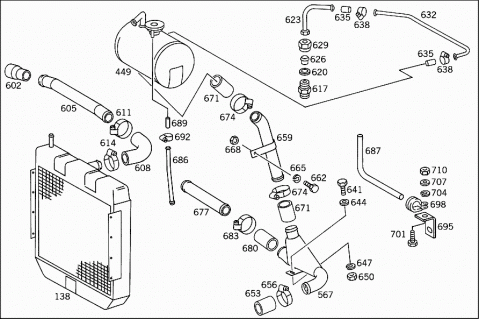

| 449 | A 3455007349 | TANK |
| 449 | A 3455007049 | TANK |
| A 3505017139 | VALVE | |
| 452 | A 3455067056 | PIPE |
| 455 | A 3455017040 | VALVE HOUSING |
| 458 | A 0005000640 | VALVE |
| 461 | A 3205010144 | COVER |
| 464 | A 3205010180 | GASKET |
| Repalced by: A 3505017080 | ||
| 464 | A 3505017080 | GASKET |
| TO 350 501 71 39 | ||
| 467 | N 000933005095 | SCREW |
| 470 | N 000127005001 | LOCK WASHER |
| 473 | N 000934005008 | NUT |
| 476 | A 3455017015 | RADIATOR CAP |
| 479 | A 3445047045 | FLANGE |
| Repalced by: A 3445007345 | ||
| 479 | A 3445007345 | STRAP |
| EXPANSION TANK TO SUPPORT | ||
| 482 | A 3445040274 | PIN |
| EXPANSION TANK TO SUPPORT | ||
| N 000094006317 | COTTER PIN | |
| EXPANSION TANK TO SUPPORT | ||
| 488 | A 3449870214 | RUBBER STRIP |
| EXPANSION TANK TO SUPPORT | ||
| 491 | N 000934008000 | NUT |
| EXPANSION TANK TO SUPPORT | ||
| 494 | N 900271022010 | HOSE |
| FROM RADIATOR TO EXPANSION TANK | ||
| 497 | A 3509970390 | LOOM TIE |
| FROM RADIATOR TO EXPANSION TANK | ||
| A 3445017024 | COOLING WATER PIPE | |
| FROM THERMOSTAT TO RADIATOR | ||
| 500 | A 3645017624 | COOLING WATER PIPE |
| FROM THERMOSTAT TO RADIATOR | ||
| 503 | N 900271045016 | HOSE |
| 506 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 506 | A 0019972590 | LOOM TIE |
| 509 | A 3649977072 | FITTING |
| Repalced by: A 3449970772 | ||
| 509 | A 3449970772 | FITTING |
| DE-AERATION | ||
| 512 | N 007603014106 | SEAL RING |
| DE-AERATION | ||
| 515 | A 3445011624 | COOLING WATER PIPE |
| Repalced by: A 3445000358 | ||
| 515 | A 3445000358 | INTERMEDIATE PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 518 | N 915003010201 | SEAL CONE |
| FROM ENGINE TO EXPANSION TANK | ||
| 521 | N 915001010002 | UNION NUT |
| FROM ENGINE TO EXPANSION TANK | ||
| 524 | A 3445067057 | BREATHER PIPE |
| 527 | N 900271012020 | HOSE |
| BREATHER LINE TO HOSE CONNECTION | ||
| 530 | A 3449978490 | CLAMP |
| 530 | N 916018016000 | CLAMP |
| 533 | A 3025010020 | RUBBER PAD |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| A 3645017020 | BRACKET | |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 539 | A 3179910840 | SPACER TUBE |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 542 | A 3645047140 | BRACKET |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 545 | A 0009951410 | CLAMP |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 548 | N 916016012201 | CLAMP |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 551 | N 000933008279 | SCREW |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 554 | N 000125008417 | WASHER |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 557 | N 000933008282 | SCREW |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 560 | N 912004008100 | LOCK WASHER |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 563 | N 000934008000 | NUT |
| COOLING WATER LINE & DE-AERATOR LINE TO RADIATOR BASE FRAME | ||
| 566 | A 3445007069 | SEPARATOR |
| 566 | A 3645007369 | SEPARATOR |
| 567 | A 3645007169 | SEPARATOR |
| 567 | A 3645007469 | SEPARATOR |
| 569 | N 000933008282 | SCREW |
| BUBBLE SEPARATOR TO FAN SHROUD | ||
| 572 | N 912004008100 | LOCK WASHER |
| BUBBLE SEPARATOR TO FAN SHROUD | ||
| 575 | N 000934008000 | NUT |
| BUBBLE SEPARATOR TO FAN SHROUD | ||
| 578 | N 900271045016 | HOSE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 581 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 581 | A 0019972590 | LOOM TIE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 584 | A 3445067760 | PIPE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 587 | N 900271038039 | HOSE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 38 X 50 X 430 | ||
| 590 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 590 | A 0019972590 | LOOM TIE |
| 593 | A 3645017724 | COOLING WATER PIPE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 596 | N 900271045016 | HOSE |
| FROM BUBBLE SEPARATOR TO WATER PUMP | ||
| 599 | A 0019972590 | LOOM TIE |
| 602 | A 3025012282 | HOSE |
| FROM THERMOSTAT TO RADIATOR | ||
| 605 | A 3645017124 | COOLING WATER PIPE |
| 608 | A 3645017082 | HOSE |
| 611 | A 3449978790 | CLAMP |
| 611 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 611 | N 000000000672 | CLAMP |
| 614 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 614 | A 0019972590 | LOOM TIE |
| 617 | A 3649977172 | FITTING |
| AT ENGINE | ||
| 620 | N 007603018104 | SEAL RING |
| AT ENGINE | ||
| 623 | A 3445000358 | INTERMEDIATE PIPE |
| FROM ENGINE TO EXPANSION TANK | ||
| 626 | N 915003010201 | SEAL CONE |
| 629 | N 915001010002 | UNION NUT |
| 632 | A 3645017125 | BREATHER PIPE |
| 635 | N 900271012020 | HOSE |
| 638 | N 916018016000 | CLAMP |
| 641 | N 000933008282 | SCREW |
| BUBBLE SEPARATOR TO SUBSTRUCTURE | ||
| 644 | N 000125008417 | WASHER |
| 647 | N 912004008100 | LOCK WASHER |
| 650 | N 000934008000 | NUT |
| 653 | N 900271050020 | HOSE |
| FROM BUBBLE SEPARATOR TO RADIATOR | ||
| 656 | A 3449978790 | CLAMP |
| 656 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 656 | N 000000000672 | CLAMP |
| 659 | A 3645007172 | LINE |
| Repalced by: A 3445000789 | ||
| 659 | A 3445000789 | LINE |
| FROM BUBBLE SEPARATOR TO EXPANSION TANK | ||
| 662 | N 000933008282 | SCREW |
| 665 | N 912004008100 | LOCK WASHER |
| 668 | N 000934008000 | NUT |
| 671 | N 900271038039 | HOSE |
| CONNECTING PIPE TO BUBBLE SEPARATOR AND TO EXPANSION TANK | ||
| 38 X 50 X 430 | ||
| 674 | A 3449978690 | CLAMP |
| Repalced by: A 0019972590 | ||
| 674 | A 0019972590 | LOOM TIE |
| 677 | A 3645007072 | LINE |
| FROM BUBBLE SEPRATOR TO OIL COOLER | ||
| 680 | N 900271050020 | HOSE |
| COOLING WATER LINE TO OIL COOLER | ||
| N 900271050020 | HOSE | |
| COOLING WATER LINE TO BUBBLE SEPARATOR | ||
| 683 | A 3449978790 | CLAMP |
| 683 | N 916017050000 | CLAMP |
| Repalced by: N 000000000672 | ||
| 683 | N 000000000672 | CLAMP |
| 686 | A 3645017225 | BREATHER PIPE |
| 686 | A 3645017225 | BREATHER PIPE |
| 687 | A 3645017925 | BREATHER PIPE |
| 689 | A 3449970482 | HOSE |
| DE-AERATION PIPE TO TANK | ||
| 692 | A 3449978390 | LOOM TIE |
| DE-AERATION PIPE TO TANK | ||
| 692 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 692 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 692 | N 000000000666 | CLAMP |
| DE-AERATION PIPE TO TANK | ||
| 695 | A 3645017120 | BRACKET |
| 698 | N 916016008200 | CLAMP |
| OVERFLOW | ||
| 701 | N 007985006515 | SCREW |
| OVERFLOW | ||
| 704 | N 000127006203 | LOCK WASHER |
| OVERFLOW | ||
| 707 | N 000125006420 | WASHER |
| OVERFLOW | ||
| 710 | N 000934006006 | NUT |
| OVERFLOW | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
