Transporto priemonė: O 364,365; VIN numerio dalis: 364111

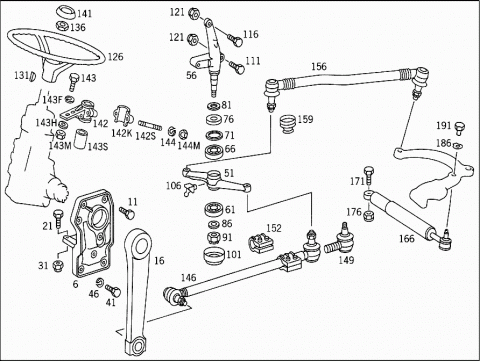

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 766 | ||
| 006 | A 3444610240 | STEERING SUPPORT |
| 011 | N 000961016085 | SCREW |
| 016 | A 3644637001 | PITMAN ARM |
| 021 | N 000961014107 | SCREW |
| STEERING BRACKET TO FRAME | ||
| N 000960014179 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| 031 | N 000979014001 | NUT |
| STEERING BRACKET TO FRAME | ||
| N 000094003222 | COTTER PIN | |
| STEERING BRACKET TO FRAME | ||
| 041 | N 000961014106 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 046 | N 000127014201 | LOCK WASHER |
| STEERING BRACKET TO FRAME | ||
| 051 | A 3644630010 | STEERING INTERMEDIATE ARM |
| 056 | A 3644630038 | BEARING BRACKET |
| 061 | N 000720033205 | TAPERED ROLLER BEARING |
| 061 | A 0039811005 | TAPERED ROLLER BEARING |
| 061 | A 0039811505 | TAPERED ROLLER BEARING |
| 061 | A 0039819505 | TAPERED ROLLER BEARING |
| 066 | N 000720032206 | TAPERED ROLLER BEARING |
| Repalced by: A 0019816505 | ||
| 066 | A 0019816505 | TAPERED ROLLER BEARING |
| 071 | A 3174630052 | SPACER WASHER |
| 076 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 076 | A 0079976446 | SEAL RING |
| 081 | A 3214630252 | SPACER WASHER |
| 086 | A 3174630062 | THRUST WASHER |
| 091 | N 000937020000 | NUT |
| N 000094004065 | COTTER PIN | |
| 101 | A 3214630033 | CAP |
| 106 | N 071412010200 | GREASE NIPPLE |
| 111 | N 000960014246 | SCREW |
| INTERMEDIATE LEVER TO SUBSTRUCTURE | ||
| 116 | N 000960014207 | SCREW |
| INTERMEDIATE LEVER TO SUBSTRUCTURE | ||
| 121 | N 913004014002 | NUT |
| INTERMEDIATE LEVER TO SUBSTRUCTURE | ||
| A 3444630042 | STOP | |
| INTERMEDIATE LEVER | ||
| N 000961014105 | SCREW | |
| STOP TO FRAME,BOTTOM | ||
| 126 | A 3454600203 | STEERING WHEEL |
| Repalced by: A 3644607203 | ||
| 126 | A 3644607203 | STEERING WHEEL |
| 131 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 136 | N 000439022203 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| A 0004641231 | CAP | |
| Repalced by: A 3454647131 | ||
| A 3454647131 | CAP | |
| TO 345 460 02 03 | ||
| 141 | A 3644647032 | BADGE |
| TO 364 460 72 03 | ||
| 142 | A 3444620121 | STEERING COLUMN BRACKET |
| 142K | A 3214620022 | CLAMPING PIECE |
| 142S | N 000835008049 | STUD |
| 143 | N 000933008288 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| 143F | N 912004008100 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 143H | N 000125008417 | WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 143M | N 000934008010 | NUT |
| STEERING COLUMN BRACKET TO CAB | ||
| 143S | A 0009975282 | HOSE |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 144 | N 912004008001 | LOCK WASHER |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 144M | N 000917008005 | NUT |
| STEERING COLUMN BRACKET TO STEERING COLUMN | ||
| 146 | A 3644607005 | DRAG LINK |
| FRONT | ||
| A 3644607105 | DRAG LINK | |
| FRONT | ||
| 149 | A 3503307035 | JOINT |
| 152 | A 3503387045 | CLAMP |
| A 3503387097 | BOOT | |
| A 3503387058 | SEAL HOLDER | |
| 156 | A 3444607005 | DRAG LINK |
| REAR | ||
| A 3643307135 | JOINT | |
| 159 | A 3643307085 | BOOT |
| A 3643387082 | RUBBER RING | |
| Repalced by: A 0003381463 | ||
| A 3444607405 | DRAG LINK | |
| REAR | ||
| 166 | A 3444607166 | SHOCK ABSORBER |
| 166 | A 3444607066 | SHOCK ABSORBER |
| MONROE | ||
| A 0004630865 | RUBBER RING | |
| A 0004630850 | BUSHING | |
| 171 | N 000960014244 | SCREW |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 176 | N 000979014001 | NUT |
| SHOCK ABSORBER TO FRONT AXLE | ||
| N 000094003222 | COTTER PIN | |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 186 | N 000093021001 | LOCK PLATE |
| SHOCK ABSORBER TO STEERING ARM | ||
| 191 | A 3444630072 | NUT |
| SHOCK ABSORBER TO STEERING ARM | ||

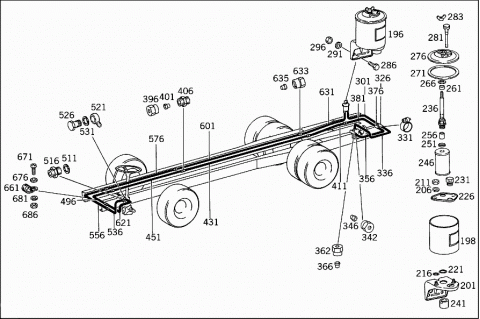

| 196 | A 0004662802 | TANK |
| Repalced by: A 3644667002 | ||
| 196 | A 3644667002 | TANK |
| 198 | A 0004660103 | HOUSING |
| 201 | A 0004660040 | BRACKET |
| Repalced by: A 0004660640 | ||
| 201 | A 0004660640 | BRACKET |
| 206 | N 000127008205 | LOCK WASHER |
| 211 | N 000934008035 | NUT |
| 216 | A 0029973345 | SEAL RING |
| Repalced by: A 0099970145 | ||
| 216 | A 0099970145 | SEAL RING |
| 221 | A 0029973245 | SEAL RING |
| Repalced by: A 0059970848 | ||
| 221 | A 0059970848 | SEAL RING |
| 226 | A 0004660037 | REINFORCEMENT |
| Repalced by: A 0004660095 | ||
| 226 | A 0004660095 | STRUT |
| 231 | A 0009976872 | FITTING |
| Repalced by: A 0004660571 | ||
| 231 | A 0004660571 | FITTING |
| 236 | A 0014664465 | FILTER CARRIER |
| Repalced by: A 0004610065 | ||
| 236 | A 0004610065 | FILTER SUPPORT |
| 241 | A 3454667072 | NUT |
| Repalced by: A 0004660458 | ||
| 241 | A 0004660458 | CONNECTOR |
| 246 | A 0004660204 | FILTER |
| Repalced by: A 0001842225 | ||
| 246 | A 0001842225 | FILTER ELEMENT |
| 251 | A 0004660675 | CENTERING RING |
| 256 | A 0009870643 | RUBBER SLEEVE |
| 261 | A 0004660153 | SPACER TUBE |
| 266 | A 0004660275 | WASHER |
| 271 | A 0004660260 | SEAL RING |
| 276 | A 0004661305 | COVER |
| Repalced by: A 0004664405 | ||
| 276 | A 0004664405 | COVER |
| 281 | A 0004660067 | OIL DIPSTICK |
| 283 | N 000315008003 | NUT |
| Repalced by: A 0009901462 | ||
| 283 | A 0009901462 | NUT |
| Repalced by: A 0009901562 | ||
| 283 | A 0009901562 | NUT |
| Repalced by: A 0009901662 | ||
| 283 | A 0009901662 | NUT |
| A 3644667040 | BRACKET | |
| OIL TANK TO SUBSTRUCTURE | ||
| 286 | N 000933010294 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| 286 | N 000933010294 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| 291 | N 000127010202 | LOCK WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 291 | N 000127010202 | LOCK WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 296 | N 000934010000 | NUT |
| OIL TANK TO SUBSTRUCTURE | ||
| 296 | N 000934010000 | NUT |
| OIL TANK TO SUBSTRUCTURE | ||
| 301 | A 3644608724 | LINE |
| FROM OIL TANK TO HOSE | ||
| 301 | A 3644608724 | LINE |
| FROM OIL TANK TO HOSE | ||
| A 3644609724 | LINE | |
| FROM OIL TANK TO HOSE | ||
| A 3644609024 | LINE | |
| FROM OIL TANK TO HOSE | ||
| A 3644608924 | LINE | |
| FROM OIL TANK TO HOSE | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| A 3649977682 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| 326 | A 3649977182 | HOSE |
| FROM OIL TANK TO PUMP | ||
| A 3649977582 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| A 3649977582 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| A 3649978082 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| A 3649977782 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| A 3649977782 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| A 3649977982 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| 331 | A 3509978990 | LOOM TIE |
| HOSE TO OIL LINE | ||
| 336 | A 3644609024 | LINE |
| FROM HOSE TO PUMP | ||
| A 3644608724 | LINE | |
| FROM HOSE TO PUMP | ||
| A 3644608724 | LINE | |
| FROM HOSE TO PUMP | ||
| A 3644609724 | LINE | |
| FROM HOSE TO PUMP | ||
| A 3644608924 | LINE | |
| FROM HOSE TO PUMP | ||
| 342 | N 915017022100 | UNION NUT |
| 346 | N 003861022004 | GLAND |
| 356 | A 3644607924 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| A 3644607824 | LINE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| A 3644607624 | LINE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| A 3644608024 | LINE | |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 15X1.5 MM | ||
| 362 | N 915017015100 | UNION NUT |
| 366 | N 003861015004 | GLAND |
| 376 | A 3059971682 | HOSE |
| Repalced by: A 3649978282 | ||
| 376 | A 3649978282 | HOSE |
| 376 | A 3059971082 | HOSE |
| 376 | A 0139971182 | HOSE |
| A 3079970682 | HOSE | |
| 381 | A 3644607224 | LINE |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 15X1.5 MM | ||
| A 3644609324 | LINE | |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 15X1.5 MM | ||
| A 3644607324 | LINE | |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 15X1.5 MM | ||
| A 3644607524 | LINE | |
| FROM HIGH PRESSURE HOSE TO CONNECTION FITTING | ||
| 15X1.5 MM | ||
| 396 | N 915017015100 | UNION NUT |
| 401 | N 003861015004 | GLAND |
| 406 | N 003902015001 | CONNECTION FITTING |
| 411 | A 3214602224 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| A 3644609424 | LINE | |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 15X1.5 MM | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| 431 | A 3444601424 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 15X1.5 MM | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 003902015001 | CONNECTION FITTING | |
| 451 | A 3644607124 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 15X1.5 MM | ||
| A 3644607424 | LINE | |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 15X1.5 MM | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 003902015001 | CONNECTION FITTING | |
| 496 | A 3644607024 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 15X1.5 MM | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| 511 | A 3219970840 | SEAL RING |
| HIGH PRESSURE LINE TO STEERING | ||
| 516 | N 003901015002 | SCREW-IN FITTING |
| HIGH PRESSURE LINE TO STEERING | ||
| 521 | N 915009020000 | BANJO UNION |
| LOW PRESSURE LINE TO STEERING | ||
| 526 | N 915011020102 | HOLLOW SCREW |
| LOW PRESSURE LINE TO STEERING | ||
| 531 | N 007603026104 | SEAL RING |
| LOW PRESSURE LINE TO STEERING | ||
| 536 | A 3644608124 | LINE |
| FROM CONNECTION FITTING TO STEERING | ||
| 22X1.5 MM | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| N 915001020002 | UNION NUT | |
| N 003902022001 | CONNECTION FITTING | |
| 556 | A 3644608224 | LINE |
| FROM FITTING I TO CONNECTION FITTING II | ||
| 22X1.5 MM | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| N 003902022001 | CONNECTION FITTING | |
| 576 | A 3444601924 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 22X1.5 MM | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| N 003902022001 | CONNECTION FITTING | |
| 601 | A 3214602924 | LINE |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 22X1.5 MM | ||
| A 3644609624 | LINE | |
| FROM CONNECTION FITTING III TO CONNECTION FITTING IV | ||
| 22X1.5 MM | ||
| N 915017022100 | UNION NUT | |
| N 003861022004 | GLAND | |
| N 003902022001 | CONNECTION FITTING | |
| 621 | A 3644608324 | LINE |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| A 3644608524 | LINE | |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 22X1.5 MM | ||
| A 3644609524 | LINE | |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 22X1.5 MM | ||
| A 3644608624 | LINE | |
| FROM CONNECTION FITTING IV TO CONNECTION FITTING V | ||
| 22X1.5 MM | ||
| 631 | A 3644608424 | LINE |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 22X1.5 MM | ||
| A 3644609124 | LINE | |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 22X1.5 MM | ||
| A 3644608824 | LINE | |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 22X1.5 MM | ||
| A 3644609224 | LINE | |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 22X1.5 MM | ||
| A 3644608324 | LINE | |
| FROM CONNECTION FITTING V TO OIL TANK | ||
| 22X1.5 MM | ||
| 633 | N 915017022100 | UNION NUT |
| 635 | N 003861022004 | GLAND |
| A 3524290740 | BRACKET | |
| LINE TO SUBSTRUCTURE | ||
| N 000933008282 | SCREW | |
| LINE TO SUBSTRUCTURE | ||
| N 912004008100 | LOCK WASHER | |
| LINE TO SUBSTRUCTURE | ||
| N 000934008000 | NUT | |
| LINE TO SUBSTRUCTURE | ||
| 661 | N 916016015202 | CLAMP |
| LINE TO SUBSTRUCTURE | ||
| N 916016022203 | CLAMP | |
| LINE TO SUBSTRUCTURE | ||
| 671 | N 007985006502 | SCREW |
| LINE TO SUBSTRUCTURE | ||
| 676 | N 000125006420 | WASHER |
| LINE TO SUBSTRUCTURE | ||
| 681 | N 912004006100 | LOCK WASHER |
| LINE TO SUBSTRUCTURE | ||
| 686 | N 000934006006 | NUT |
| LINE TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
