Transporto priemonė: O 364; VIN numerio dalis: 364152

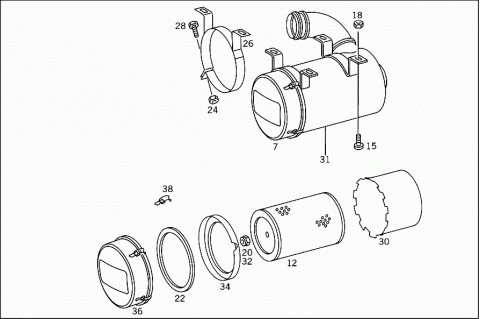

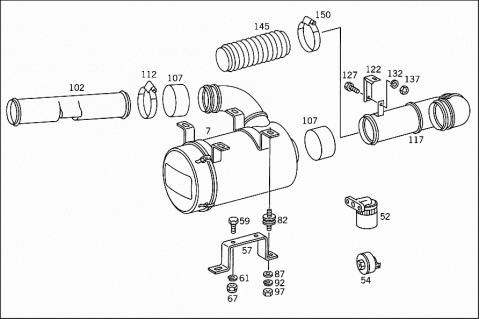

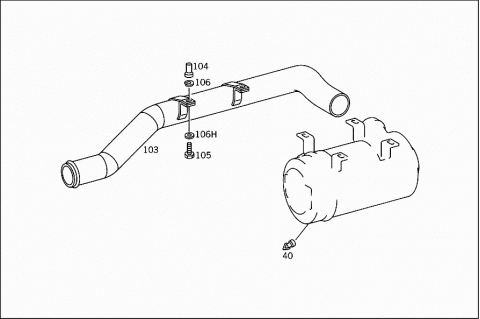

Grupė: 52 AIR CLEANER - 001 SHEET METAL,AIR INTAKE

#	Kodas	Pavadinimas
007	A 3640907101	AIR CLEANER
	Repalced by: A 3640908701
007	A 3640908701	AIR CLEANER
007	A 3640908301	AIR CLEANER
	Repalced by: A 3640908601
007	A 3640908601	AIR CLEANER
012	A 3440947104	FILTER ELEMENT
		TO 364 090 83 01,364 090 86 01
012	A 3440947104	FILTER ELEMENT
		TO 364 090 83 01,364 090 86 01
012	A 0010945204	FILTER ELEMENT
		TO 364 090 71 01,364 090 87 01
015	N 000084008172	SCREW
		TO 364 090 87 01,364 090 71 01
018	A 1109900052	NUT
		TO 364 090 87 01,364 090 71 01
020	A 0000940472	NUT
		FILTER ELEMENT
		TO 364 090 83 01,364 090 86 01
022	A 0000946011	SCOOP
		TO 364 090 83 01
024	A 0000940572	NUT
		TO 364 090 83 01,364 090 86 01
026	A 0000948442	CLAMP
		TO 364 090 83 01
	A 0000944842	CLAMP
		TO 364 090 86 01
028	A 0000942171	SCREW
		TO 364 090 83 01,364 090 86 01
030	A 0000941905	CYCLONE PRE-FILTER BOWL
		TO 364 090 83 01,364 090 86 01
031	A 3440947003	FILTER BOWL
		CYCLONE
		TO 364 090 87 01,364 090 71 01
032	N 913002008001	NUT
		TO 364 090 87 01,364 090 71 01
034	H 983440940010	BOTTOM PARTITION
		TO 364 090 71 01
036	A 3440947006	COVER
		TO 364 090 71 01
	A 0000948203	FILTER BOWL
		AIR CLEANER BOWL
		TO 364 090 86 01
038	A 0010940055	FASTENER
		TO 364 090 87 01,364 090 71 01
040	A 3760947165	VALVE
		TO 364 090 87 01
	A 0000941405	SEPARATOR
		TO 364 090 86 01
	A 0010948080	GASKET
	A 0000940173	LOCK
		TO 364 090 86 01
	A 0000941360	SEAL RING
		TO 364 090 86 01
	A 0000940375	NUT
		AIR CLEANER BOWL
		TO 364 090 86 01
052	A 3450947068	VACUUM BOX
	A 3450947268	VACUUM BOX
	Repalced by: A 0000940368
	A 0000940368	VACUUM BOX
	Repalced by: A 3645407045
054	A 3645407045	SWITCH
	Repalced by: A 6885407645
054	A 6885407645	SWITCH
057	A 3645287040	BRACKET
		ENGINE COVERING
059	N 000933008228	SCREW
		BRACKET TO ENGINE COMPARTMENT COVERING
061	N 912004008100	LOCK WASHER
		BRACKET TO ENGINE COMPARTMENT COVERING
067	N 913004008001	NUT
		BRACKET TO ENGINE COMPARTMENT COVERING
082	A 3445280185	RUBBER MOUNTING
087	N 009021010102	WASHER
		RUBBER MOUNTING TO AIR CLEANER
092	N 000127010202	LOCK WASHER
		RUBBER MOUNTING TO AIR CLEANER
097	N 000934010000	NUT
		RUBBER MOUNTING TO AIR CLEANER
102	A 3645287708	AIR INTAKE PIPE
102	A 3645287408	AIR INTAKE PIPE
103	A 3645287608	AIR INTAKE PIPE
	Repalced by: A 3645287408
	A 3645287808	AIR INTAKE PIPE
	Repalced by: A 3645287408
104	N 913010006107	RIVETED NUT
		AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING
105	N 000933006221	SCREW
		AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING
106	N 000127006203	LOCK WASHER
		AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING
106H	N 000125006420	WASHER
		AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING
107	N 900271100013	HOSE
		FROM AIR CLEANER TO AIR INTAKE PIPE
		80 MM
112	A 3449979990	CLAMP
		FROM AIR CLEANER TO AIR INTAKE PIPE
117	A 3645207101	AIR INTAKE PIPE
122	A 3645287340	BRACKET
		AIR INTAKE PIPE
127	N 000933008228	SCREW
		AIR INTAKE PIPE
132	N 912004008100	LOCK WASHER
		AIR INTAKE PIPE
137	N 000934008000	NUT
		AIR INTAKE PIPE
145	A 3449977982	HOSE
		AIR INTAKE PIPE TO INTAKE MANIFOLD
	A 3640947182	HOSE
145	A 3450947082	HOSE
		AIR INTAKE PIPE TO INTAKE MANIFOLD
150	A 3449979890	CLAMP
		AIR INTAKE PIPE TO INTAKE MANIFOLD
