Transporto priemonė: O 364; VIN numerio dalis: 364173
Grupė: 54 ELEKTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

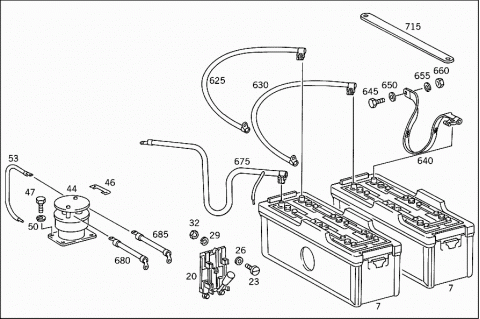

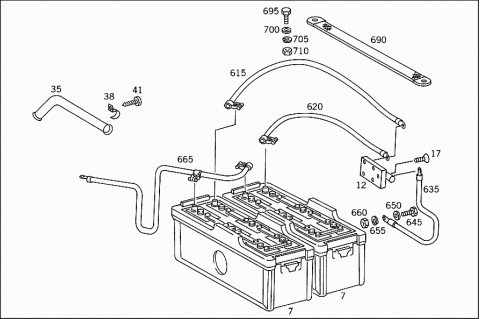

| 007 | A 0005418101 | BATTERY |
| LESS ACID | ||
| 12V-135AH | ||

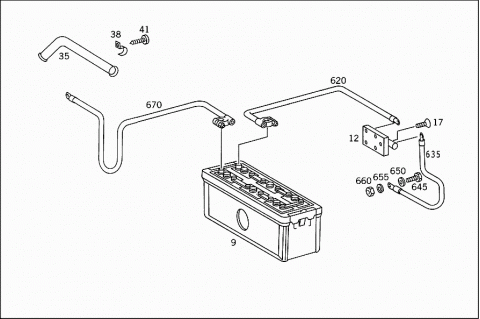

| 009 | A 3645410001 | BATTERY |
| LESS ACID | ||
| 180AH | ||
| 012 | A 3215450008 | SWITCH |
| BATTERY CUT-OFF | ||
| 017 | N 000963008003 | SCREW |
| SWITCH TO BRACKET | ||
| 020 | A 3645407078 | STARTER SWITCH |
| (BATTERY MASTER SWITCH) | ||
| 023 | N 000085006151 | SCREW |
| SWITCH TO SUBSTRUCTURE | ||
| 026 | N 000125006420 | WASHER |
| SWITCH TO SUBSTRUCTURE | ||
| 029 | N 000127006203 | LOCK WASHER |
| SWITCH TO SUBSTRUCTURE | ||
| 032 | N 000934006006 | NUT |
| SWITCH TO SUBSTRUCTURE | ||
| 035 | A 3645467085 | PROTECTIVE TUBE |
| 038 | A 3449957020 | CLAMP |
| CABLE CONDUIT | ||
| 041 | N 007971005209 | SHEET METAL SCREW |
| CABLE CONDUIT | ||
| 044 | A 0005454208 | SWITCH |
| Repalced by: A 3455457108 | ||
| 044 | A 3455457108 | SWITCH |
| A 0005451934 | FUSE | |
| Repalced by: A 3455457634 | ||
| 046 | A 3455457634 | FUSE |
| 047 | N 000933008048 | SCREW |
| STARTING CHANGE-OVER | ||
| 050 | N 912004008100 | LOCK WASHER |
| STARTING CHANGE-OVER | ||
| 053 | A 3445400139 | ELECTRIC CABLE |
| FROM STARTING CHANGE-OVER SWITCH TO GROUND | ||

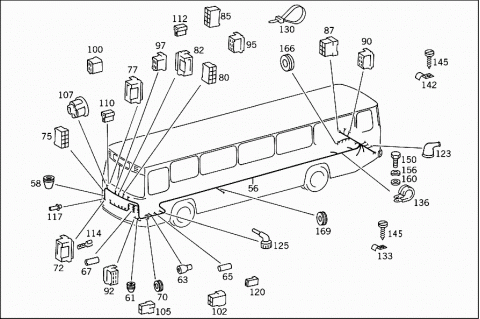

| 056 | A 3645407005 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645409106 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645407105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645409206 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645407205 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645407305 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 056 | A 3645407405 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 058 | A 3219970081 | GROMMET |
| PASSAGE OF MAIN CABLE HARNESS | ||
| 061 | A 1869970481 | GROMMET |
| HEADLAMP | ||
| 063 | A 3449977181 | GROMMET |
| HORN | ||
| 065 | A 0009970381 | GROMMET |
| 067 | A 0009970581 | GROMMET |
| 070 | A 3129970881 | GROMMET |
| PASSAGE OF MAIN CABLE HARNESS | ||
| 072 | A 0015452928 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 075 | A 0015458928 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 077 | A 0015457128 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 080 | A 0035455128 | PLUG |
| 8-POLE | ||
| 082 | A 0015453028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 085 | A 0035457528 | PLUG |
| 8-POLE | ||
| 087 | A 0035455228 | PLUG |
| 6-POLE | ||
| 090 | A 0025459828 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 092 | A 0055457028 | PLUG |
| 6-POLE | ||
| 095 | A 0035453128 | PLUG |
| 6-POLE | ||
| 097 | A 0035459528 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 100 | A 0055452428 | PLUG |
| 4-POLE | ||
| 102 | A 3445457228 | PLUG |
| 4-POLE | ||
| A 0015451028 | PIN BUSHING HOUSING | |
| Repalced by: A 0015458728 | ||
| 105 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 105 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 105 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 107 | A 3445457128 | PIN BUSHING HOUSING |
| WIPER MOTOR | ||
| 110 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 110 | A 0385452528 | PLUG |
| FROM ALTERNATOR TO REGULATOR | ||
| 112 | A 0025458428 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 114 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 114 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 114 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 114 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| -2,5MM2 | ||
| 114 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| -2,5MM2 | ||
| 114 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| -2,5MM2 | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 114 | A 0005453726 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| -2,5MM2 | ||
| 114 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 117 | A 0005440156 | CONTACT PIECE |
| 120 | A 0005451745 | BOOT |
| 123 | A 0005460035 | BOOT |
| ALTERNATOR | ||
| 125 | A 0005400181 | PLUG SOCKET |
| HAND BRAKE SWITCH | ||
| 125 | A 0005400181 | PLUG SOCKET |
| BACK-UP LIGHT SWITCH | ||
| A 3645457301 | FUSE BOX | |
| A 3645457301 | FUSE BOX | |
| N 900271038009 | HOSE | |
| A 3459977690 | LOOM TIE | |
| CABLE HARNESS MOUNTING | ||
| 130 | A 3459977490 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 130 | A 3459977290 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 130 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 130 | A 3459977390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 133 | A 3129950235 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 133 | N 072571001022 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 133 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 133 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| A 3129952120 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 136 | N 916016018201 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 142 | N 072571001023 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 142 | N 072571001026 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 142 | N 072571001024 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 145 | N 007971004202 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 145 | N 007971005209 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 150 | N 000933005034 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 156 | N 000137005101 | SPRING WASHER |
| CABLE HARNESS MOUNTING | ||
| 160 | N 009021005104 | WASHER |
| CABLE HARNESS MOUNTING | ||
| A 0009972181 | GROMMET | |
| Repalced by: A 0009972281 | ||
| 166 | A 0009972281 | GROMMET |
| CABLE HARNESS MOUNTING | ||
| 169 | A 0009972881 | GROMMET |
| CABLE HARNESS MOUNTING | ||

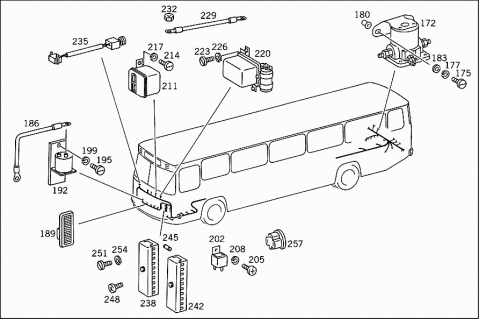

| 172 | A 3455450005 | RELAY |
| STARTING | ||
| 175 | N 000084006137 | SCREW |
| RELAY TO SUBSTRUCTURE | ||
| 177 | N 000127006203 | LOCK WASHER |
| RELAY TO SUBSTRUCTURE | ||
| 180 | N 913010006107 | RIVETED NUT |
| RELAY TO SUBSTRUCTURE | ||
| 183 | N 000125006420 | WASHER |
| RELAY TO SUBSTRUCTURE | ||
| 186 | A 3215401639 | ELECTRIC CABLE |
| FROM RELAY TO FUSE AND TO GROUND | ||
| 189 | A 3455427023 | BUZZER |
| AUDIBLE WARNER USED FOR COMPRESSED AIR AND OIL PRESSURE | ||
| 192 | A 3445427019 | RELAY |
| CONTACTOR | ||
| 192 | A 3645427019 | RELAY |
| CONTACTOR | ||
| 195 | N 000084004108 | SCREW |
| CONTACTOR TO SUBSTRUCTURE | ||
| 199 | N 912004004102 | LOCK WASHER |
| CONTACTOR TO SUBSTRUCTURE | ||
| 202 | A 3445427119 | RELAY |
| HEADLAMP | ||
| 202 | A 3455427019 | RELAY |
| HEADLAMP | ||
| 205 | N 007985005183 | SCREW |
| RELAY | ||
| 208 | N 000127005001 | LOCK WASHER |
| RELAY | ||
| 211 | A 3445447232 | SENDER UNIT |
| BLINKER | ||
| 211 | A 3085447132 | SENDER UNIT |
| Repalced by: A 3645447232 | ||
| 211 | A 3645447232 | SENDER UNIT |
| BLINKER | ||
| 214 | N 000084006134 | SCREW |
| BLINKER SENDER UNIT TO SUBSTRUCTURE | ||
| 217 | N 000127006203 | LOCK WASHER |
| BLINKER SENDER UNIT TO SUBSTRUCTURE | ||
| 220 | A 0015421019 | RELAY |
| DECLUTCHING START UNIT | ||
| 223 | N 007985006515 | SCREW |
| RELAY TO SUBSTRUCTURE | ||
| 226 | N 000127006203 | LOCK WASHER |
| RELAY TO SUBSTRUCTURE | ||
| 229 | A 3215401639 | ELECTRIC CABLE |
| 232 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 235 | A 3455457224 | SWITCH,AUTOMATIC |
| (HAZARD WARNING LIGHT SWITCH) | ||
| A 3215450101 | FUSE BOX | |
| Repalced by: A 3645457901 | ||
| 238 | A 3645457901 | FUSE BOX |
| 10-POLE | ||
| 242 | A 3645457001 | FUSE BOX |
| 10-POLE | ||
| 245 | A 3085450334 | FUSE |
| 15 A | ||
| 245 | A 3085450234 | FUSE |
| 8 A | ||
| 245 | A 3085450534 | FUSE |
| 40 A | ||
| 245 | A 3645457034 | FUSE |
| Repalced by: A 3455457134 | ||
| 245 | A 3455457134 | FUSE |
| 5 A | ||
| 248 | N 914028004100 | COMBINATION BOLT |
| 251 | N 007985005171 | SCREW |
| FUSE BOX TO SUBSTRUCTURE | ||
| 254 | N 000127005001 | LOCK WASHER |
| FUSE BOX TO SUBSTRUCTURE | ||
| 257 | A 3445447060 | PLUG SOCKET HOUSING |
| 257 | A 0005440986 | SOCKET |

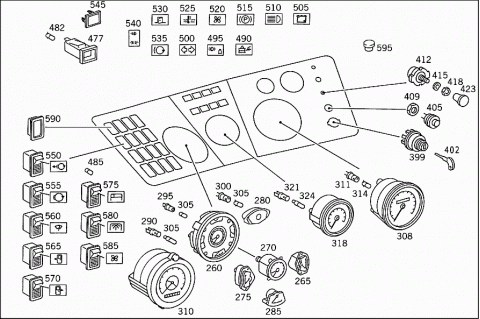

| 260 | A 3455407547 | INSTRUMENT CLUSTER |
| 260 | A 3455407147 | INSTRUMENT CLUSTER |
| 260 | A 3455409247 | INSTRUMENT CLUSTER |
| VDO | ||
| 265 | H 983455420005 | TEMPERATURE GAUGE |
| TO 345 540 75 47 | ||
| 265 | A 0035427005 | TEMPERATURE GAUGE |
| TO 345 540 92 47 | ||
| 265 | A 3455427005 | TEMPERATURE GAUGE |
| TO 345 540 71 47 | ||
| 270 | A 3445427108 | AIR PRESSURE GAUGE |
| TO 345 540 75 47 | ||
| 270 | A 0015421908 | AIR PRESSURE GAUGE |
| TO 345 540 92 47 | ||
| 270 | A 3455427008 | AIR PRESSURE GAUGE |
| TO 345 540 71 47 | ||
| 275 | H 983455420003 | FUEL GAUGE DASH UNIT |
| TO 345 540 75 47 | ||
| 275 | A 0025428203 | FUEL GAUGE DASH UNIT |
| TO 345 540 92 47 | ||
| 275 | A 3455427003 | FUEL GAUGE DASH UNIT |
| TO 345 540 71 47 | ||
| 280 | H 983455420032 | OIL PRESSURE GAUGE |
| 285 | H 983455420002 | OIL PRESSURE GAUGE |
| 290 | A 3455440093 | LAMP SOCKET |
| INSTRUMENT CLUSTER | ||
| TO 345 540 75 47 | ||
| 295 | A 3455440193 | LAMP SOCKET |
| INSTRUMENT CLUSTER | ||
| TO 345 540 71 47 | ||
| 300 | A 0005400366 | SOCKET |
| INSTRUMENT CLUSTER | ||
| TO 345 540 92 47 | ||
| 305 | N 072601012800 | BULB |
| 308 | A 3445427106 | SPEEDOMETER |
| HORASA | ||
| 308 | A 3455427606 | SPEEDOMETER |
| HORASA | ||
| 308 | A 3455427606 | SPEEDOMETER |
| HORASA | ||
| 308 | A 3455427206 | SPEEDOMETER |
| VDO | ||
| 308 | A 3455427206 | SPEEDOMETER |
| VDO | ||
| 310 | A 3445427110 | TACHOGRAPH |
| VDO | ||
| 311 | A 3455440093 | LAMP SOCKET |
| 314 | N 072601012800 | BULB |
| 12V 2W | ||
| A 3445427094 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| 318 | A 3455420116 | TACHOMETER |
| 318 | A 3455427616 | TACHOMETER |
| HORASA | ||
| 318 | A 3455427416 | TACHOMETER |
| VDO | ||
| 318 | A 3455420016 | TACHOMETER |
| 318 | A 3455427516 | TACHOMETER |
| HORASA | ||
| 318 | A 3455427316 | TACHOMETER |
| VDO | ||
| 321 | A 3455440093 | LAMP SOCKET |
| 324 | N 072601012800 | BULB |
| 12V 2W | ||
| 327 | A 3455420017 | SENDER UNIT |
| TACHOMETER | ||
| A 0015422317 | SENDER UNIT | |
| Repalced by: A 3455427717 | ||
| 331 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 331 | A 0025425917 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 331 | A 3455427517 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 331 | A 3455427417 | SENDER UNIT |
| TEMPERATURE GAUGE | ||

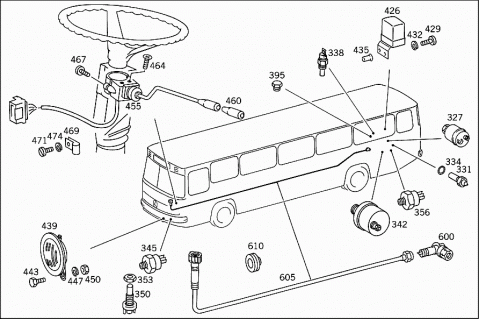

| 334 | N 007603014402 | SEAL RING |
| TEMPERATURE GAUGE | ||
| 338 | A 0025456324 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| 338 | A 3455458224 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| 338 | A 3455457324 | SWITCH,AUTOMATIC |
| Repalced by: A 3455457824 | ||
| 338 | A 3455457824 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE | ||
| A 0015426917 | SENDER UNIT | |
| Repalced by: A 0015427017 | ||
| 342 | A 0015427017 | SENDER UNIT |
| OIL PRESSURE | ||
| 342 | A 3455427117 | SENDER UNIT |
| OIL PRESSURE | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP 42,FIG.NO.: | ||
| 918 | ||
| A 3215450009 | SWITCH | |
| Repalced by: A 3455457209 | ||
| 345 | A 3455457209 | SWITCH |
| STOP LIGHT | ||
| 345 | A 3455457209 | SWITCH |
| STOP LIGHT | ||
| 350 | A 3085457009 | SWITCH |
| STOP LIGHT | ||
| 353 | A 0009909251 | NUT |
| STOP LIGHT SWITCH TO PEDAL BEARING BRACKET | ||
| 356 | A 3445450106 | SWITCH |
| Repalced by: A 3455457006 | ||
| 356 | A 0005455011 | SWITCH |
| Repalced by: A 3455457006 | ||
| 356 | A 3455457006 | SWITCH |
| BACK-UP LIGHT | ||
| 395 | A 1369970830 | SCREW PLUG |
| COVER TO TRANSMISSION | ||
| 399 | A 0005451213 | SWITCH BOX |
| 399 | A 3455457013 | SWITCH BOX |
| 402 | A 0005451235 | KEY |
| 402 | A 3455457035 | KEY |
| 402 | A 3455457135 | KEY |
| 405 | A 3215450114 | SWITCH |
| STARTING MOTOR | ||
| 405 | A 3455457314 | SWITCH |
| STARTING MOTOR | ||
| 409 | A 0089901451 | NUT |
| 412 | A 0005422125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 412 | A 0005422125 | POTENTIOMETER |
| SWITCH LIGHTING | ||
| 415 | N 900055010001 | SPRING WASHER |
| POTENTIOMETER | ||
| 418 | A 0005450372 | NUT |
| POTENTIOMETER | ||
| 423 | A 0005421189 | KNOB |
| POTENTIOMETER | ||
| A 0011548406 | REGULATOR AND CUT-OUT | |
| Repalced by: A 3455477002 | ||
| A 3455477002 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021545006 | ||
| A 0021545006 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021546206 | ||
| 426 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 429 | N 000084006137 | SCREW |
| REGULATOR AND CUT-OUT TO BODY | ||
| 432 | N 000127006203 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO BODY | ||
| 435 | N 913010006107 | RIVETED NUT |
| REGULATOR AND CUT-OUT TO BODY | ||
| 439 | A 3445427120 | HORN |
| 439 | A 3445427520 | HORN |
| 439 | A 3445427720 | HORN |
| 439 | A 3445427220 | HORN |
| 439 | A 3445427420 | HORN |
| 439 | A 3645427020 | HORN |
| 443 | N 000933010174 | SCREW |
| HORN MOUNTING | ||
| 447 | N 000127010202 | LOCK WASHER |
| HORN MOUNTING | ||
| 450 | N 000934010000 | NUT |
| HORN MOUNTING | ||
| 455 | A 3645457024 | SWITCH,AUTOMATIC |
| Repalced by: A 3645457224 | ||
| 455 | A 3645457224 | SWITCH,AUTOMATIC |
| BLINKER | ||
| 460 | A 0005452637 | BUTTON |
| TO 003 545 81 24 | ||
| 464 | N 000091004141 | SCREW |
| TO 003 545 81 24 | ||
| 467 | N 000965005122 | SCREW |
| TO 003 545 81 24 | ||
| 469 | A 3219950421 | CLAMP |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| 471 | N 007985005183 | SCREW |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| 474 | N 000127005001 | LOCK WASHER |
| ELECTRIC CABLE TO KICK-DOWN SWITCH | ||
| 477 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 3455457015 | ||
| 477 | A 3455457015 | TELL-TALE LAMP |
| LESS LENS | ||
| 482 | N 072601012800 | BULB |
| BLINKER CONTROL | ||
| 482 | N 072601012900 | BULB |
| 485 | N 072601012230 | BULB |
| Repalced by: A 6885447093 | ||
| 485 | A 6885447093 | LAMP SOCKET |
| PUSHBUTTON SWITCH | ||
| 490 | A 0005452590 | LENS |
| FAILURE | ||
| 490 | A 0025452790 | LENS |
| FAILURE | ||
| 490 | A 3455458990 | LENS |
| FAILURE | ||
| 495 | A 0005452290 | LENS |
| BRAKE FLUID | ||
| 495 | A 3455458290 | LENS |
| BRAKE FLUID | ||
| 500 | A 0005451290 | LENS |
| BLINKER LIGHT | ||
| 500 | A 0035452190 | LENS |
| BLINKER LIGHT | ||
| 500 | A 3765457490 | LENS |
| BLINKER LIGHT | ||
| 505 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 505 | A 0035452490 | LENS |
| CHARGE CONTROL | ||
| 505 | A 3765457190 | LENS |
| CHARGE CONTROL | ||
| 510 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 510 | A 0035452990 | LENS |
| HIGH BEAM | ||
| 510 | A 3765457390 | LENS |
| HIGH BEAM | ||
| 515 | A 3455450090 | LENS |
| PARKING BRAKE | ||
| 515 | A 0045456290 | LENS |
| PARKING BRAKE | ||
| 515 | A 3455458090 | LENS |
| PARKING BRAKE | ||
| 520 | A 0005452490 | LENS |
| FAN | ||
| 520 | A 0045456790 | LENS |
| FAN | ||
| 520 | A 3455458190 | LENS |
| FAN | ||
| 525 | A 3215457090 | LENS |
| COOLING WATER TEMPERATURE | ||
| 525 | A 0045456590 | LENS |
| COOLING WATER TEMPERATURE | ||
| 525 | A 3455457990 | LENS |
| COOLING WATER TEMPERATURE | ||
| 530 | A 3645457090 | LENS |
| REAR DOOR | ||
| 535 | A 3085457090 | LENS |
| EXHAUST BRAKE | ||
| 540 | A 3645457390 | LENS |
| EXTERIOR LIGHTING | ||
| 545 | A 3089970035 | PLUG |
| 545 | A 0009973535 | PLUG |
| A 3595457214 | SWITCH | |
| Repalced by: A 3645458314 | ||
| 550 | A 3505458014 | SWITCH |
| EXHAUST BRAKE,"OFF" | ||
| A 3595457314 | SWITCH | |
| Repalced by: A 3645458214 | ||
| 555 | A 3505458114 | SWITCH |
| EXHAUST BRAKE DIRECT CONTROL | ||
| 560 | A 3645457123 | SWITCH |
| RIGHT WINDSHIELD WIPER | ||
| 560 | A 3445458314 | SWITCH |
| RIGHT | ||
| 560 | A 3645457223 | SWITCH |
| LEFT WINDSHIELD WIPER | ||
| 560 | A 3445458414 | SWITCH |
| LEFT | ||
| 565 | A 3445458214 | SWITCH |
| FRONT DOOR | ||
| 570 | A 3445458114 | SWITCH |
| REAR DOOR | ||
| 575 | A 3445458014 | SWITCH |
| SIGN BOX | ||
| 575 | A 3645457314 | SWITCH |
| SIGN BOX | ||
| 580 | A 3445457714 | SWITCH |
| INTERIOR LIGHTING | ||
| 580 | A 3645457414 | SWITCH |
| INTERIOR LIGHTING | ||
| 580 | A 3645457414 | SWITCH |
| SEAT NUMBER LIGHTING | ||
| 585 | A 3645459714 | SWITCH |
| FAN | ||
| 585 | A 3645457814 | SWITCH |
| FAN | ||
| 590 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 590 | A 3645457083 | CAP |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 595 | N 915042011000 | PLUG |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 600 | A 3455420930 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 542 47 30 | ||
| 600 | A 3455424930 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 542 90 30 | ||
| 600 | A 3455421730 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 542 86 30 | ||
| 600 | A 3455425430 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 002 542 29 30;10:41 | ||
| 600 | A 3455423630 | ANGLE DRIVE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 542 7830;11:41 | ||
| 605 | A 0035423507 | FLEXIBLE SHAFT |
| 605 | A 0035423807 | FLEXIBLE SHAFT |
| 605 | A 0035427107 | FLEXIBLE SHAFT |
| 605 | A 3645427307 | FLEXIBLE SHAFT |
| 605 | A 3645427007 | FLEXIBLE SHAFT |
| 610 | A 1869970481 | GROMMET |
| FLEXIBLE SHAFT | ||
| 615 | A 3645407031 | NEG. CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 620 | A 3645407131 | NEG. CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 620 | A 3645407131 | NEG. CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 625 | A 3645407331 | NEG. CABLE |
| FROM BATTERY TO MASTER SWITCH | ||
| 630 | A 3645407230 | POSITIVE CABLE |
| FROM BATTERY TO MASTER SWITCH | ||
| 635 | A 3645407231 | NEG. CABLE |
| SWITCH TO SUBSTRUCTURE | ||
| 640 | A 3445400431 | NEG. CABLE |
| FROM BATTERY TO BODY | ||
| 645 | N 000933010174 | SCREW |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 650 | N 000125010517 | WASHER |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 655 | N 000127010202 | LOCK WASHER |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 660 | N 913004010004 | NUT |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 665 | A 3645407030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 670 | A 3645407830 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 675 | A 3645407130 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| A 3445400430 | POSITIVE CABLE | |
| Repalced by: A 3645407430 | ||
| 680 | A 3645407430 | POSITIVE CABLE |
| FROM STARTING SWITCH TO STARTING CHANGE-OVER SWITCH | ||
| A 3445400231 | NEG. CABLE | |
| Repalced by: A 3645407531 | ||
| 685 | A 3645407531 | NEG. CABLE |
| FROM MASTER SWITCH TO GROUND | ||
| 690 | A 3445400331 | NEG. CABLE |
| FROM STARTER TERMINAL 31 TO GROUND AT CHASSIS | ||
| 695 | N 000933010174 | SCREW |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 695 | N 000933010093 | SCREW |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 700 | N 000125010517 | WASHER |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 705 | N 000127010202 | LOCK WASHER |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 710 | N 913004010004 | NUT |
| NEG.CABLE TO SUBSTRUCTURE | ||
| 715 | A 3125461020 | GROUND STRAP |
| BELL HOUSING | ||
| 715 | A 3645467020 | GROUND STRAP |
| BELL HOUSING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
