Transporto priemonė: O 364; VIN numerio dalis: 364173

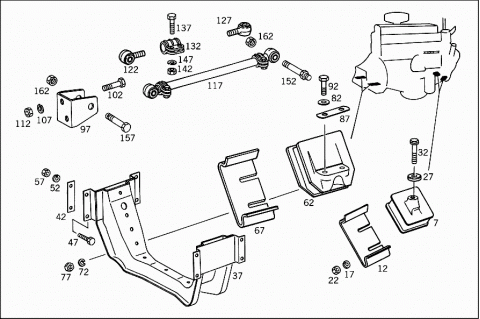

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3522400417 | RUBBER MOUNTING |
| VIBRATION DAMPER END | ||
| 007 | A 3452400317 | RUBBER MOUNTING |
| VIBRATION DAMPER END | ||
| A 3452407017 | RUBBER MOUNTING | |
| VIBRATION DAMPER END | ||
| A 3642407017 | RUBBER MOUNTING | |
| VIBRATION DAMPER END | ||
| 012 | A 3522420509 | ENGINE STAY |
| VIBRATION DAMPER END | ||
| 017 | N 000127012201 | LOCK WASHER |
| VIBRATION DAMPER END | ||
| 022 | N 000934012004 | NUT |
| VIBRATION DAMPER END | ||
| 027 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 032 | N 000960016249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 037 | A 3642407002 | ENGINE SUPPORT |
| CLUTCH END | ||
| 042 | A 3642417284 | SHIM |
| Repalced by: A 3642417184 | ||
| 042 | A 3642417184 | SHIM |
| CROSS MEMBER TO SUBSTRUCTURE,1.5 MM | ||
| 047 | N 000961012020 | SCREW |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| 052 | N 000127012201 | LOCK WASHER |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| 057 | N 000934012004 | NUT |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| 062 | A 3522400318 | RUBBER MOUNTING |
| ON CLUTCH END | ||
| 062 | A 3452400018 | RUBBER MOUNTING |
| ON CLUTCH END | ||
| 067 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 072 | N 000127012201 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 077 | N 000934012004 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 082 | A 3459907340 | WASHER |
| ON CLUTCH END | ||
| 087 | A 3529940032 | LOCK |
| ON CLUTCH END | ||
| 092 | N 000961014107 | SCREW |
| ON CLUTCH END | ||
| 092 | N 000961014116 | SCREW |
| ON CLUTCH END | ||
| 097 | A 3642420030 | CLAMP |
| 102 | N 000960012114 | SCREW |
| CONNECTOR | ||
| 107 | N 000127012201 | LOCK WASHER |
| CONNECTOR | ||
| 112 | N 000934012004 | NUT |
| CONNECTOR | ||
| 117 | A 3642407525 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 122 | A 3442407021 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 127 | A 3442407121 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 132 | A 3443387245 | CLAMP |
| PULL ROD TO BEARING BRACKET | ||
| 137 | N 000960010072 | SCREW |
| PULL ROD TO BEARING BRACKET | ||
| 142 | N 000934010004 | NUT |
| PULL ROD TO BEARING BRACKET | ||
| 147 | N 000127010202 | LOCK WASHER |
| PULL ROD TO BEARING BRACKET | ||
| 152 | A 3452427020 | PIVOT PIN |
| ROD END TO TRANSMISSION CASE | ||
| 157 | A 3212420070 | STUD |
| CONNECTOR | ||
| 162 | N 000937020000 | NUT |
| N 000094004065 | COTTER PIN | |
| 172 | A 3452400006 | CONSOLE |
| 177 | N 000961014105 | SCREW |
| 182 | N 000125015012 | WASHER |
| 187 | N 913004014002 | NUT |
| 192 | A 3452240207 | ENGINE SUPPORT |
| REAR LEFT | ||
| A 3452240307 | ENGINE SUPPORT | |
| REAR RIGHT | ||
| 197 | N 000931012046 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 202 | N 000931012144 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 207 | A 3453120007 | ENGINE CROSS MEMBER |
| ENGINE MOUNTING | ||
| 212 | A 3453120184 | SHIM |
| 217 | N 000127012201 | LOCK WASHER |
| CONSOLE | ||
| 222 | N 000934012004 | NUT |
| CONSOLE | ||
| 227 | A 3452400517 | RUBBER MOUNTING |
| ON CLUTCH END | ||
| 232 | A 3832420026 | SHIM |
| 237 | A 3452420012 | DUST CAP |
| LEFT | ||
| A 3452420112 | DUST CAP | |
| RIGHT | ||
| 242 | N 912004012100 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 247 | N 000961012106 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| 252 | A 3529902440 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 257 | N 000960016269 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
