Transporto priemonė: O 364; VIN numerio dalis: 364173
Grupė: 43 EXHAUST BRAKE

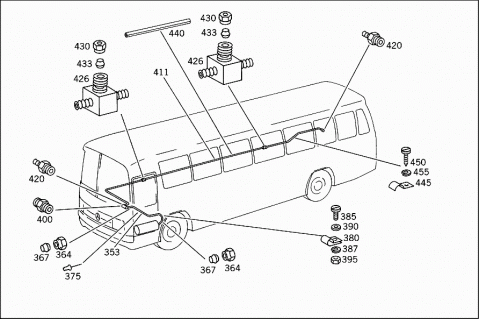

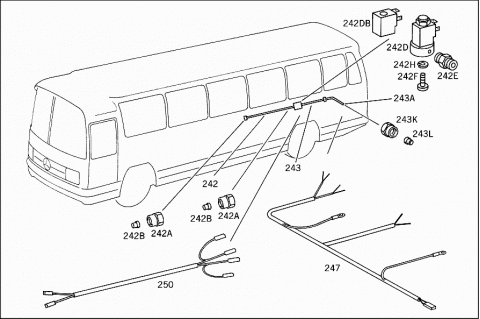

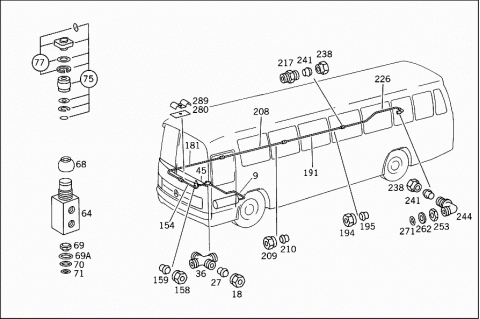

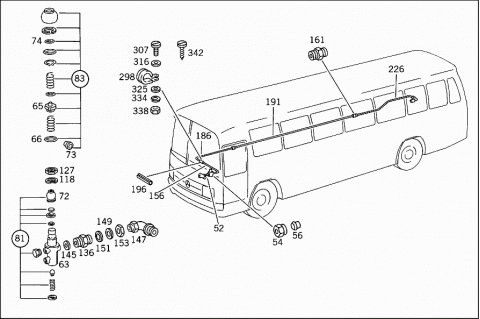

51945
51946
51947
51948
# Kodas Pavadinimas
009 A 3644207736 LINE
FROM AIR RESERVOIR TO T-FITTING
8X0.7 MM
018 N 915017008100 UNION NUT
027 N 003861008005 GLAND
036 A 0009901070 T-FITTING
M14X1,5 / M14X1,5 / M12X1,5
036 A 3454297132 T-FITTING
045 A 3644208426 LINE
FROM T-FITTING TO OPERATING VALVE
6X0.7 MM
052 A 3644209136 LINE
FROM DISTRIBUTOR TO VALVE
6X0.7 MM
054 N 915017006100 UNION NUT
054 N 915017006100 UNION NUT
056 N 003861006007 GLAND
056 N 003861006007 GLAND
063 A 3214340001 VALVE
Repalced by: A 3454347001
063 A 0004340501 VALVE
Repalced by: A 3454347001
063 A 3454347001 VALVE
EXHAUST BRAKE CONTROL
"WABCO DO BRASIL"
063 A 3454347001 VALVE
EXHAUST BRAKE CONTROL
"WABCO DO BRASIL"
064 A 0004342901 VALVE
"KNORR"
064 A 0004342901 VALVE
"KNORR"
065 A 0004350590 VALVE DISC
TO 321 434 00 01
066 A 0004340359 SEAL RING
TO 321 434 00 01
A 0009971917 THREADED CHUCK
TO 000 434 23 01
A 0009971917 THREADED CHUCK
TO 000 434 23 01
068 A 0004340586 CUP
TO 000 434 23 01
068 A 0004340586 CUP
TO 000 434 23 01
069 A 0109970948 SEAL RING
TO 000 434 29 01
069 A 0109970948 SEAL RING
TO 000 434 29 01
069A A 0109971048 SEAL RING
TO 000 434 29 01
069A A 0109971048 SEAL RING
TO 000 434 29 01
070 A 0109971148 SEAL RING
TO 000 434 29 01
070 A 0109971148 SEAL RING
TO 000 434 29 01
071 A 0109971248 SEAL RING
TO 000 434 29 01
071 A 0109971248 SEAL RING
TO 000 434 29 01
072 A 0004317387 PROTECTIVE CAP
TO 000 434 05 01,345 434 70 01
072 A 0004317387 PROTECTIVE CAP
TO 000 434 05 01,345 434 70 01
073 A 0079972448 SEAL RING
TO 000 434 23 01
074 A 0079972548 SEAL RING
TO 000 434 23 01
075 A 0014301360 REPAIR KIT
Repalced by: A 0004304106
075 A 0004304106 REPAIR KIT
LARGE SCOPE
TO 000 434 29 01
077 A 0014301460 REPAIR KIT
SMALL SCOPE
TO 000 434 29 01
081 H 983455860943 REPAIR KIT
Repalced by: A 0034301281
081 A 0034301281 REPAIR KIT
SMALL SCOPE
TO 000 434 05 01,345 434 70 01
081 A 0005869743 REPAIR KIT
LARGE SCOPE
TO 000 434 05 01,345 434 70 01
083 A 0025869843 REPAIR KIT
TO 000 434 23 01
083 A 0025869843 REPAIR KIT
TO 000 434 23 01
118 N 000137027201 SPRING WASHER
TO 000 4324 05 01,345 434 70 01
118 N 000137027201 SPRING WASHER
TO 000 4324 05 01,345 434 70 01
127 N 074305026202 NUT
TO 000 434 05 01,345 434 70 01
127 N 074305026202 NUT
TO 000 434 05 01,345 434 70 01
136 A 3454298136 CONNECTOR
OPERATING VALVE
145 N 007603012106 SEAL RING
OPERATING VALVE
147 A 3454297438 ELBOW FITTING
147 A 3454297438 ELBOW FITTING
149 A 0004290827 THRUST RING
Repalced by: A 0009940103
149 A 0009940103 THRUST RING
149 A 0009940103 THRUST RING
149 A 0009940103 THRUST RING
151 A 0019875046 SEALING CORD
151 A 0019875046 SEALING CORD
153 N 080705012003 NUT
153 N 080705012003 NUT
154 A 3644208526 LINE
FROM OPERATING VALVE TO CONNECTION FITTING I
6X0.7 MM
156 A 3644209036 LINE
FROM OPERATING VALVE TO CONNECTION FITTING I
6X0.7 MM
158 N 915017006100 UNION NUT
158 N 915017006100 UNION NUT
159 N 003861006007 GLAND
159 N 003861006007 GLAND
161 N 003902006001 CONNECTION FITTING
161 N 003902006001 CONNECTION FITTING
181 A 3644208626 LINE
FROM FITTING I TO CONNECTION FITTING II
6X0.7 MM
186 A 3644207337 LINE
FROM FITTING I TO CONNECTION FITTING II
6X0.7 MM
191 A 3644208936 LINE
FROM FITTING II TO CONNECTION FITTING III
6X0.7 MM
191 A 3644208936 LINE
FROM FITTING III TO CONNECTION FITTING IV
6X0.7 MM
194 N 915017006100 UNION NUT
194 N 915017006100 UNION NUT
195 N 003861006007 GLAND
195 N 003861006007 GLAND
196 A 3449978082 HOSE
196 A 3449978082 HOSE
208 A 3644208726 LINE
FROM FITTING II TO CONNECTION FITTING III
6X0.7 MM
209 N 915017006100 UNION NUT
210 N 003861006007 GLAND
217 N 003902006001 CONNECTION FITTING
226 A 3644208926 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
226 A 3644208926 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
226 A 3644208826 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
226 A 3644208837 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
226 A 3644208837 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
226 A 3644209237 LINE
FROM FITTING TO EXHAUST BRAKE CYLINDER
6X0.7 MM
238 N 915017006100 UNION NUT
238 N 915017006100 UNION NUT
241 N 003861006007 GLAND
241 N 003861006007 GLAND
A 0004293134 ADAPTER FITTING
242 A 3644207235 LINE
FROM FITTING TO VALVE
242A N 915017006100 UNION NUT
242B N 003861006007 GLAND
242D A 3649977036 VALVE
SOLENOID VALVE
242DB A 3647630056 MAGNET
242E A 3454297736 CONNECTOR
SOLENOID VALVE
242F N 000084005106 SCREW
SOLENOID VALVE TO SUBSTRUCTURE
242H N 000127005001 LOCK WASHER
SOLENOID VALVE TO SUBSTRUCTURE
243 A 3644207135 LINE
FROM SOLENOID VALVE TO EXHAUST BRAKE CYLINDER
243A A 3644207035 LINE
FROM SOLENOID VALVE TO EXHAUST BRAKE CYLINDER
243K N 915017006100 UNION NUT
243L N 003861006007 GLAND
244 A 3454297438 ELBOW FITTING
EXHAUST BRAKE CYLINDER
247 A 3645407627 ELECTRIC CABLE
EXHAUST BRAKE
250 A 3645407727 ELECTRIC CABLE
STOP LIGHT
253 N 080705012003 NUT
EXHAUST BRAKE CYLINDER
262 A 0004290827 THRUST RING
Repalced by: A 0009940103
262 A 0009940103 THRUST RING
EXHAUST BRAKE CYLINDER
271 A 0019875046 SEALING CORD
EXHAUST BRAKE CYLINDER
280 A 3215422340 BRACKET
COMPRESSED AIR LINE MOUNTING
289 A 3129950332 CLAMP
COMPRESSED AIR LINE MOUNTING
298 N 916016006205 CLAMP
COMPRESSED AIR LINE MOUNTING
298 N 916016006205 CLAMP
COMPRESSED AIR LINE MOUNTING
298 A 3609950201 CLAMP
Repalced by: A 3604300143
298 A 3604300143 CLAMP
Repalced by: N 916016008200
298 N 916016008200 CLAMP
COMPRESSED AIR LINE MOUNTING
307 N 007985005171 SCREW
COMPRESSED AIR LINE MOUNTING
307 N 007985005171 SCREW
COMPRESSED AIR LINE MOUNTING
307 N 007985006515 SCREW
COMPRESSED AIR LINE MOUNTING
316 N 009021006103 WASHER
COMPRESSED AIR LINE MOUNTING
325 N 009021005104 WASHER
COMPRESSED AIR LINE MOUNTING
325 N 009021005104 WASHER
COMPRESSED AIR LINE MOUNTING
334 N 000127005001 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
334 N 000127005001 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
334 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
338 N 000934005008 NUT
COMPRESSED AIR LINE MOUNTING
338 N 000934005008 NUT
COMPRESSED AIR LINE MOUNTING
338 N 000934006006 NUT
COMPRESSED AIR LINE MOUNTING
342 N 007981003263 SHEET METAL SCREW
COMPRESSED AIR LINE MOUNTING
T YYYYYYYYYYYY PART NAME MISSING
SUBSTRUCTURE
353 A 3647601671 LINE
8X0.7 MM
364 N 915017008100 UNION NUT
367 N 003861008005 GLAND
A 3646153614 BRACKET
375 A 3449908197 RIVET
380 A 3609950201 CLAMP
Repalced by: A 3604300143
380 A 3604300143 CLAMP
Repalced by: N 916016008200
380 N 916016008200 CLAMP
385 N 007985006515 SCREW
387 N 000127006203 LOCK WASHER
390 N 009021006103 WASHER
395 N 000934006006 NUT
400 A 0019972672 FITTING
411 A 3647600761 INTERIOR HANDLE ASSEMBLY
420 N 915059006000 FITTING
426 A 3649900070 T-FITTING
430 N 915017008100 UNION NUT
433 N 003861008005 GLAND
440 A 3649970282 HOSE
445 A 3199950320 CLAMP
450 N 007981004252 SHEET METAL SCREW
455 N 000127005001 LOCK WASHER
A 3084299401 LINE
6X0,7 MM
A 3084299501 LINE
8X0,7 MM
