Transporto priemonė: O 364; VIN numerio dalis: 364173

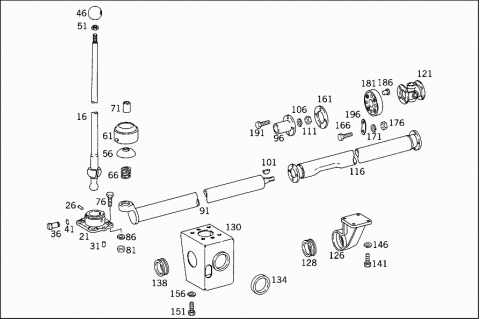

Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL: | ||
| 713 | ||
| N 000933014050 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| N 000933014024 | SCREW | |
| TRANSMISSION TO BELL HOUSING | ||
| N 000127014201 | LOCK WASHER | |
| TRANSMISSION TO BELL HOUSING | ||
| 016 | A 3642607039 | SHIFT LEVER |
| 021 | A 3222603214 | TRANSMISSION CASE COVER |
| 026 | N 001473005012 | GROOVED PIN |
| 031 | N 000007008205 | CYLINDRICAL PIN |
| 036 | A 3212670025 | SLIDING BLOCK |
| 036 | A 3442677025 | SLIDING BLOCK |
| 041 | N 009045008002 | SNAP RING |
| 046 | A 3442600040 | HANDLE |
| 046 | A 3222600040 | HANDLE |
| 046 | A 3452607140 | HANDLE |
| 051 | N 000936010007 | NUT |
| 056 | A 3022670008 | SPHERICAL PIECE |
| 061 | A 3142680005 | COVER |
| Repalced by: A 3082680005 | ||
| 061 | A 3082680005 | COVER |
| 066 | A 3179930501 | SPRING |
| 071 | A 3129970982 | HOSE |
| 076 | N 000933008036 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| 081 | N 000934008000 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 086 | N 912004008100 | LOCK WASHER |
| CASE COVER TO BEARING BRACKET | ||
| 091 | A 3642607433 | SHIFTING ROD |
| FRONT | ||
| 091 | A 3442607133 | SHIFTING ROD |
| FRONT | ||
| 091 | A 3442607233 | SHIFTING ROD |
| FRONT | ||
| 096 | A 3212680228 | CONNECTOR |
| 101 | N 006888005006 | WOODRUFF KEY |
| 106 | N 000127012201 | LOCK WASHER |
| 111 | N 000934012004 | NUT |
| A 3642607133 | SHIFTING ROD | |
| REAR | ||
| 116 | A 3642607233 | SHIFTING ROD |
| REAR | ||
| A 3642607333 | SHIFTING ROD | |
| REAR | ||
| 121 | A 3442687089 | JOINT |
| 121 | A 3442687289 | JOINT |
| 126 | A 3212600272 | SHIFT CASE |
| SHIFTING TUBE | ||
| 128 | A 3022680050 | BUSHING |
| 130 | A 3212600372 | SHIFT CASE |
| 134 | A 3522680038 | GUIDE SLEEVE |
| 138 | A 3022680050 | BUSHING |
| 141 | N 000933008288 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 146 | N 912004008100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 151 | N 000933010174 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 156 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 161 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.0 MM | ||
| A 3212680452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.0 MM | ||
| A 3212680352 | SPACER WASHER | |
| AS REQUIRED | ||
| 5.0 MM | ||
| 166 | A 3219900601 | SCREW |
| 171 | N 912004008100 | LOCK WASHER |
| 176 | N 000934008000 | NUT |
| 181 | A 3442600075 | CONNECTOR |
| 186 | A 3222680150 | BUSHING |
| 191 | A 3179900301 | SCREW |
| 196 | A 3222680073 | LOCK |
| CONNECTOR | ||
