Transporto priemonė: O 371; VIN numerio dalis: 364209

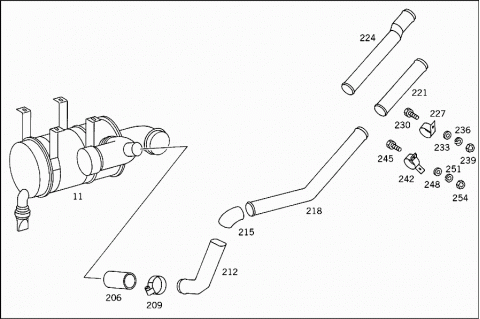

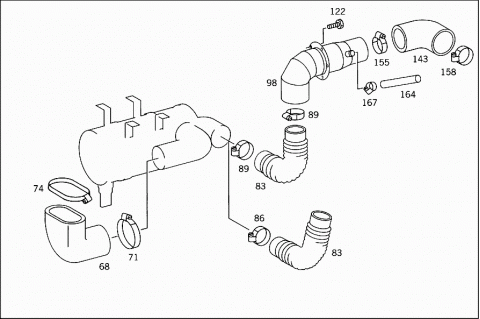

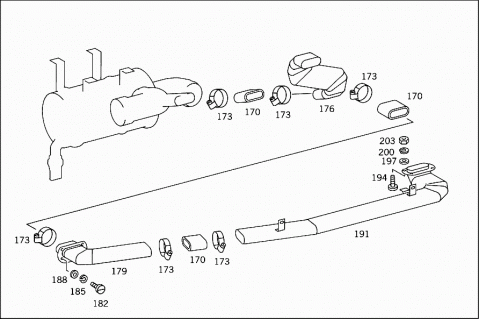

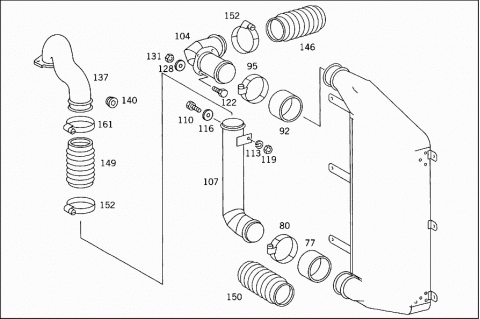

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3640909901 | AIR CLEANER |
| 005 | A 3640909001 | AIR CLEANER |
| A 3640908901 | AIR CLEANER | |
| 011 | A 3640909701 | AIR CLEANER |
| 011 | A 3450909001 | AIR CLEANER |
| 011 | A 3450909101 | AIR CLEANER |
| 014 | A 3500947004 | FILTER ELEMENT |
| TO 345 090 90 01,364 090 90 01,99 01 | ||
| 014 | A 3500947004 | FILTER ELEMENT |
| TO 364 090 97 01 | ||
| 017 | A 3500947103 | FILTER BOWL |
| CYCLONE | ||
| TO 345 090 90 01,364 090 90 01,99 01 | ||
| 020 | A 3500947003 | FILTER BOWL |
| FLOOR | ||
| TO 345 090 90 01,364 090 90 01,99 01 | ||
| 023 | N 913002008001 | NUT |
| TO 364 090 89 01,91 01,99 01 | ||
| 026 | A 3500947072 | NUT |
| TO 345 090 90 01,364 090 90 01 | ||
| 029 | A 3500907072 | NUT |
| PARTS KIT | ||
| TO 345 090 90 01,364 090 90 01,99 01 | ||
| 032 | A 3760947165 | VALVE |
| A 0010940055 | FASTENER | |
| 038 | A 3640947041 | BRACKET |
| TO 364 090 91 01 | ||
| 038 | A 0000947941 | BRACKET |
| TO 364 090 99 01 | ||
| 038 | A 0000947341 | BRACKET |
| TO 345 090 90 01,364 090 90 01 | ||
| 041 | N 000084008172 | SCREW |
| 044 | A 1109900052 | NUT |
| 047 | A 3645407145 | SWITCH |
| 050 | A 3645287740 | BRACKET |
| 050 | A 3645287840 | BRACKET |
| 053 | N 913004010004 | NUT |
| FILTER BRACKET TO CHASSIS | ||
| 056 | A 3445280185 | RUBBER MOUNTING |
| AIR CLEANER TO BRACKET | ||
| 059 | N 009021010102 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 062 | N 000127010202 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 065 | N 000934010000 | NUT |
| AIR CLEANER TO BRACKET | ||
| 068 | A 3645280082 | HOSE |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| 068 | A 3645280182 | HOSE |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| 068 | A 3648320188 | HOSE |
| AIR CLEANER AND AIR INTAKE PIPE | ||
| 071 | A 3649970090 | LOOM TIE |
| CONNECTING PIPE TO AIR CLEANER | ||
| 074 | A 3649970190 | LOOM TIE |
| CONNECTING PIPE TO INTAKE PIPE | ||
| 077 | N 900271130003 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 080 | A 3649970090 | LOOM TIE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 083 | A 3640947782 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 083 | A 3455287082 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 083 | A 3648320188 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 083 | A 3648320188 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 086 | A 3449979990 | CLAMP |
| BELLOWS TO AIR CLEANER | ||
| 089 | A 3649970090 | LOOM TIE |
| BELLOWS TO AIR CLEANER | ||
| 092 | N 900271100015 | HOSE |
| FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE | ||
| 095 | A 3509978290 | CLAMP |
| FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE | ||
| 095 | N 916017100000 | CLAMP |
| FROM CHARGING AIR INTERCOOLER TO AIR INTAKE PIPE | ||
| 098 | A 3645208901 | AIR INTAKE PIPE |
| 098 | A 3645209301 | AIR INTAKE PIPE |
| 098 | A 3645208401 | AIR INTAKE PIPE |
| 098 | A 3645208401 | AIR INTAKE PIPE |
| 098 | A 3645207501 | AIR INTAKE PIPE |
| 104 | A 3645209401 | AIR INTAKE PIPE |
| 107 | A 3645208601 | AIR INTAKE PIPE |
| 110 | N 000933008282 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| 113 | N 000127008203 | LOCK WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 116 | N 009021008102 | WASHER |
| AIR INTAKE PIPE TO BRACKET | ||
| 119 | N 000934008013 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 122 | N 000933006223 | SCREW |
| AIR INTAKE PIPE | ||
| M 6X12 | ||
| 122 | N 000933006223 | SCREW |
| AIR INTAKE PIPE | ||
| M 6X12 | ||
| N 000127006203 | LOCK WASHER | |
| 128 | N 009021006103 | WASHER |
| AIR INTAKE PIPE | ||
| 131 | N 000934006006 | NUT |
| AIR INTAKE PIPE | ||
| 131 | N 000934006006 | NUT |
| AIR INTAKE PIPE | ||
| A 3451410707 | PIPE ELBOW | |
| 137 | A 3645287107 | PIPE ELBOW |
| 140 | A 3529970032 | SCREW PLUG |
| PIPE ELBOW TO ENGINE | ||
| 143 | A 3505287482 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 143 | A 3505287482 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 146 | A 3645287482 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 146 | A 3645287482 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 149 | A 3505288282 | HOSE |
| Repalced by: A 3865288182 | ||
| 149 | A 3865288182 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 150 | A 3865288682 | HOSE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 152 | A 3509978290 | CLAMP |
| Repalced by: A 0059970690 | ||
| 152 | A 3509978290 | CLAMP |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 152 | N 916017100000 | CLAMP |
| Repalced by: A 0059970690 | ||
| 152 | A 0059970690 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 152 | A 0059970690 | CLAMP |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 155 | A 3449979990 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 155 | A 3449979990 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 158 | A 3449979790 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 158 | A 3449979790 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 158 | A 3449979890 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 158 | A 3449979890 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 161 | A 3649970090 | LOOM TIE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 161 | A 3649970090 | LOOM TIE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 161 | N 916018130000 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 161 | N 916018130000 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 164 | A 0009977552 | HOSE |
| INTAKE PIPE TO AIR COMPRESSOR | ||
| 164 | A 0009977552 | HOSE |
| INTAKE PIPE TO AIR COMPRESSOR | ||
| 167 | A 3509970490 | LOOM TIE |
| 20-32 MM | ||
| 167 | A 3509970490 | LOOM TIE |
| 20-32 MM | ||
| 167 | A 3509970390 | LOOM TIE |
| 20-32 MM | ||
| 167 | A 3509970390 | LOOM TIE |
| 20-32 MM | ||
| 167 | A 3459979090 | CLAMP |
| 22-32 MM | ||
| 167 | A 3459979090 | CLAMP |
| 22-32 MM | ||
| 167 | A 3449977590 | CLAMP |
| 22-32 MM | ||
| 167 | A 3449977590 | CLAMP |
| 22-32 MM | ||
| 170 | N 900271008011 | HOSE |
| AIR INTAKE PIPE | ||
| 80X92X75 | ||
| 173 | A 3449979890 | CLAMP |
| AIR INTAKE PIPE | ||
| 176 | A 3645287009 | PIPE |
| 176 | A 3645287109 | PIPE |
| 179 | A 3645207506 | PIPE ELBOW |
| 179 | A 3645207706 | PIPE ELBOW |
| 182 | N 000084005106 | SCREW |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 185 | N 000127005001 | LOCK WASHER |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 188 | N 000125005315 | WASHER |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 191 | A 3645207206 | PIPE ELBOW |
| 191 | A 3645207606 | PIPE ELBOW |
| 194 | N 000084005114 | SCREW |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 194 | N 000084005106 | SCREW |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 197 | N 000125005315 | WASHER |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 200 | N 000127005001 | LOCK WASHER |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 203 | N 000934005008 | NUT |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 206 | A 3085287082 | HOSE |
| TOILET AIR EXHAUST | ||
| 209 | A 3449979790 | CLAMP |
| TOILET AIR EXHAUST | ||
| 212 | A 3645289209 | PIPE |
| TOILET AIR EXHAUST | ||
| 215 | A 3529971982 | HOSE |
| TOILET AIR EXHAUST | ||
| 218 | A 3645289309 | PIPE |
| TOILET AIR EXHAUST | ||
| 218 | A 3645289809 | PIPE |
| TOILET AIR EXHAUST | ||
| 221 | A 3645289409 | PIPE |
| TOILET AIR EXHAUST | ||
| 224 | A 3645289509 | PIPE |
| TOILET AIR EXHAUST | ||
| 227 | A 3645287243 | CLAMP |
| TOILET AIR EXHAUST | ||
| 230 | N 000933008268 | SCREW |
| TOILET AIR EXHAUST | ||
| 233 | N 000125008417 | WASHER |
| TOILET AIR EXHAUST | ||
| 236 | N 000127008203 | LOCK WASHER |
| TOILET AIR EXHAUST | ||
| 239 | N 000934008013 | NUT |
| TOILET AIR EXHAUST | ||
| 242 | A 3645207841 | BRACKET |
| TOILET AIR EXHAUST | ||
| 245 | N 000933006220 | SCREW |
| FOR BRACKET | ||
| 248 | N 000125006420 | WASHER |
| FOR BRACKET | ||
| 251 | N 912004006100 | LOCK WASHER |
| FOR BRACKET | ||
| 254 | N 000934006006 | NUT |
| FOR BRACKET | ||
