Transporto priemonė: O 371; VIN numerio dalis: 364209

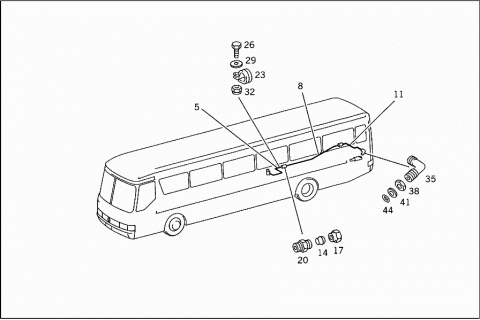

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3644201749 | LINE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 005 | A 3644201749 | LINE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 005 | A 3594209449 | LINE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 005 | A 3644209833 | LINE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 005 | A 3644209833 | LINE |
| FROM 3/2-WAY VALVE TO CONNECTOR | ||
| 008 | A 3644202049 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 008 | A 3644201849 | LINE |
| FROM CONNECTOR I TO CONNECTOR II | ||
| 011 | A 3644202149 | LINE |
| EXHAUST BRAKE | ||
| 011 | A 3594209836 | LINE |
| EXHAUST BRAKE | ||
| 011 | A 3644202749 | LINE |
| EXHAUST BRAKE | ||
| 014 | N 003861006007 | GLAND |
| 017 | N 915017006100 | UNION NUT |
| 020 | N 003902006001 | CONNECTION FITTING |
| BETWEEN THE LINES | ||
| 023 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 023 | N 916016008200 | CLAMP |
| COMPRESSED AIR LINE TO COMPRESSED AIR LINE | ||
| 026 | N 000933006230 | SCREW |
| LINE MOUNTING | ||
| 029 | N 009021006103 | WASHER |
| LINE MOUNTING | ||
| 032 | N 913004006003 | NUT |
| LINE MOUNTING | ||
| 035 | A 3454297438 | ELBOW FITTING |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 038 | N 080705012000 | NUT |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 041 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 041 | A 0009940103 | THRUST RING |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
| 044 | A 0019875046 | SEALING CORD |
| AT COMPRESSED AIR CYLINDER,ENGINE | ||
