Transporto priemonė: O 371; VIN numerio dalis: 364209

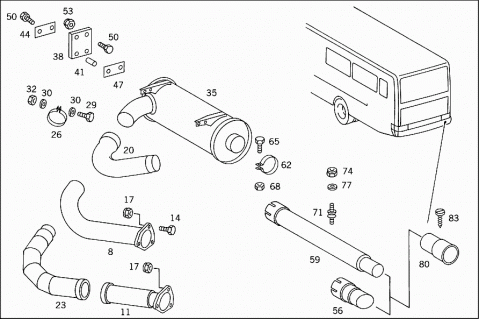

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3644908119 | EXHAUST PIPE | |
| 008 | A 3644908219 | EXHAUST PIPE |
| 008 | A 3644908319 | EXHAUST PIPE |
| 011 | A 3644908419 | EXHAUST PIPE |
| Repalced by: A 3644908619 | ||
| 011 | A 3644908619 | EXHAUST PIPE |
| 014 | N 000933012136 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 014 | N 000933012135 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 017 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 3644917110 | CONNECTOR |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 023 | A 3644929201 | FRONT EXHAUST PIPE |
| 026 | N 071555094500 | CLAMP |
| Repalced by: A 3644927040 | ||
| 026 | A 3644927040 | CLAMP |
| 94.5 MM | ||
| 026 | N 071555104500 | CLAMP |
| Repalced by: A 3644927140 | ||
| 026 | A 3644927140 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 104.5 MM | ||
| 029 | N 000931010205 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 029 | N 000931010171 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 030 | N 000125010513 | WASHER |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 035 | A 3644907801 | EXHAUST MUFFLER |
| Repalced by: A 3644908001 | ||
| 035 | A 3644908001 | EXHAUST MUFFLER |
| 035 | A 3644907701 | EXHAUST MUFFLER |
| 038 | A 3054920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 041 | A 3179910840 | SPACER TUBE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 044 | A 3174920018 | BASE PLATE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 047 | A 3174920083 | INSULATION |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 050 | N 000933008279 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X40 | ||
| 050 | N 000931008085 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X50 | ||
| 053 | N 913004008005 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 056 | A 3644927114 | END PIECE |
| EXHAUST | ||
| 059 | A 3644908121 | EXHAUST PIPE |
| REAR | ||
| 062 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 104.5 MM | ||
| 065 | N 000933010174 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X25 | ||
| 068 | N 000934010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 071 | A 0019873140 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 071 | A 3445280185 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 071 | A 3445280185 | RUBBER MOUNTING |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 074 | N 913004010002 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 074 | N 913004010002 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 077 | N 000125010517 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 077 | N 000125010517 | WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 080 | A 3644917112 | CHROMIUM JACKET |
| 083 | N 007513003206 | TAPPING SCREW |
| CHROMIUM JACKET TO REAR EXHAUST PIPE | ||
