Transporto priemonė: O 371 RSD 0 400 RSD; VIN numerio dalis: 664198

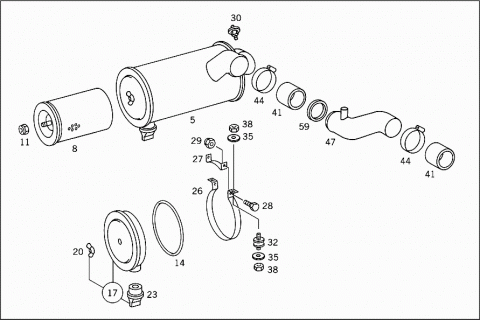

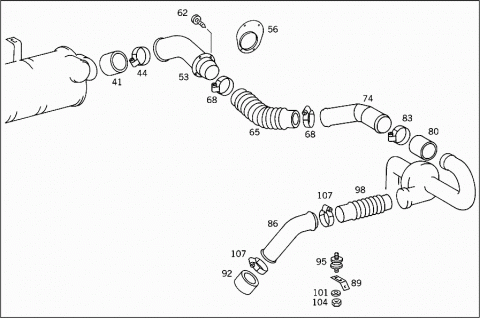

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4750907001 | AIR CLEANER |
| PICLON-MANN | ||
| 005 | A 4750907201 | AIR CLEANER |
| Repalced by: A 4750908001 | ||
| 005 | A 4750908001 | AIR CLEANER |
| PICLON-MANN | ||
| 008 | A 3500947004 | FILTER ELEMENT |
| NOT INCLUDED IN RANGE OF DELIVERY OF: | ||
| 475 090 70 01 | ||
| 008 | A 3880947004 | FILTER ELEMENT |
| PRE-CLEANER | ||
| 475 090 72 01 | ||
| 011 | N 913001010006 | NUT |
| 014 | A 0020940780 | GASKET |
| 014 | A 0020940880 | GASKET |
| 017 | A 0010947006 | COVER |
| 017 | A 0010947106 | COVER |
| 020 | A 0000900072 | NUT |
| 023 | A 3760947165 | VALVE |
| 026 | A 0000941827 | BRACKET |
| Repalced by: A 6645287540 | ||
| 026 | A 6645287540 | BRACKET |
| 027 | A 6645287640 | BRACKET |
| 028 | N 000933008288 | SCREW |
| STRAP TO SUBSTRUCTURE | ||
| M 8X25 | ||
| 029 | N 913004008001 | NUT |
| STRAP TO SUBSTRUCTURE | ||
| 030 | A 3645407145 | SWITCH |
| 032 | A 0019873140 | RUBBER BUFFER |
| AIR CLEANER TO BRACKET | ||
| 035 | N 009021010102 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 038 | N 000934010005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 041 | N 900271130003 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 041 | N 900271130003 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 041 | A 6649977082 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 041 | A 6649977082 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 041 | A 6649977182 | HOSE |
| AIR INTAKE CASE | ||
| 044 | A 3649970090 | LOOM TIE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 044 | A 3649970090 | LOOM TIE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 044 | N 916018130000 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 044 | N 916018130000 | CLAMP |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 044 | A 6649977090 | LOOM TIE |
| AIR INTAKE CASE | ||
| 044 | A 6849977190 | LOOM TIE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 044 | A 6849977190 | LOOM TIE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 047 | A 6645288608 | AIR INTAKE PIPE |
| Repalced by: A 6645286708 | ||
| 047 | A 6645286708 | AIR INTAKE PIPE |
| 047 | A 6645207601 | AIR INTAKE PIPE |
| Repalced by: A 6645208101 | ||
| 047 | A 6645208101 | AIR INTAKE PIPE |
| 047 | A 6645207701 | AIR INTAKE PIPE |
| Repalced by: A 6645208201 | ||
| 047 | A 6645208201 | AIR INTAKE PIPE |
| 053 | A 6645207301 | AIR INTAKE PIPE |
| 053 | A 6645207101 | AIR INTAKE PIPE |
| 056 | A 6645287245 | FLANGE |
| AIR INTAKE PIPE | ||
| 059 | A 6645287080 | GASKET |
| AIR INTAKE PIPE | ||
| 059 | A 6645287180 | GASKET |
| AIR INTAKE PIPE | ||
| 062 | N 007985006510 | SCREW |
| AIR INTAKE PIPE | ||
| 065 | A 3645287482 | HOSE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 068 | A 3649970090 | LOOM TIE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 068 | N 916018130000 | CLAMP |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 074 | A 6645207801 | AIR INTAKE PIPE |
| Repalced by: A 6645286208 | ||
| 074 | A 6645287408 | AIR INTAKE PIPE |
| Repalced by: A 6645286208 | ||
| 074 | A 6645287508 | AIR INTAKE PIPE |
| Repalced by: A 6645286208 | ||
| 074 | A 6645286208 | AIR INTAKE PIPE |
| 080 | N 900271130003 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | A 3649970090 | LOOM TIE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | N 916018130000 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 086 | A 6645287808 | AIR INTAKE PIPE |
| Repalced by: A 6645289908 | ||
| 086 | A 6645289908 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 086 | A 6645285708 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| A 6645047040 | BRACKET | |
| 089 | A 6645287340 | BRACKET |
| AIR INTAKE PIPE | ||
| 092 | N 900271100015 | HOSE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 092 | N 900271100017 | HOSE |
| Repalced by: A 6645287082 | ||
| 092 | A 6645287382 | HOSE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 095 | A 3885247181 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 095 | A 0019875240 | RUBBER BUFFER |
| 098 | A 3505288282 | HOSE |
| Repalced by: A 3865288682 | ||
| 098 | A 3865288682 | HOSE |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 101 | N 000125008417 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 104 | N 000934008010 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 107 | A 3509978290 | LOOM TIE |
| Repalced by: A 0059970690 | ||
| 107 | N 916018100000 | CLAMP |
| Repalced by: A 0059970690 | ||
| 107 | A 0059970690 | LOOM TIE |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 107 | A 0059970690 | LOOM TIE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| N 071555104500 | CLAMP | |
| N 000933010129 | SCREW | |
| N 000933010294 | SCREW | |
| N 000934010005 | NUT | |
