Transporto priemonė: O 371 RSD 0 400 RSD; VIN numerio dalis: 664198

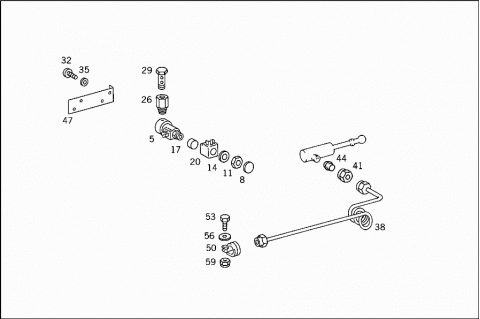

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3649977236 | VALVE |
| Repalced by: A 3889978136 | ||
| 005 | A 3889978136 | VALVE |
| Repalced by: A 3889978336 | ||
| 005 | A 3889978336 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| 008 | A 0014311687 | PROTECTIVE CAP |
| 011 | A 0004310472 | NUT |
| 014 | A 0139971648 | SEAL RING |
| 017 | A 0004311868 | VALVE PART |
| 020 | A 0007630956 | MAGNET |
| 026 | A 3454297736 | CONNECTOR |
| 3/2-WAY VALVE;CONNECTION: | ||
| "2" | ||
| 029 | N 915047008100 | HOLLOW SCREW |
| "1" | ||
| 029 | N 915047008200 | HOLLOW SCREW |
| "1" | ||
| 032 | N 000084005131 | SCREW |
| SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE | ||
| 035 | N 000127005001 | LOCK WASHER |
| SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE | ||
| A 6644208326 | LINE | |
| EXHAUST BRAKE | ||
| 038 | A 6644207537 | LINE |
| EXHAUST BRAKE | ||
| A 6644208226 | LINE | |
| EXHAUST BRAKE | ||
| 038 | A 6644207637 | LINE |
| EXHAUST BRAKE | ||
| 041 | N 915017006100 | UNION NUT |
| 044 | N 003861006007 | GLAND |
| 047 | A 3645017220 | BRACKET |
| AT BELL HOUSING | ||
| 050 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 053 | N 000933006230 | SCREW |
| LINE MOUNTING | ||
| 056 | N 009021006103 | WASHER |
| LINE MOUNTING | ||
| 059 | N 913004006003 | NUT |
| LINE MOUNTING | ||
