Transporto priemonė: O 371 UL; VIN numerio dalis: 364304

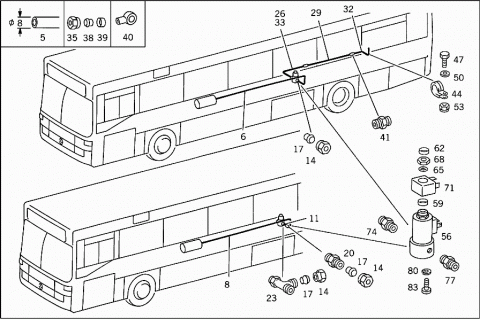

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 0089976082	HOSE
		"6X8 MM"
006	A 3644208332	LINE
		FROM AIR RESERVOIR TO VALVE
		1850 MM
008	A 3644209230	LINE
		FROM AIR RESERVOIR TO CONNECTOR
		2255 MM
011	A 3644209330	LINE
		FROM CONNECTION TO 3/2-WAY SOLENOID VALVE
		260 MM
014	N 915017008100	UNION NUT
017	N 003861008005	GLAND
020	A 0019972672	FITTING
020	N 003902008001	CONNECTION FITTING
023	A 0009909970	T-FITTING
023	N 003954008101	FITTING
026	A 3644209031	LINE
		FROM VALVE TO CONNECTION FITTING
		1330 MM
026	A 3644208697	PIPING
		FROM VALVE TO CONNECTION FITTING
026	A 3644208431	LINE
		FROM VALVE TO CONNECTION FITTING
		1920 MM
029	A 3594209736	LINE
		FROM CONNECTOR I TO CONNECTOR II
		585 MM
	A 3644208445	LINE
029	A 3644208931	LINE
		FROM CONNECTOR I TO CONNECTOR II
		950 MM
029	A 3644208331	LINE
		FROM CONNECTOR I TO CONNECTOR II
		980 MM
032	A 3644208231	LINE
		FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER
		1830 MM
032	A 3594209636	LINE
		FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER
		1545 MM
032	A 3594207737	LINE
		FROM CONNECTION FITTING TO COMPRESSED AIR CYLINDER
		1545 MM
033	A 3644208545	LINE
		FROM VALVE TO CONNECTION FITTING
033	A 3644205749	LINE
		FROM VALVE TO CONNECTION FITTING
035	N 915017006100	UNION NUT
038	N 003861006007	GLAND
039	N 915062004000	SLEEVE
040	N 915052004002	BANJO UNION
041	N 003902006001	CONNECTION FITTING
041	A 3454298136	CONNECTOR
044	A 3459957801	CLAMP
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
047	N 000933006230	SCREW
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
050	N 009021006103	WASHER
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
053	N 913004006003	NUT
		COMPRESSED AIR LINE TO BRACKET AT SUBSTRUCTURE
056	A 3649977236	VALVE
	Repalced by: A 3889978136
056	A 3889978136	VALVE
	Repalced by: A 3889978336
056	A 3889978336	VALVE
		(THREE-WAY SOLENOID VALVE)
		24 V
059	A 0004311868	VALVE PART
062	A 0014311687	PROTECTIVE CAP
065	A 0139971648	SEAL RING
068	A 0004310472	NUT
071	A 0007630956	MAGNET
074	A 3454297736	CONNECTOR
		AT VALVE
077	A 3444297136	CONNECTOR
		AT VALVE
080	N 000127005001	LOCK WASHER
		SOLENOID VALVE TO SUBSTRUCTURE
083	N 000084005411	SCREW
		SOLENOID VALVE TO SUBSTRUCTURE
