Transporto priemonė: O 371 UL; VIN numerio dalis: 364304

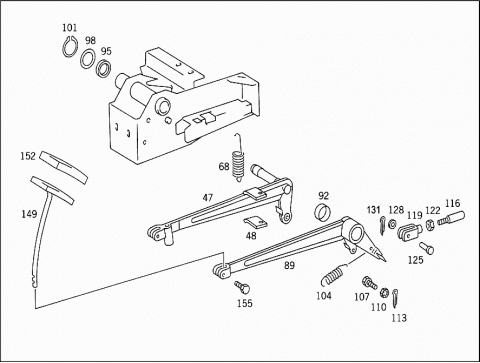

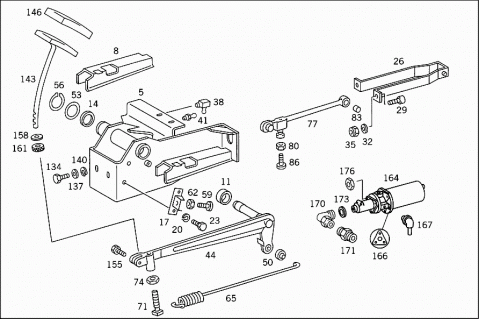

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3642900119 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 005 | A 3642900119 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 005 | A 3642907119 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 005 | A 3642907119 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 005 | A 6642900119 | BEARING BRACKET |
| Repalced by: A 6642907419 | ||
| 005 | A 6642907419 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 005 | A 3642907519 | BEARING BRACKET |
| 008 | A 3642950040 | BRACKET |
| 011 | A 0059813110 | NEEDLE BEARING |
| PEDAL BEARING BRACKET | ||
| 014 | A 0119972746 | SEAL RING |
| PEDAL BEARING BRACKET | ||
| 017 | A 3012901033 | BRACKET |
| PEDAL ASSEMBLY | ||
| 020 | N 912004008100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 023 | N 000933008282 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 026 | A 3642900033 | BRACKET |
| PEDAL ASSEMBLY | ||
| 026 | A 3642900033 | BRACKET |
| PEDAL ASSEMBLY | ||
| 029 | N 000912008012 | SCREW |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 032 | N 000125008417 | WASHER |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 032 | N 000125008417 | WASHER |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 035 | N 913004008005 | NUT |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 035 | N 913004008005 | NUT |
| BRACKET TO PEDAL ASSEMBLY BEARING BRACKET | ||
| 038 | N 071412008300 | GREASE NIPPLE |
| PEDAL ASSEMBLY LUBRICATION | ||
| 041 | N 071412008100 | GREASE NIPPLE |
| PEDAL ASSEMBLY LUBRICATION | ||
| 044 | A 3642900016 | PEDAL |
| CLUTCH | ||
| 044 | A 3642900016 | PEDAL |
| CLUTCH | ||
| 047 | A 3642907416 | PEDAL |
| CLUTCH | ||
| 047 | A 3642907416 | PEDAL |
| CLUTCH | ||
| 047 | A 3642907416 | PEDAL |
| CLUTCH | ||
| 048 | A 3642917440 | BRACKET |
| 050 | A 0009817031 | JOINT BEARING |
| 053 | A 3079900040 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | N 000471025001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 059 | A 3012910241 | STOP |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| M8 | ||
| 062 | N 000439008218 | NUT |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 065 | A 3649937210 | SPRING |
| CLUTCH PEDAL RESET | ||
| 065 | A 3649937210 | SPRING |
| CLUTCH PEDAL RESET | ||
| 068 | A 3129931510 | SPRING |
| CLUTCH PEDAL RESET | ||
| 068 | A 3129931510 | SPRING |
| CLUTCH PEDAL RESET | ||
| 068 | A 6649933010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 071 | A 3649900022 | SCREW |
| SPRING TO CLUTCH PEDAL | ||
| 074 | N 080705018002 | NUT |
| SPRING TO CLUTCH PEDAL | ||
| 077 | A 3642900043 | CONNECTOR |
| RELEASE SPRING | ||
| 080 | N 000934008013 | NUT |
| RELEASE SPRING | ||
| 083 | A 3072910150 | BUSHING |
| RELEASE SPRING | ||
| 083 | A 3072910250 | BUSHING |
| RELEASE SPRING | ||
| 086 | A 3012910241 | STOP |
| RELEASE SPRING | ||
| M8 | ||
| 089 | A 3012900218 | PEDAL |
| BRAKE | ||
| 092 | A 3389920103 | BUSHING |
| 095 | A 0119972846 | SEAL RING |
| 098 | A 3019900240 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 101 | N 000471040002 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 104 | A 3019930310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 107 | A 3079900114 | SCREW |
| RELEASE SPRING TO BEARING BRACKET | ||
| 110 | N 000979010002 | NUT |
| RELEASE SPRING TO BEARING BRACKET | ||
| 113 | N 000094002073 | COTTER PIN |
| RELEASE SPRING TO BEARING BRACKET | ||
| 116 | A 3002950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 119 | N 071752010004 | YOKE |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 122 | N 000934010005 | NUT |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 125 | N 001434010117 | PIN |
| ROD TO BRAKE PEDAL | ||
| 128 | N 000433010500 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 131 | N 000094003212 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 134 | N 000933010294 | SCREW |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 137 | N 000125010517 | WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 140 | N 912004010103 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 143 | A 3642900024 | PEDAL PLATE |
| CLUTCH | ||
| 146 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 149 | A 3642907624 | PEDAL PLATE |
| BRAKE | ||
| 152 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
| 155 | N 000933010174 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 158 | A 3226880024 | WASHER |
| PEDAL THRU CAB FLOOR | ||
| 161 | A 3259870941 | RUBBER RING |
| PEDAL THRU CAB FLOOR | ||
| 164 | A 0002902112 | CYLINDER |
| PEDAL ASSEMBLY | ||
| 164 | A 0002902112 | CYLINDER |
| PEDAL ASSEMBLY | ||
| 166 | A 0002902512 | GASKET KIT |
| TO 000 290 21 12 | ||
| 167 | A 4063580065 | BREATHER |
| AT CYLINDER | ||
| 167 | A 4063580065 | BREATHER |
| AT CYLINDER | ||
| 170 | A 0019902171 | ELBOW FITTING |
| AT CYLINDER | ||
| 170 | A 0019902171 | ELBOW FITTING |
| AT CYLINDER | ||
| 170 | N 003952008100 | FITTING |
| AT CYLINDER | ||
| 170 | N 003952008100 | FITTING |
| AT CYLINDER | ||
| 171 | A 0039979972 | FITTING |
| AT CYLINDER | ||
| 171 | A 0039979972 | FITTING |
| AT CYLINDER | ||
| 173 | N 007603014102 | SEAL RING |
| AT CYLINDER | ||
| 173 | N 007603014102 | SEAL RING |
| AT CYLINDER | ||
| 176 | N 000934006006 | NUT |
| CYLINDER TO SUBSTRUCTURE | ||
| 176 | N 000934006006 | NUT |
| CYLINDER TO SUBSTRUCTURE | ||
