Transporto priemonė: O 371 UP S&S TRANSITBUS; VIN numerio dalis: 665009

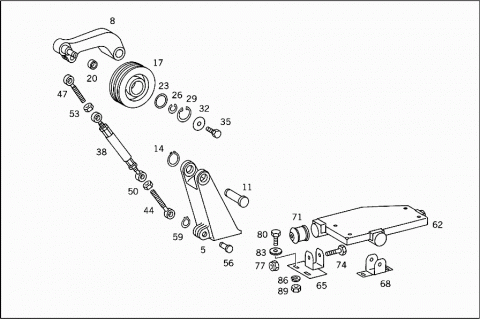

Grupė: 55 HYDRAULIC SYSTEM - 090 COMPRESSOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3645527040 | BRACKET |
| TIGHTENER PULLEY | ||
| 008 | A 3645507013 | LEVER |
| TIGHTENER PULLEY | ||
| 011 | A 3645517174 | PIN |
| TIGHTENER PULLEY | ||
| 014 | N 000471025001 | LOCK RING |
| TIGHTENER PULLEY | ||
| 017 | A 3645527079 | PULLEY |
| TIGHTENER PULLEY | ||
| N 000625406004 | GROOVED BALL BEARING | |
| TIGHTENER PULLEY | ||
| 020 | A 3012060053 | SPACER TUBE |
| TIGHTENER PULLEY | ||
| 023 | A 3022050552 | SPACER WASHER |
| 0.20 MM | ||
| 023 | A 3642057052 | SPACER WASHER |
| 0.20 MM | ||
| 023 | A 3022050652 | SPACER WASHER |
| 0.50 MM | ||
| 023 | A 3642057152 | SPACER WASHER |
| 0.50 MM | ||
| 023 | A 3022050752 | SPACER WASHER |
| 1.00 MM | ||
| 023 | A 3642057252 | SPACER WASHER |
| 1.00 MM | ||
| 026 | N 000471020000 | LOCK RING |
| TIGHTENER PULLEY | ||
| 20X1,2 MM | ||
| 029 | N 000472042000 | LOCK RING |
| TIGHTENER PULLEY | ||
| 42X1,75 MM | ||
| 032 | A 3645517076 | WASHER |
| TIGHTENER PULLEY | ||
| 035 | N 000933006223 | SCREW |
| TIGHTENER PULLEY | ||
| 038 | A 3645507077 | TURNBUCKLE |
| TIGHTENER PULLEY | ||
| 044 | A 3649907523 | SCREW |
| 047 | A 3649907623 | SCREW |
| 050 | N 000934014000 | NUT |
| 053 | N 000934014002 | NUT |
| 056 | A 3645517274 | PIN |
| 059 | N 000471014001 | LOCK RING |
| 062 | A 6655507038 | SUPPORT |
| COMPRESSOR | ||
| 065 | A 6655507021 | BEARING |
| CONSOLE | ||
| 068 | A 3015500740 | BRACKET |
| Repalced by: A 6645507221 | ||
| 068 | A 6645507221 | BEARING |
| CONSOLE | ||
| 071 | A 3649887011 | BUFFER |
| CONSOLE | ||
| 074 | N 000960012345 | SCREW |
| BEARING BRACKET TO CONSOLE | ||
| 077 | N 913004012006 | NUT |
| BEARING BRACKET TO CONSOLE | ||
| 080 | N 000933010129 | SCREW |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 083 | N 009021010102 | WASHER |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 086 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 089 | N 000934010005 | NUT |
| BEARING BRACKET TO MOUNTING PLATE | ||
