Transporto priemonė: O 400 RSDH; VIN numerio dalis: 664309

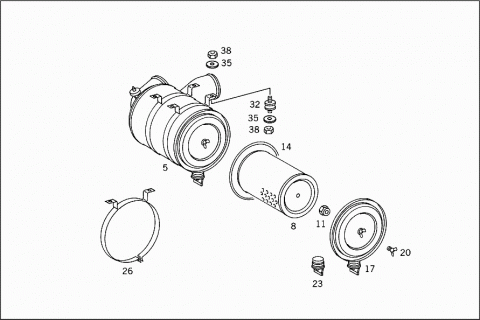

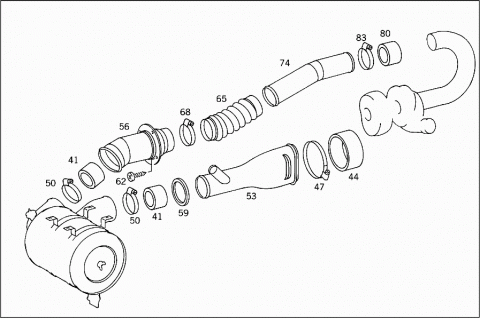

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4750907201 | AIR CLEANER |
| PICLON-MANN | ||
| 008 | A 3880947004 | FILTER ELEMENT |
| PRE-CLEANER | ||
| 475 090 72 01 | ||
| 011 | N 913001010006 | NUT |
| 014 | A 0020940880 | GASKET |
| 017 | A 0010947106 | COVER |
| 020 | A 0000900072 | NUT |
| 023 | A 3760947165 | VALVE |
| 026 | A 0000941827 | BRACKET |
| Repalced by: A 6645287540 | ||
| 026 | A 6645287540 | BRACKET |
| 032 | A 0019873140 | RUBBER BUFFER |
| AIR CLEANER TO BRACKET | ||
| 035 | N 009021010102 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 038 | N 000934010005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 041 | A 6649977082 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 041 | A 6649977082 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 044 | A 6649977182 | HOSE |
| AIR INTAKE CASE | ||
| 047 | A 6649977090 | LOOM TIE |
| AIR INTAKE CASE | ||
| 050 | A 6849977190 | LOOM TIE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 050 | A 6849977190 | LOOM TIE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 053 | A 6645208201 | AIR INTAKE PIPE |
| 056 | A 6645207101 | AIR INTAKE PIPE |
| 059 | A 6645287180 | GASKET |
| AIR INTAKE PIPE | ||
| 062 | N 007985006510 | SCREW |
| AIR INTAKE PIPE | ||
| 065 | A 3645287482 | HOSE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 068 | A 3649970090 | LOOM TIE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 068 | N 916018130000 | CLAMP |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 074 | A 6645286208 | AIR INTAKE PIPE |
| 080 | N 900271130003 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | A 3649970090 | LOOM TIE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | N 916018130000 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
