Transporto priemonė: O 400 RSDH; VIN numerio dalis: 664309

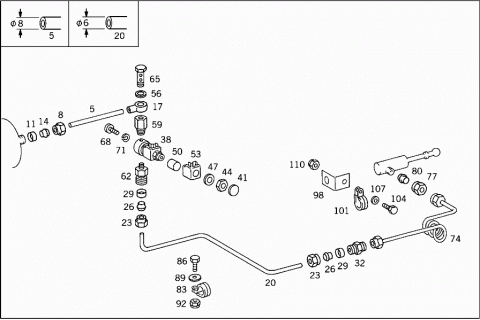

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 0089979082	HOSE
		8X1.0 MM
008	N 915017008100	UNION NUT
011	N 915062006000	SLEEVE
014	N 003861008005	GLAND
017	N 915052006000	BANJO UNION
		6/12
020	A 0089976082	HOSE
		6X1.0 MM
023	N 915017006100	UNION NUT
026	N 003861006007	GLAND
029	N 915062004000	SLEEVE
032	N 003902006001	CONNECTION FITTING
038	A 3649977236	VALVE
		(3/2-WAY SOLENOID VALVE)
038	A 3889978836	VALVE
		(3/2-WAY SOLENOID VALVE)
041	A 0014311687	PROTECTIVE CAP
044	A 0004310472	NUT
047	A 0139971648	SEAL RING
050	A 0004311868	VALVE PART
053	A 0007630956	MAGNET
056	N 007603012405	SEAL RING
		3/2-WAY VALVE;CONNECTION:
		"1"
059	A 3509977472	FITTING
		3/2-WAY VALVE;CONNECTION:
		"1"
062	A 3454297736	CONNECTOR
		3/2-WAY VALVE;CONNECTION:
		"2"
065	N 915047008100	HOLLOW SCREW
		"1"
065	N 915047008200	HOLLOW SCREW
		"1"
068	N 000084005131	SCREW
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
071	N 912004005100	LOCK WASHER
		SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
074	A 6644207637	LINE
		EXHAUST BRAKE
077	N 915017006100	UNION NUT
080	N 003861006007	GLAND
083	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
083	A 3459957801	CLAMP
		COMPRESSED AIR LINE MOUNTING
083	A 6889957101	CLAMP
		COMPRESSED AIR LINE MOUNTING
086	N 000933006230	SCREW
		COMPRESSED AIR LINE MOUNTING
089	N 009021006103	WASHER
		COMPRESSED AIR LINE MOUNTING
092	N 913004006003	NUT
		COMPRESSED AIR LINE MOUNTING
098	A 3645017220	BRACKET
		AT BELL HOUSING
101	N 916016006201	CLAMP
		COMPRESSED AIR LINE TO BRACKET
104	N 000933006230	SCREW
		LINE MOUNTING
107	N 009021006103	WASHER
		LINE MOUNTING
110	N 913004006003	NUT
		LINE MOUNTING
