Transporto priemonė: O 400 RSDH; VIN numerio dalis: 664309

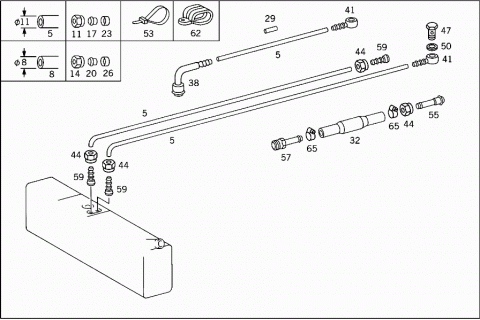

Grupė: 47 FUEL SYSTEM - 030 FUEL LINES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0089975482 | HOSE |
| 11X1.5 MM | ||
| 008 | A 0089979082 | HOSE |
| 8X1.0 MM | ||
| 011 | N 915017012100 | UNION NUT |
| 014 | N 915017008100 | UNION NUT |
| 017 | N 003861012007 | GLAND |
| 020 | N 003861008005 | GLAND |
| 023 | N 915062009000 | SLEEVE |
| 026 | N 915062006000 | SLEEVE |
| 029 | N 040621012208 | INSULATING HOSE |
| YELLOW | ||
| 029 | N 040621012244 | INSULATING HOSE |
| BLUE | ||
| 029 | N 040621012242 | INSULATING HOSE |
| GREY | ||
| 032 | A 3644768026 | HOSE |
| 038 | A 3504707062 | ELBOW FITTING |
| Repalced by: A 3084767124 | ||
| 038 | A 3084767124 | CONNECTOR |
| 041 | N 915052008000 | BANJO UNION |
| 044 | N 915017010200 | UNION NUT |
| 047 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO MANUAL FEED PUMP | ||
| 050 | N 007603014106 | SEAL RING |
| FUEL LINE TO MANUAL FEED PUMP | ||
| 053 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 053 | A 3459977390 | LOOM TIE |
| LINE MOUNTING | ||
| 055 | A 6644707027 | FEED CONNECTION |
| 057 | A 6644707127 | FEED CONNECTION |
| 059 | A 0019974972 | FITTING |
| 062 | A 0009950905 | CLAMP |
| LINE MOUNTING | ||
| 065 | A 3509970290 | CLAMP |
| 065 | N 900288017000 | CLAMP |
| 068 | A 3884767169 | SEPARATOR |
| A 3824767069 | SEPARATOR | |
| 071 | A 0004760195 | COVER |
| 074 | N 000931006191 | SCREW |
| 077 | N 000125006240 | WASHER |
| 080 | A 0219970045 | SEAL RING |
| 083 | A 0019972645 | SEAL RING |
| 086 | A 0004700279 | INTERMEDIATE PIECE |
| 089 | A 0004700018 | BOTTOM |
| 092 | A 0004760171 | SCREW |
| 095 | A 0199978648 | SEAL RING |
| A 0004710279 | SEAL RING | |
| A 3820927003 | FILTER BOWL | |
| TO 382 476 70 69 | ||
| A 3820927005 | FILTER ELEMENT | |
| TO 382 476 70 69 | ||
| A 0004763932 | VALVE | |
| TO 382 476 70 69 | ||
| A 0004760271 | SCREW | |
| TO 382 476 70 69 | ||
| A 0004760080 | GASKET | |
| TO 382 476 70 69 | ||
| 098 | N 000933010286 | SCREW |
| WATER SEPARATOR TO BRACKET | ||
| 101 | N 009021010102 | WASHER |
| WATER SEPARATOR TO BRACKET | ||
| 104 | N 915036010100 | HOLLOW SCREW |
| WATER SEPARATOR | ||
| 107 | N 915023010001 | FITTING |
| WATER SEPARATOR | ||
| 110 | N 007603014106 | SEAL RING |
| WATER SEPARATOR | ||
| N 000908014001 | SCREW PLUG | |
| WATER SEPARATOR | ||
