Transporto priemonė: O 400 RSDH; VIN numerio dalis: 664309

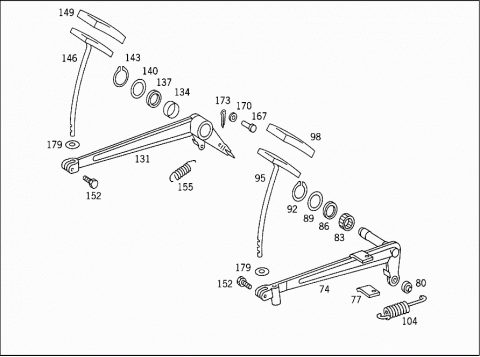

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH PEDAL ASSEMBLY | ||
| 005 | A 6642900119 | BEARING BRACKET |
| Repalced by: A 6642907419 | ||
| 005 | A 6642907419 | BEARING BRACKET |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 008 | A 3642917540 | BRACKET |
| 011 | A 3642950040 | BRACKET |
| 014 | N 000933010253 | SCREW |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 017 | N 000125010517 | WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 020 | N 912004010100 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SUBSTRUCTURE | ||
| 023 | A 3012901033 | BRACKET |
| PEDAL ASSEMBLY | ||
| 026 | N 000933008272 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 029 | N 912004008100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 032 | A 3012910241 | STOP |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 035 | N 000439008218 | NUT |
| CLUTCH AND BRAKE PEDALS TO BEARING BRACKET | ||
| 050 | A 0005730532 | CONNECTOR |
| PEDAL ASSEMBLY LUBRICATION | ||
| 053 | N 003862004001 | DOUBLE TAPER RING |
| PEDAL ASSEMBLY LUBRICATION | ||
| 056 | N 003871004102 | UNION SCREW |
| PEDAL ASSEMBLY LUBRICATION | ||
| 059 | A 3642950113 | PIPE |
| PEDAL ASSEMBLY LUBRICATION | ||
| 062 | N 071429014110 | BULKHEAD FITTING |
| PEDAL ASSEMBLY LUBRICATION | ||
| 065 | N 006797014150 | TOOTHED WASHER |
| PEDAL ASSEMBLY LUBRICATION | ||
| 068 | N 000936014008 | NUT |
| PEDAL ASSEMBLY LUBRICATION | ||
| 071 | N 071412008300 | GREASE NIPPLE |
| PEDAL ASSEMBLY LUBRICATION | ||
| 074 | A 3642907416 | PEDAL |
| CLUTCH | ||
| 077 | A 3642917440 | BRACKET |
| 080 | A 0009817031 | JOINT BEARING |
| 083 | A 0059813110 | NEEDLE BEARING |
| PEDAL BEARING BRACKET | ||
| 086 | A 0119972746 | SEAL RING |
| PEDAL BEARING BRACKET | ||
| 089 | A 3079900040 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 092 | N 000471025001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 095 | A 3642900024 | PEDAL PLATE |
| CLUTCH | ||
| 098 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 104 | A 6649933010 | SPRING |
| CLUTCH PEDAL RESET | ||
| 131 | A 3012900218 | PEDAL |
| BRAKE PEDAL | ||
| 134 | A 3389920103 | BUSHING |
| 137 | A 0119972846 | SEAL RING |
| 140 | A 3019900240 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 143 | N 000471040002 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 146 | A 3012900524 | PEDAL PLATE |
| BRAKE | ||
| 149 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
| 152 | N 000933010254 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 155 | A 3019930310 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 167 | N 001434010117 | PIN |
| ROD TO BRAKE PEDAL | ||
| 170 | N 000433010504 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 173 | N 000094003212 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 179 | A 3226880024 | WASHER |
| PEDAL THRU CAB FLOOR | ||
