Transporto priemonė: O 400 RSDH; VIN numerio dalis: 664309

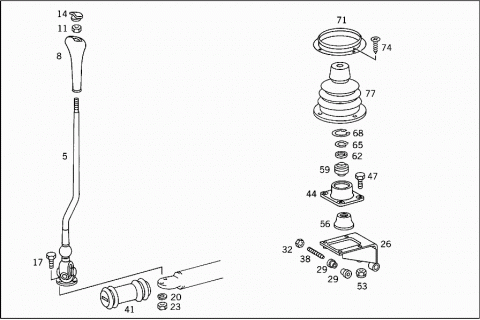

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3642600039 | SHIFT LEVER |
| 008 | A 3642687142 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 011 | N 000936010022 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 014 | A 6202680457 | COVER |
| SHIFT LEVER KNOB | ||
| 017 | A 3219900601 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 020 | N 000127008104 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 023 | N 000934008008 | NUT |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 026 | A 6642607062 | BRACKET |
| TRANSMISSION GEARSHIFT | ||
| 029 | A 6642687049 | SLIDE |
| BRACKET TO FRAME | ||
| 032 | N 000439010202 | NUT |
| SLIDE ADJUSTMENT | ||
| 038 | A 6649907022 | SCREW |
| SLIDE ADJUSTMENT | ||
| 041 | A 3962680096 | BOOT |
| SLIDE ADJUSTMENT | ||
| 044 | A 3002680040 | BRACKET |
| COVER TO BEARING BRACKET | ||
| 047 | N 000933008270 | SCREW |
| BRACKET TO FRAME | ||
| 053 | N 913004008001 | NUT |
| BRACKET TO FRAME | ||
| 056 | A 3002680080 | GASKET |
| SHIFT LEVER | ||
| 059 | A 0019811931 | JOINT BEARING |
| SHIFT LEVER | ||
| 062 | A 3002680051 | SPACER RING |
| SHIFT LEVER | ||
| 065 | N 000471025001 | LOCK RING |
| SHIFT LEVER | ||
| 068 | N 000472047001 | LOCK RING |
| JOINT TO BRACKET | ||
| 071 | A 3642677187 | CLAMPING PIECE |
| 074 | N 007983003250 | SHEET METAL SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 077 | A 3642687097 | BOOT |
| SHIFT LEVER | ||
| 083 | A 6642600733 | SHIFTING ROD |
| FRONT | ||
| 918 MM | ||
| 089 | A 3642607782 | SHIFTING TUBE |
| 970 MM | ||
| 092 | A 6642600833 | SHIFTING ROD |
| 5153 MM | ||
| 092 | A 6642601033 | SHIFTING ROD |
| 6353 MM | ||
| 101 | A 3642607882 | SHIFTING TUBE |
| 1234 MM | ||
| 104 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 104 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 104 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 107 | A 3222600075 | CONNECTOR |
| 113 | A 6642600933 | SHIFTING ROD |
| 785 MM | ||
| 116 | A 3442687089 | JOINT |
| 116 | A 3442687289 | JOINT |
| 119 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 125 | N 912004008100 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 128 | N 000934008045 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 131 | A 3219900601 | SCREW |
| CONNECTOR TO SHIFTING TUBE | ||
| 134 | A 3222680073 | LOCK |
| CONNECTOR TO SHIFTING TUBE | ||
| 134 | A 3222680073 | LOCK |
| CONNECTOR TO TRANSMISSION | ||
| 137 | A 3649907001 | SCREW |
| CONNECTOR TO TRANSMISSION | ||
| 140 | A 3572680140 | BRACKET |
| SHIFTING TUBE | ||
| 143 | A 3572680050 | BUSHING |
| SHIFTING TUBE | ||
| 146 | A 0002680396 | BOOT |
| SHIFTING TUBE | ||
| 152 | N 000933008116 | SCREW |
| BEARING TO SUBSTRUCTURE | ||
| 155 | N 000125008417 | WASHER |
| BEARING TO SUBSTRUCTURE | ||
| 161 | N 913004008001 | NUT |
| BEARING TO SUBSTRUCTURE |
