Transporto priemonė: O 400 RSD BUGGY; VIN numerio dalis: 664239

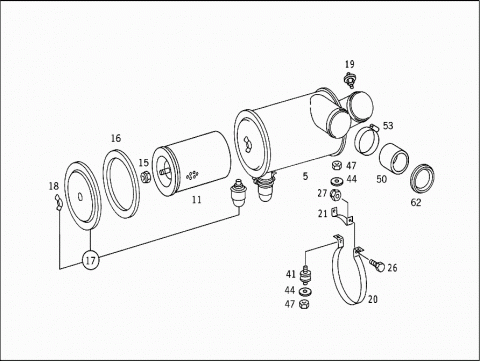

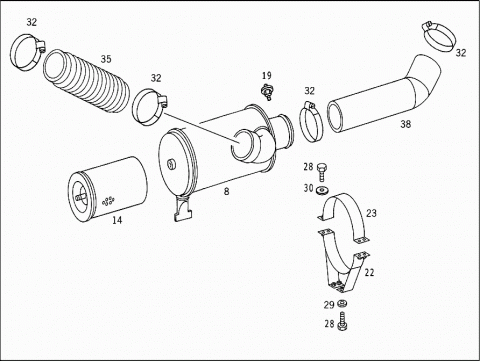

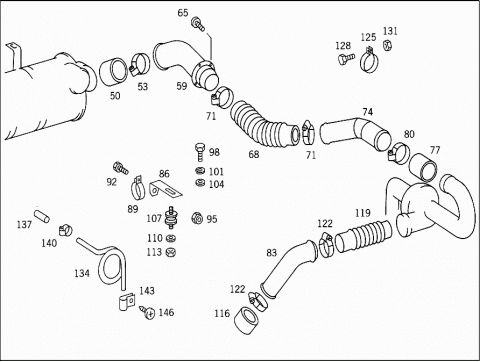

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4750908001 | AIR CLEANER |
| 005 | A 4750908001 | AIR CLEANER |
| 008 | A 4750907701 | AIR CLEANER |
| 011 | A 3880947004 | FILTER ELEMENT |
| PRE-CLEANER | ||
| 011 | A 3880947104 | FILTER ELEMENT |
| SAFETY CARTRIDGE | ||
| 014 | A 3500947004 | FILTER ELEMENT |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| 475 090 77 01 | ||
| 014 | A 3880947004 | FILTER ELEMENT |
| PRE-CLEANER | ||
| 475 090 85 01 | ||
| 015 | N 913001010006 | NUT |
| 016 | A 0020940880 | GASKET |
| A 0000946311 | SCOOP | |
| A 0000944817 | DUST COLLECTOR BOWL | |
| A 0010940055 | FASTENER | |
| 017 | A 0010947106 | COVER |
| 018 | A 3500947072 | NUT |
| 019 | A 3645407145 | SWITCH |
| NOT INCLUDED IN RANGE OF DELIVERY OF: | ||
| A 3645407045 | SWITCH | |
| NOT INCLUDED IN RANGE OF DELIVERY OF: | ||
| 475 090 85 01 | ||
| 019 | A 0000944868 | VACUUM BOX |
| INCLUDED IN RANGE OF DELIVERY OF: | ||
| 475 090 80 01 | ||
| 020 | A 0000941827 | BRACKET |
| Repalced by: A 6645287540 | ||
| 020 | A 6645287540 | BRACKET |
| AIR CLEANER | ||
| 021 | A 6645287640 | BRACKET |
| AIR CLEANER | ||
| 022 | A 3865207067 | STRAP |
| AIR CLEANER | ||
| 023 | A 3865287021 | STRAP |
| AIR CLEANER | ||
| 026 | N 000933008288 | SCREW |
| STRAP TO SUBSTRUCTURE | ||
| M 8X25 | ||
| 027 | N 913004008001 | NUT |
| STRAP TO SUBSTRUCTURE | ||
| M 8X25 | ||
| 028 | N 000933008288 | SCREW |
| STRAP TO SUBSTRUCTURE | ||
| M 8X25 | ||
| 028 | N 000933010174 | SCREW |
| STRAP TO SUBSTRUCTURE | ||
| M 10X25 | ||
| 028 | N 000933010174 | SCREW |
| STRAP TO STRAP | ||
| 028 | N 000933010174 | SCREW |
| STRAP TO STRAP | ||
| 029 | N 000125008417 | WASHER |
| STRAP TO SUBSTRUCTURE | ||
| 030 | N 009021010102 | WASHER |
| STRAP TO SUBSTRUCTURE | ||
| A 10,4 | ||
| 030 | N 009021010102 | WASHER |
| STRAP TO STRAP | ||
| 030 | N 009021010102 | WASHER |
| STRAP TO STRAP | ||
| A 10,4 | ||
| 032 | A 3649970090 | LOOM TIE |
| HOSE TO AIR CLEANER | ||
| 035 | A 6845280182 | HOSE |
| AIR INTAKE | ||
| 035 | A 3648320188 | HOSE |
| AIR INTAKE | ||
| 038 | A 3645280082 | HOSE |
| AIR INTAKE | ||
| 038 | A 6645287582 | HOSE |
| AIR INTAKE | ||
| 038 | A 6645280082 | HOSE |
| AIR INTAKE | ||
| 041 | A 0019873140 | RUBBER BUFFER |
| AIR CLEANER TO BRACKET | ||
| 044 | N 009021010102 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 047 | N 000934010005 | NUT |
| AIR CLEANER TO BRACKET | ||
| 050 | A 6649977082 | HOSE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 050 | A 6649977082 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 050 | A 6649977182 | HOSE |
| AIR INTAKE CASE | ||
| 053 | A 6649977090 | LOOM TIE |
| AIR INTAKE CASE | ||
| 053 | A 6849977190 | LOOM TIE |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 053 | A 6849977190 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 053 | N 916017150000 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 053 | N 916017025000 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER | ||
| 053 | N 916017025000 | CLAMP |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| A 6645208201 | AIR INTAKE PIPE | |
| 059 | A 6645207101 | AIR INTAKE PIPE |
| 062 | A 6645287180 | GASKET |
| AIR INTAKE PIPE | ||
| 065 | N 007985006510 | SCREW |
| AIR INTAKE PIPE | ||
| 068 | A 3645287482 | HOSE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 071 | A 3649970090 | LOOM TIE |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 071 | N 916018130000 | CLAMP |
| AIR INTAKE PIPE TO AIR INTAKE PIPE | ||
| 074 | A 6645286208 | AIR INTAKE PIPE |
| 077 | N 900271130003 | HOSE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 080 | A 3649970090 | LOOM TIE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 080 | N 916018130000 | CLAMP |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | A 6645285708 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | A 6645280008 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 083 | A 6645280108 | AIR INTAKE PIPE |
| FROM AIR INTAKE PIPE TO TURBOCHARGER | ||
| 086 | A 6645287340 | BRACKET |
| AIR INTAKE PIPE | ||
| 086 | A 6645280040 | BRACKET |
| AIR INTAKE PIPE | ||
| 089 | N 071555100500 | CLAMP |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 089 | N 071555085500 | CLAMP |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 092 | N 000933010269 | SCREW |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 095 | N 913004010004 | NUT |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 095 | N 913004010004 | NUT |
| AIR INTAKE PIPE TO ENGINE COMPARTMENT COVERING | ||
| 098 | N 000933008114 | SCREW |
| BRACKET TO FRAME | ||
| 101 | N 912004008100 | LOCK WASHER |
| BRACKET TO FRAME | ||
| 104 | N 000125008417 | WASHER |
| BRACKET TO FRAME | ||
| 107 | A 3885247181 | RUBBER BUFFER |
| Repalced by: A 0019875240 | ||
| 107 | A 0019875240 | RUBBER BUFFER |
| 110 | N 000125008417 | WASHER |
| RUBBER BUFFER TO BRACKET | ||
| 113 | N 000934008010 | NUT |
| RUBBER BUFFER TO BRACKET | ||
| 116 | A 6645287082 | HOSE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 119 | A 3865288682 | HOSE |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 119 | A 0005010182 | ACCORDION TUBE |
| Repalced by: A 0005016182 | ||
| 119 | A 0005016182 | HOSE |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 122 | A 3849977590 | LOOM TIE |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 122 | A 0059970690 | CLAMP |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 122 | A 3849977490 | CLAMP |
| AIR INTAKE PIPE TO PIPE ELBOW | ||
| 122 | A 3849977490 | LOOM TIE |
| FROM AIR INTAKE PIPE TO CHARGING AIR INTERCOOLER | ||
| 125 | N 071555104500 | CLAMP |
| AIR INTAKE PIPE TO BRACKET | ||
| 128 | N 000933010252 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| M 10X30 | ||
| 128 | N 000933010294 | SCREW |
| AIR INTAKE PIPE TO BRACKET | ||
| M 10X20 | ||
| 131 | N 000934010005 | NUT |
| AIR INTAKE PIPE TO BRACKET | ||
| 134 | A 3443517066 | PIPE |
| 137 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 137 | A 3769978182 | HOSE |
| 140 | N 900288010000 | CLAMP |
| Repalced by: N 916002010100 | ||
| 140 | N 916002010100 | CLAMP |
| 140 | N 900288010000 | CLAMP |
| Repalced by: N 916002010100 | ||
| 140 | N 916002010100 | CLAMP |
| 143 | A 3129951401 | CLAMP |
| 146 | N 914127004217 | SHEET METAL SCREW |
