Transporto priemonė: O 400 UPA; VIN numerio dalis: 664290

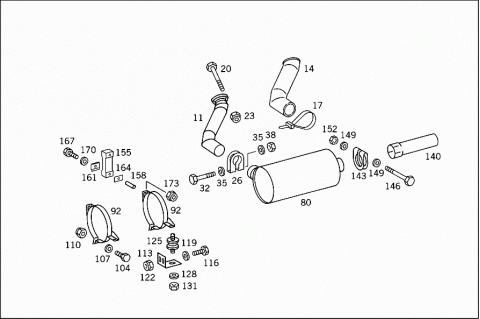

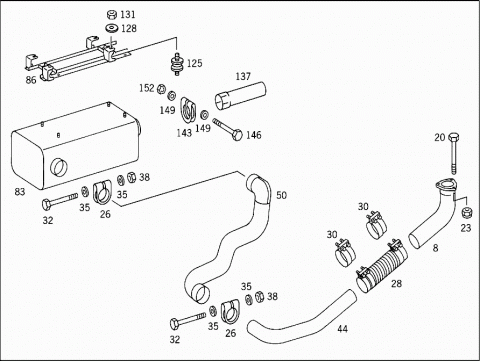

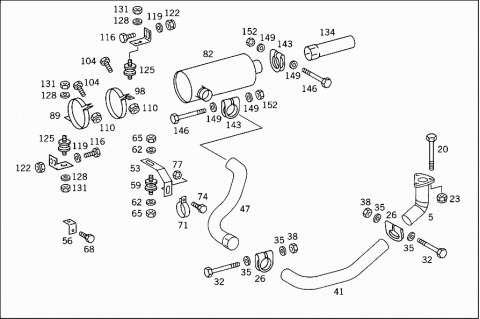

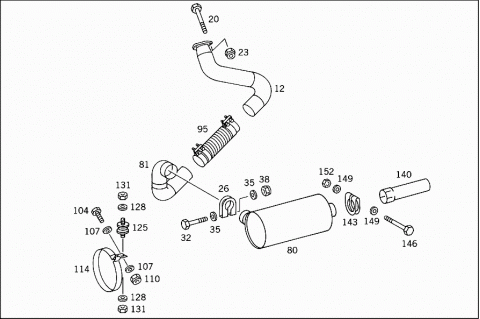

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6644907419 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6644908419 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 6644907819 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 6644908519 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 6644927283 | INSULATION |
| Repalced by: A 6646800025 | ||
| 014 | A 6646800025 | INSULATION |
| 017 | A 3459977790 | LOOM TIE |
| 020 | N 000931012025 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 023 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 026 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 026 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 028 | A 6644907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 6644900165 | ||
| 028 | A 6644900165 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO MUFFLER | ||
| 028 | A 6644900165 | FLEXIBLE METAL TUBE |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 030 | A 6964927140 | CLAMP |
| Repalced by: A 6344920640 | ||
| 030 | A 6344920640 | CLAMP |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 032 | N 000931010431 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 10X160 | ||
| 032 | N 000931010431 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 035 | N 000125010513 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 035 | N 000125010513 | WASHER |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 038 | N 000934010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 038 | N 000934010000 | NUT |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 041 | A 6644928701 | FRONT EXHAUST PIPE |
| 044 | A 6644927902 | FRONT EXHAUST PIPE |
| Repalced by: A 6644900619 | ||
| 044 | A 6644900619 | EXHAUST PIPE |
| 047 | A 6644928801 | FRONT EXHAUST PIPE |
| 050 | A 6644908319 | EXHAUST PIPE |
| A 6644917741 | BRACKET | |
| FRONT EXHAUST PIPE | ||
| 053 | A 6644918441 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 056 | A 6644928241 | BRACKET |
| 059 | A 3475040012 | RUBBER MOUNTING |
| BRACKET TO SUPPORT | ||
| 062 | N 000125010513 | WASHER |
| Repalced by: N 009021010102 | ||
| 062 | N 009021010102 | WASHER |
| BRACKET TO SUPPORT | ||
| 065 | N 000934010000 | NUT |
| BRACKET TO SUPPORT | ||
| 068 | N 000961012193 | SCREW |
| BRACKET TO SUPPORT | ||
| 071 | N 071555114501 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 074 | N 000933010258 | SCREW |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 077 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 080 | A 6644907501 | EXHAUST MUFFLER |
| 083 | A 6644907701 | EXHAUST MUFFLER |
| 081 | A 6644908619 | EXHAUST PIPE |
| 082 | A 6644907401 | EXHAUST MUFFLER |
| 083 | A 6644907601 | EXHAUST MUFFLER |
| 086 | A 6644907240 | BRACKET |
| 089 | A 6644907241 | CLAMP |
| EXHAUST MUFFLER | ||
| 092 | A 6644907841 | CLAMP |
| EXHAUST MUFFLER | ||
| 095 | A 6644907065 | FLEXIBLE METAL TUBE |
| Repalced by: A 6644900165 | ||
| 095 | A 6644900165 | FLEXIBLE METAL TUBE |
| EXHAUST MUFFLER | ||
| 098 | A 6644907141 | CLAMP |
| EXHAUST MUFFLER | ||
| A 6644907641 | CLAMP | |
| 104 | N 000961012020 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 12X1.5X30 | ||
| 104 | N 000961012185 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 12X1.5X55 | ||
| 107 | N 000125013012 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 107 | N 000125013012 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 107 | N 000125013012 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 110 | N 913004012002 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 110 | N 913004012002 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 110 | N 913004012002 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 113 | A 6644917241 | BRACKET |
| EXHAUST MUFFLER | ||
| 114 | A 6644917140 | CLAMP |
| EXHAUST MUFFLER | ||
| 114 | A 6644917140 | CLAMP |
| EXHAUST MUFFLER | ||
| 116 | N 304017008000 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 116 | N 304017008000 | HEXAGON HEAD BOLT |
| BRACKET TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 119 | N 000125008413 | WASHER |
| 119 | N 000125013012 | WASHER |
| A 13 | ||
| 119 | N 000125013012 | WASHER |
| BRACKET TO SUBSTRUCTURE | ||
| 122 | N 913004008013 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 122 | N 913004008013 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 122 | N 913004012002 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 125 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 125 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 125 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 125 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 128 | N 000125010513 | WASHER |
| Repalced by: N 009021010102 | ||
| 128 | N 009021010102 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 128 | N 009021010102 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 128 | N 009021010102 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 131 | N 000934010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 131 | N 913023010002 | NUT |
| BRACKET TO SUBSTRUCTURE | ||
| 134 | A 6644929901 | FRONT EXHAUST PIPE |
| (TAIL PIPE) | ||
| 137 | A 6644927614 | END PIECE |
| (TAIL PIPE) | ||
| 140 | A 6644927114 | END PIECE |
| (TAIL PIPE) | ||
| 143 | A 6644927040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 143 | A 6644927040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 146 | N 000931010431 | SCREW |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| M 10X160 | ||
| 146 | N 000931010431 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 149 | N 000125010513 | WASHER |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 149 | N 000125010513 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 152 | N 000934010000 | NUT |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 152 | N 000934010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 155 | A 3084927082 | DAMPING PAD |
| 158 | A 1209911140 | SPACER TUBE |
| INSULATION TO SUBSTRUCTURE | ||
| 161 | A 1204920118 | BASE PLATE |
| INSULATION TO SUBSTRUCTURE | ||
| 164 | A 6644927183 | INSULATION |
| INSULATION TO SUBSTRUCTURE | ||
| 167 | N 000933008280 | SCREW |
| INSULATION TO SUBSTRUCTURE | ||
| M 8X50 | ||
| 170 | N 000125008417 | WASHER |
| INSULATION TO SUBSTRUCTURE | ||
| 173 | N 913004008001 | NUT |
| INSULATION TO SUBSTRUCTURE | ||
