Transporto priemonė: O 400 UPA; VIN numerio dalis: 664290

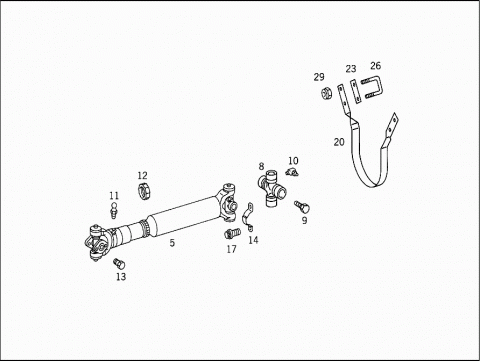

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3754100902 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 005 | A 6644107702 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 005 | A 6644107802 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 008 | A 3954100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 6204100031 | ||
| 008 | A 6204100031 | UNIVERSAL JOINT CROSS |
| TO A 375 410 09 02 | ||
| 008 | A 0004102031 | UNIVERSAL JOINT CROSS |
| TO A 664 410 77 02 | ||
| 008 | A 0004103231 | UNIVERSAL JOINT CROSS |
| 009 | A 0069903601 | SCREW |
| TO A 664 410 77 02 | ||
| 010 | A 0009974788 | GREASE NIPPLE |
| TO A 664 410 77 02 | ||
| 011 | A 0009974888 | GREASE NIPPLE |
| TO A 664 410 77 02 | ||
| 012 | A 6654130061 | PROTECTIVE CAP |
| TO A 664 410 77 02 | ||
| A 6644117006 | COVER | |
| 013 | A 6644117171 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 014 | A 6654117006 | COVER |
| PROPELLER SHAFT TO REAR AXLE | ||
| 017 | A 6654117071 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 020 | A 3644117182 | REBOUND STRAP |
| PROPELLER SHAFT | ||
| 023 | A 3644117084 | SHIM |
| 026 | A 3644137013 | BRACKET |
| 029 | N 913004006001 | NUT |
| REBOUND STRAP TO SUPPORT | ||
