Transporto priemonė: O 400 UP; VIN numerio dalis: 664206

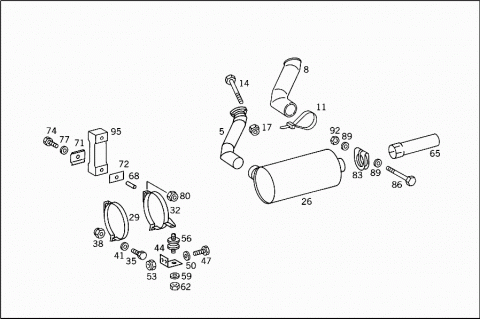

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6644907819 | EXHAUST PIPE |
| 008 | A 6644927283 | INSULATION |
| 011 | A 3459977790 | LOOM TIE |
| 014 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X45 | ||
| 017 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 6644927040 | CLAMP | |
| N 000931010431 | SCREW | |
| N 000125010513 | WASHER | |
| N 000934010000 | NUT | |
| 026 | A 6644907401 | EXHAUST MUFFLER |
| 026 | A 6644907501 | EXHAUST MUFFLER |
| 029 | A 6644907541 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 029 | A 6644907641 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 032 | A 6644907441 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 032 | A 6644907841 | CLAMP |
| CLAMP TO EXHAUST MUFFLER | ||
| 035 | N 000961012185 | SCREW |
| CLAMP TO EXHAUST MUFFLER | ||
| M 12X1.5X55 | ||
| 038 | N 913004012002 | NUT |
| CLAMP TO EXHAUST MUFFLER | ||
| 041 | N 000125013012 | WASHER |
| CLAMP TO EXHAUST MUFFLER | ||
| 044 | A 6644917241 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 047 | N 304017008000 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 8X20 | ||
| 050 | N 000125008413 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 053 | N 913004008013 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 056 | A 3475040012 | RUBBER MOUNTING |
| EXHAUST MUFFLER TO BRACKET | ||
| 059 | N 000125010513 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 062 | N 000934010000 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| A 3644927114 | END PIECE | |
| 065 | A 6644927114 | END PIECE |
| REAR | ||
| 068 | A 1209911140 | SPACER TUBE |
| 071 | A 1204920118 | BASE PLATE |
| RUBBER MOUNTING TO BRACKET | ||
| 072 | A 6644927183 | INSULATION |
| RUBBER MOUNTING TO BRACKET | ||
| 074 | N 000933008280 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| 077 | N 000125008417 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 080 | N 913004008001 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 083 | A 6644927040 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 086 | N 000931010431 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 089 | N 000125010513 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 092 | N 000934010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 095 | A 3084927082 | DAMPING PAD |
| REAR EXHAUST PIPE TO MUFFLER |
