Transporto priemonė: O 404; VIN numerio dalis: 356333

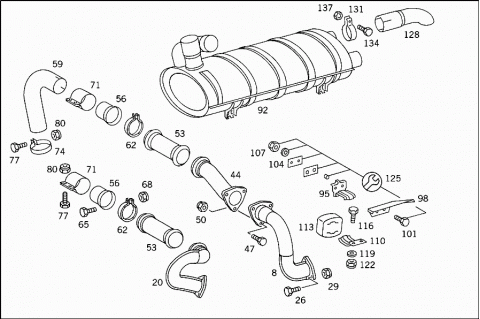

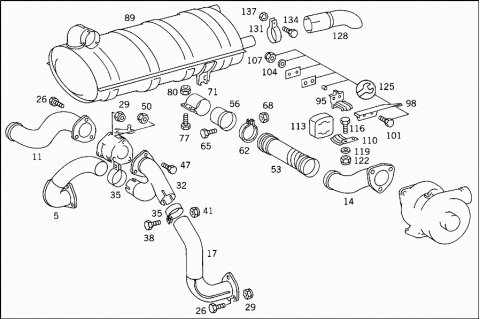

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST SYSTEM | ||
| 005 | A 3564900919 | EXHAUST PIPE |
| 008 | A 3564901319 | EXHAUST PIPE |
| 011 | A 3564901019 | EXHAUST PIPE |
| FROM THROTTLE HOUSING TO FLEXIBLE METAL TUBE | ||
| 014 | A 3564901119 | EXHAUST PIPE |
| FROM THROTTLE HOUSING TO FLEXIBLE METAL TUBE | ||
| 017 | A 3564900819 | EXHAUST PIPE |
| 020 | A 3564901219 | EXHAUST PIPE |
| 026 | N 000931012114 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 000931012114 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 029 | N 999901012000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 999901012000 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 032 | A 3564900124 | COLLECTOR PIPE |
| 032 | A 3564900224 | COLLECTOR PIPE |
| 035 | N 071555078502 | CLAMP |
| FRONT EXHAUST PIPE TO COLLECTOR PIPE | ||
| 038 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO COLLECTOR PIPE | ||
| 041 | N 000934010005 | NUT |
| FRONT EXHAUST PIPE TO COLLECTOR PIPE | ||
| 044 | A 4421400052 | SPACER TUBE |
| FROM LEFT EXHAUST PIPE TO FLEXIBLE METAL TUBE | ||
| 047 | N 000933012071 | SCREW |
| COLLECTOR PIPE TO EXHAUST PIPE | ||
| M 12X40 | ||
| 047 | N 000933012071 | SCREW |
| EXHAUST PIPE TO SPACER TUBE | ||
| M 12X40 | ||
| 047 | N 000933012077 | SCREW |
| COLLECTOR PIPE TO EXHAUST PIPE | ||
| M 12X35 | ||
| 050 | N 999901012000 | NUT |
| COLLECTOR PIPE TO EXHAUST PIPE | ||
| 050 | N 999901012000 | NUT |
| EXHAUST PIPE TO SPACER TUBE | ||
| 053 | A 6214900065 | FLEXIBLE METAL TUBE |
| 056 | A 6214920008 | COLLAR |
| 059 | A 3564921501 | FRONT EXHAUST PIPE |
| 062 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO COLLAR | ||
| 062 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING | ||
| 062 | A 6219970090 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 065 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO COLLAR | ||
| 065 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING | ||
| 065 | N 304017008028 | SCREW |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 068 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO COLLAR | ||
| 068 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO THROTTLE HOUSING | ||
| 068 | N 913004008004 | NUT |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE | ||
| 071 | A 6254920040 | CLAMP |
| COLLAR TO EXHAUST PIPE | ||
| 071 | A 6254920040 | CLAMP |
| SLIDING PIECE TO EXHAUST MUFFLER | ||
| 074 | N 071555104501 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 077 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 077 | N 304017010002 | SCREW |
| COLLAR TO EXHAUST PIPE | ||
| 077 | N 304017010002 | SCREW |
| SLIDING PIECE TO EXHAUST MUFFLER | ||
| 080 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 080 | N 910113010000 | NUT |
| COLLAR TO EXHAUST PIPE | ||
| 080 | N 910113010000 | NUT |
| SLIDING PIECE TO EXHAUST MUFFLER | ||
| 089 | A 3564900101 | EXHAUST MUFFLER |
| 092 | A 3564900001 | EXHAUST MUFFLER |
| 095 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 098 | A 3014910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 101 | N 000933008073 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| M 8X30 | ||
| 104 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 104 | N 000125008443 | WASHER |
| CONSOLE TO EXHAUST MUFFLER | ||
| 107 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 107 | A 0009903250 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 110 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER | ||
| 113 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO CONSOLE | ||
| 116 | N 000933010105 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 119 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 119 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 122 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 122 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 125 | A 3014900037 | SUSPENSION |
| REPAIR KIT | ||
| 128 | A 3564900021 | EXHAUST PIPE |
| TAIL PIPE | ||
| A 3564920204 | REAR EXHAUST PIPE | |
| Repalced by: A 3564900021 | ||
| A 3564900021 | EXHAUST PIPE | |
| TAIL PIPE | ||
| 131 | N 071555094501 | CLAMP |
| Repalced by: N 071555094502 | ||
| 131 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 134 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 137 | N 000934010014 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
