Transporto priemonė: O 404; VIN numerio dalis: 356333

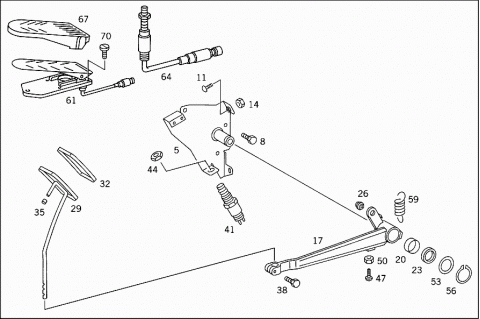

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3562900719 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | N 000933010128 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 011 | A 3012910241 | STOP |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 014 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 014 | N 304035008001 | NUT |
| STOP | ||
| 017 | A 3562900516 | PEDAL |
| CLUTCH | ||
| 020 | A 3059920001 | BUSHING |
| CLUTCH PEDAL | ||
| 023 | A 0099976447 | SEAL RING |
| CLUTCH PEDAL | ||
| 026 | A 0009817031 | JOINT BEARING |
| CLUTCH PEDAL | ||
| 029 | A 3562900424 | PEDAL PLATE |
| CLUTCH | ||
| 032 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 035 | A 1262770081 | COVERING |
| PEDAL PLATE | ||
| 038 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 041 | A 6555400017 | SENDER UNIT |
| CLUTCH OPERATION | ||
| EPS | ||
| 044 | N 074305026202 | NUT |
| SENDER UNIT TO BEARING BRACKET | ||
| 047 | A 3012910241 | STOP |
| SENDER UNIT OPERATION | ||
| 050 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 050 | N 304035008001 | NUT |
| SENDER UNIT OPERATION | ||
| 053 | N 000988030003 | FITTED WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | N 000983028001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 059 | A 3059930610 | SPRING |
| CLUTCH PEDAL RESET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR HYDRAULIC-PNEUMATIC CONTROL,SEE GROUP/TU: | ||
| 25/330 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BRAKE PEDAL UNIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/385 | ||
| 061 | A 0004300518 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 064 | A 0155454132 | CONTROL UNIT |
| RETARDER CONTROL | ||
| 067 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 070 | N 007984008017 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
