Transporto priemonė: O 404; VIN numerio dalis: 356465

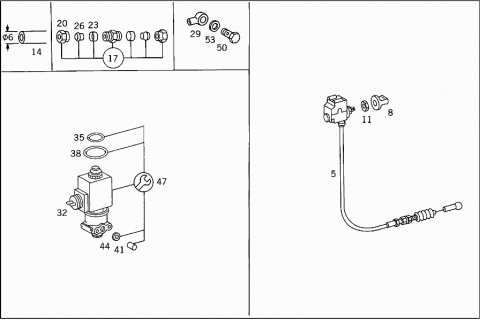

Grupė: 30 CONTROL - 180 IDLING CONTROL AND ENGINE SHUT-OFF
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3563020205 | WIRE |
| MANUAL CONTROL | ||
| 008 | A 3018300134 | KNOB |
| IDLING ADJUSTMENT | ||
| 011 | A 1075450072 | NUT |
| WIRE CABLE TO FRONT CROSS MEMBER | ||
| N 071805010204 | BALL SOCKET | |
| WIRE CABLE TO LEVER | ||
| N 000934006007 | NUT | |
| WIRE CABLE TO LEVER | ||
| N 071805010403 | SECURING CLIP | |
| WIRE CABLE TO LEVER | ||
| 014 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 014 | A 0009872627 | PLASTIC PIPE |
| ENGINE SHUT-OFF | ||
| 4X6 MM | ||
| 017 | A 0039979172 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| 020 | N 915017006100 | UNION NUT |
| 023 | N 003861006007 | GLAND |
| 026 | N 915062004000 | SLEEVE |
| 029 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 029 | N 915052004019 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/16 MM | ||
| 032 | A 0039971136 | VALVE |
| Repalced by: A 0039975336 | ||
| 032 | A 0039975336 | VALVE |
| (3/2-WAY SOLENOID VALVE) ENGINE SHUT-OFF | ||
| 035 | A 0109974448 | SEAL RING |
| 038 | A 0079970248 | SEAL RING |
| 041 | A 0049970640 | SEAL RING |
| 044 | N 007603006100 | SEAL RING |
| 047 | A 0004305660 | REPAIR KIT |
| 3/2-WAY SOLENOID VALVE | ||
| 050 | N 915036012204 | HOLLOW SCREW |
| 3/2-WAY SOLENOID VALVE | ||
| 050 | N 915036008202 | HOLLOW SCREW |
| 3/2-WAY SOLENOID VALVE | ||
| 053 | N 007603016103 | SEAL RING |
| 3/2-WAY SOLENOID VALVE | ||
| 053 | N 007603012110 | SEAL RING |
| 3/2-WAY SOLENOID VALVE | ||
