Transporto priemonė: O 404; VIN numerio dalis: 356465
Grupė: 55 SPECIAL INSTALLATIONS - 090 COMPRESSOR
| # | Kodas | Pavadinimas |
|---|---|---|

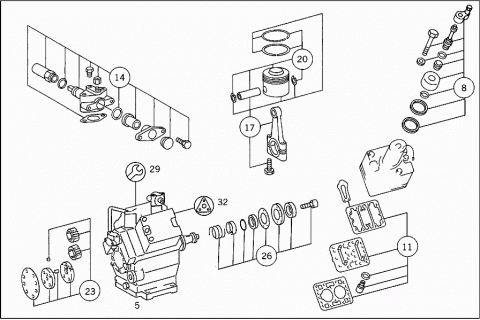

| 005 | A 0041316701 | COMPRESSOR |
| Repalced by: A 0041318701 | ||
| 005 | A 0041318701 | COMPRESSOR |
| POWER CONTROLLED | ||
| 008 | A 0001311988 | MAGNET |
| 011 | A 0001307820 | VALVE |
| PARTS KIT | ||
| 014 | A 0001307720 | VALVE |
| (SUCTION VALVE) | ||
| 017 | A 0001302516 | CONNECTING ROD |
| ASSEMBLY KIT | ||
| 020 | A 0001301717 | PISTON |
| ASSEMBLY KIT | ||
| 023 | A 0001300230 | GEAR |
| (PARTS KIT),OIL PUMP | ||
| 026 | A 0001300332 | BEARING CAP |
| Repalced by: A 0001300432 | ||
| 026 | A 0001300432 | BEARING CAP |
| PARTS KIT | ||
| 029 | A 0001302215 | REPAIR KIT |
| CRANKSHAFT BEARINGS | ||
| 032 | A 0001302315 | GASKET KIT |
| AIR COMPRESSOR | ||
| 038 | A 4420350014 | INTERMEDIATE PIECE |
| 041 | N 000933008151 | SCREW |
| PULLEY TO ENGINE | ||

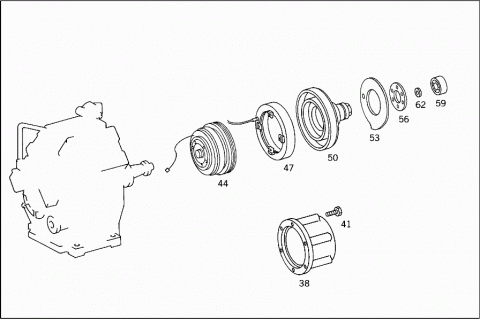

| 044 | A 0005521608 | COUPLING |
| COMPLETE | ||
| 047 | A 0001311688 | MAGNET |
| 050 | A 0001327608 | COUPLING |
| 053 | A 0001320376 | WASHER |
| 056 | A 0001310893 | SPRING |
| 059 | A 0009800305 | THRUST BEARING |
| 062 | A 0049902040 | WASHER |
| A 0001320715 | PULLEY | |
| 068 | N 000835010111 | STUD |
| Repalced by: A 0019900505 | ||
| 068 | A 0019900505 | STUD |
| COMPRESSOR TO MOUNTING PLATE | ||
| 071 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 071 | N 000125010532 | WASHER |
| COMPRESSOR TO MOUNTING PLATE | ||
| 074 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 074 | N 910113010000 | NUT |
| COMPRESSOR TO MOUNTING PLATE | ||
| A 0029906968 | FITTING | |
| REFRIGERANT COMPRESSOR | ||

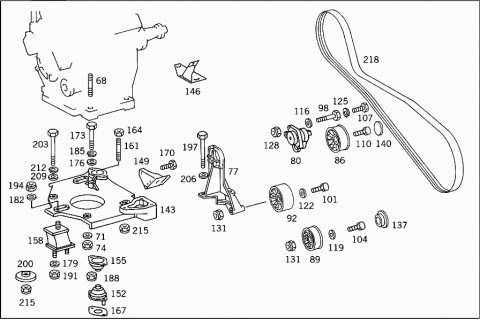

| 077 | A 3565521318 | BEARING BRACKET |
| BELT TIGHTENER | ||
| 080 | A 3565500433 | TENSION ROLLER |
| 086 | A 4422000770 | BELT TIGHTENER |
| 089 | A 4422000470 | BELT TIGHTENER |
| 092 | A 0005500033 | TENSION ROLLER |
| 098 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 098 | N 304017008028 | SCREW |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 101 | N 000912010031 | SCREW |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 104 | N 000912010047 | SCREW |
| TIGHTENER PULLEY TO BRACKET ON ENGINE | ||
| 107 | N 000933008150 | SCREW |
| Repalced by: N 304017008018 | ||
| 107 | N 304017008018 | SCREW |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| SA 22400 | ||
| 110 | N 000912010119 | SCREW |
| Repalced by: N 000912010219 | ||
| 110 | N 000912010219 | SCREW |
| TIGHTENER PULLEY TO BELT TIGHTENER | ||
| 116 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 116 | N 000125008443 | WASHER |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 119 | A 3569901040 | WASHER |
| TIGHTENER PULLEY TO BRACKET ON ENGINE | ||
| 122 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 122 | N 000125010532 | WASHER |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 125 | N 912004008102 | LOCK WASHER |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| SA 22400 | ||
| 128 | N 913004008004 | NUT |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 131 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 131 | N 910113010000 | NUT |
| TIGHTENER PULLEY TO BEARING BRACKET | ||
| 131 | N 910113010000 | NUT |
| TIGHTENER PULLEY TO BRACKET ON ENGINE | ||
| 137 | A 1192020022 | COVER |
| TIGHTENER PULLEY | ||
| 140 | A 6012020522 | COVER |
| TIGHTENER PULLEY | ||
| SA 22400 | ||
| 143 | A 3565520639 | SUPPORTING PLATE |
| 146 | A 3565500240 | BRACKET |
| 149 | A 3565500340 | BRACKET |
| 152 | A 0005530586 | RUBBER MOUNTING |
| 155 | A 0005530386 | RUBBER MOUNTING |
| 158 | A 0005530686 | RUBBER MOUNTING |
| 161 | A 3569970119 | THREADED PIN |
| RUBBER MOUNT | ||
| 164 | N 000934012021 | NUT |
| RUBBER MOUNT | ||
| 167 | A 3565520076 | WASHER |
| RUBBER MOUNTING TO SUBSTRUCTURE | ||
| 170 | N 000933008301 | SCREW |
| BRACKET TO MOUNTING PLATE | ||
| 173 | N 000912008203 | SCREW |
| RUBBER MOUNTING TO MOUNTING PLATE | ||
| 173 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 173 | N 304017008028 | SCREW |
| RUBBER MOUNTING TO MOUNTING PLATE | ||
| 176 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 176 | N 000125008443 | WASHER |
| 179 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 179 | N 000125010532 | WASHER |
| 182 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 182 | N 000125017016 | WASHER |
| 185 | N 912004008102 | LOCK WASHER |
| 188 | N 913004008004 | NUT |
| 191 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 191 | N 910113010000 | NUT |
| 194 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 194 | N 910113016002 | NUT |
| 197 | N 000835008077 | STUD |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 200 | A 3565520176 | WASHER |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 203 | N 000933012058 | SCREW |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 203 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 203 | N 304017008021 | SCREW |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 206 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 206 | N 000125008443 | WASHER |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 206 | N 000125008443 | WASHER |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 209 | N 000125013008 | WASHER |
| 209 | N 009021013200 | WASHER |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 212 | N 912004012100 | LOCK WASHER |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 215 | N 913004008004 | NUT |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 215 | N 913004008004 | NUT |
| BEARING BRACKET TO MOUNTING PLATE | ||
| 215 | N 000934012021 | NUT |
| MOUNTING PLATE TO SUBSTRUCTURE | ||
| 218 | A 0109974292 | V-BELT |
| 218 | A 0109972992 | V-BELT |
