Transporto priemonė: O 405; VIN numerio dalis: 612021

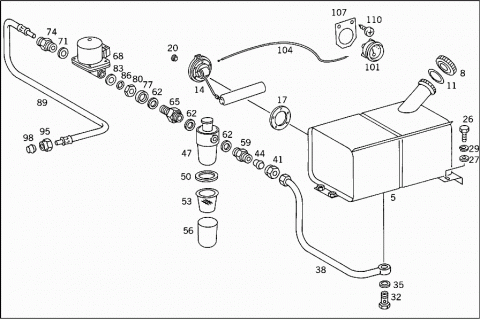

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3574800601 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 20 L | ||
| 008 | A 0004810403 | COVER |
| 011 | A 1104710280 | GASKET |
| 014 | A 0015429817 | SENDER UNIT |
| 017 | A 0005420880 | GASKET |
| 020 | A 0169975848 | SEAL RING |
| 026 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 026 | N 304017008016 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| 027 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 027 | N 000125008443 | WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 029 | N 912004008102 | LOCK WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 032 | N 915036008100 | HOLLOW SCREW |
| LINE TO OIL TANK | ||
| Repalced by: N 000000004749 | ||
| 032 | N 000000004749 | SCREW |
| LINE TO OIL TANK | ||
| 035 | N 007603012405 | SEAL RING |
| LINE TO OIL TANK | ||
| 038 | A 3574800915 | OIL LINE |
| FROM OIL TANK TO FILTER | ||
| 038 | A 3574801815 | OIL LINE |
| FROM OIL TANK TO FILTER | ||
| 041 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 041 | N 000000006239 | UNION NUT |
| 044 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 044 | A 0019901967 | SEAL CONE |
| 047 | A 0004810360 | FILTER |
| OIL | ||
| 050 | A 0004810062 | SEAL RING |
| 053 | A 0004810459 | FILTER ELEMENT |
| 056 | A 0004810158 | FILTER BOWL |
| 059 | A 3574810409 | FILLER NECK |
| OIL LINE TO FILTER | ||
| 062 | A 3574810062 | SEAL RING |
| OIL LINE TO FILTER | ||
| 065 | A 3574810309 | FILLER NECK |
| OIL LINE TO FILTER | ||
| 068 | A 0004810191 | VALVE |
| SOLENOID | ||
| 071 | N 007603014106 | SEAL RING |
| VALVE TO BRACKET | ||
| 074 | A 0029977472 | FITTING |
| SOLENOID VALVE | ||
| 077 | A 3199970240 | SEAL RING |
| VALVE | ||
| 080 | N 080705014002 | NUT |
| VALVE | ||
| 083 | A 0004290627 | THRUST RING |
| VALVE | ||
| 086 | A 0079974245 | SEAL RING |
| VALVE | ||
| 089 | A 0119979382 | HOSE |
| FROM SOLENOID VALVE TO ENGINE OIL FILLER NECK | ||
| 095 | N 915017012100 | UNION NUT |
| HOSE TO FILLER NECK | ||
| Repalced by: N 000000006239 | ||
| 095 | N 000000006239 | UNION NUT |
| HOSE TO FILLER NECK | ||
| 098 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 098 | A 0019901967 | SEAL CONE |
| HOSE TO FILLER NECK | ||
| 101 | A 0005423714 | INDICATOR |
| OIL SUPPLY | ||
| 104 | A 0009961772 | PULL |
| 107 | A 3574810240 | BRACKET |
| OIL LEVEL INDICATOR | ||
| 110 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 110 | N 000000000460 | SHEET METAL SCREW |
| BRACKET TO SUBSTRUCTURE | ||
