Transporto priemonė: O 405 GAS; VIN numerio dalis: 357090

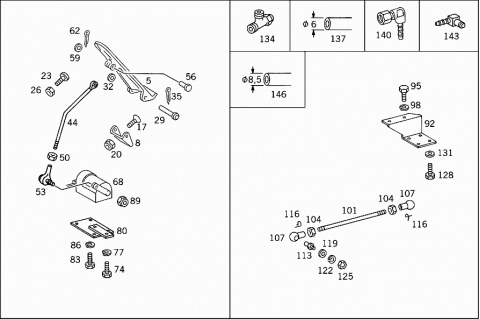

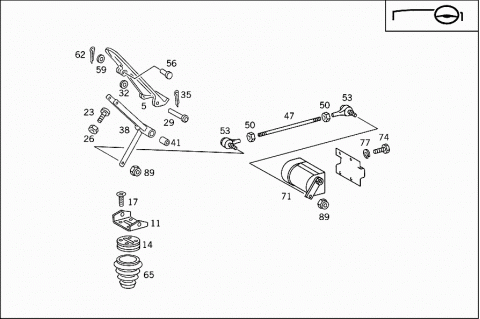

Grupė: 30 CONTROL - 140 ELECTRONIC ACCELERATOR PEDAL CONTROL

#	Kodas	Pavadinimas
005	A 3073010002	PEDAL PLATE
008	A 3023010105	ARTICULATION PIECE
008	A 3013010305	ARTICULATION PIECE
011	A 3573010005	ARTICULATION PIECE
014	A 3573000053	SLEEVE
		ARTICULATION ELEMENT TO FLOOR
017	N 000963008004	SCREW
		ARTICULATION ELEMENT TO FLOOR
017	N 000963008004	SCREW
		ARTICULATION ELEMENT TO FLOOR
020	N 913004008004	NUT
		ARTICULATION ELEMENT TO FLOOR
023	A 0009906233	SCREW
		PEDAL STOP
023	A 0009906233	SCREW
		PEDAL STOP
026	N 000439008211	NUT
	Repalced by: N 304035008001
026	N 304035008001	NUT
		PEDAL STOP
026	N 304035008001	NUT
		PEDAL STOP
029	N 001444010224	PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
029	N 001444010224	PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
032	N 000125010518	WASHER
	Repalced by: N 000125010532
032	N 000125010532	WASHER
		PEDAL PLATE TO ARTICULATION ELEMENT
032	N 000125010532	WASHER
		PEDAL PLATE TO ARTICULATION ELEMENT
035	N 000094003219	COTTER PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
035	N 000094003219	COTTER PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
038	A 3573002521	BEARING TUBE
041	A 3550720150	BUSHING
044	A 3573002415	ROD
		FROM ACCELERATOR PEDAL TO SENDER UNIT
047	N 900331008419	PULL ROD
		FROM ACCELERATOR PEDAL TO SENDER UNIT
050	N 304032008006	NUT
		ROD
053	A 0003010322	JOINT
		ROD
056	N 001444006220	PIN
		ROD TO PEDAL PLATE
056	N 001444006220	PIN
		ACCELERATOR PEDAL TO LEVER
059	N 000125006421	WASHER
		ROD TO PEDAL PLATE
	Repalced by: N 000125006449
059	N 000125006449	WASHER
		ROD TO PEDAL PLATE
059	N 000125006449	WASHER
		ACCELERATOR PEDAL TO LEVER
062	N 000094001617	COTTER PIN
		ROD TO PEDAL PLATE
062	N 000094001617	COTTER PIN
		ACCELERATOR PEDAL TO LEVER
065	A 3573010097	BOOT
		ACCELERATOR PEDAL
068	A 0085426717	SENDER UNIT
		ELECTRONIC ACCELERATOR
071	A 0125422317	SENDER UNIT
		ELECTRONIC ACCELERATOR
074	N 000933006103	SCREW
	Repalced by: N 304017006018
074	N 304017006018	SCREW
		SENDER UNIT TO BRACKET
077	N 912004006102	LOCK WASHER
		SENDER UNIT TO BRACKET
080	A 3573012140	BRACKET
		SENDER UNIT
083	N 000933008130	SCREW
	Repalced by: N 304017008039
083	N 304017008039	SCREW
		BRACKET TO SUBSTRUCTURE
086	N 912004008102	LOCK WASHER
		BRACKET TO SUBSTRUCTURE
089	N 910113008003	NUT
		PULL ROD TO INDUCTIVE PICKUP
092	A 3575421540	BRACKET
		(LOAD RANGE SENSOR)
095	N 000933006183	SCREW
	Repalced by: N 304017006016
095	N 304017006016	SCREW
		BRACKET TO INTAKE MANIFOLD
098	N 912004006102	LOCK WASHER
		BRACKET TO INTAKE MANIFOLD
101	N 900331006615	PULL ROD
		(LOAD RANGE SENSOR)
		6X200X90/90
104	N 304032006004	NUT
		BALL SOCKET TO ROD
107	N 071805010204	BALL SOCKET
		CONTROL ROD
107	A 4419915122	BALL SOCKET
	Repalced by: A 0009915222
107	A 0009915222	BALL SOCKET
		LEFT
107	A 4419915022	BALL SOCKET
		RIGHT
113	N 071803010102	BALL PIVOT
	Repalced by: N 071803010301
113	N 071803010301	BALL PIVOT
		CONTROL ROD
	Repalced by: N 000000004467
113	N 000000004467	SCREW
		CONTROL ROD
116	N 071805010403	CIRCLIP
		BALL SOCKET
119	N 000125006421	WASHER
		LINK TO LEVER
	Repalced by: N 000125006449
119	N 000125006449	WASHER
		LINK TO LEVER
122	N 912004006102	LOCK WASHER
		LINK TO LEVER
125	N 304032006004	NUT
		LINK TO LEVER
128	N 304017006002	SCREW
		SENDER UNIT TO BRACKET
131	N 000125006421	WASHER
		SENDER UNIT TO BRACKET
	Repalced by: N 000125006449
131	N 000125006449	WASHER
		SENDER UNIT TO BRACKET
134	A 0029901170	T-FITTING
		ENGINE SHUT-OFF
137	A 0009872627	PLASTIC PIPE
		ENGINE SHUT-OFF
140	A 0029905271	ELBOW FITTING
		ENGINE SHUT-OFF
143	A 0019907871	ELBOW FITTING
	Repalced by: A 0049905271
143	A 0049905271	ELBOW FITTING
		ENGINE SHUT-OFF
146	A 0005467130	INSULATING HOSE
		I.D.,
		8.5 MM
