Transporto priemonė: O 405 GAS; VIN numerio dalis: 357090

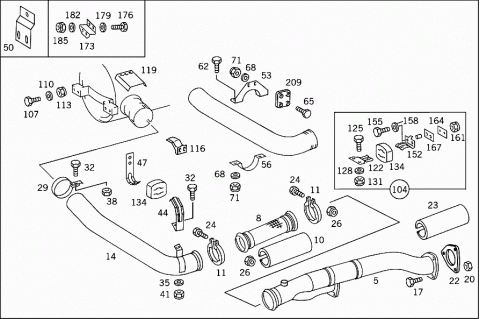

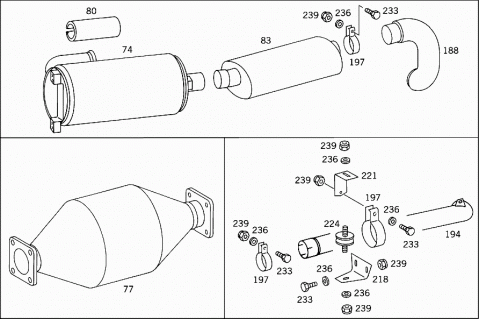

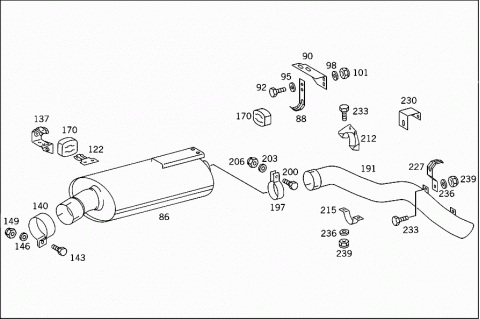

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3574901125 | CONNECTOR |
| Repalced by: A 3574905521 | ||
| 005 | A 3574905521 | EXHAUST PIPE |
| Repalced by: A 3574900320 | ||
| 005 | A 3574900320 | EXHAUST PIPE |
| EXHAUST SYSTEM | ||
| 005 | A 3574900420 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3574921559 | FLEXIBLE METAL TUBE |
| Repalced by: A 3574921659 | ||
| 008 | A 3574921659 | FLEXIBLE METAL TUBE |
| EXHAUST | ||
| 008 | A 3574921359 | FLEXIBLE METAL TUBE |
| Repalced by: A 3574921759 | ||
| 008 | A 3574921759 | FLEXIBLE METAL TUBE |
| EXHAUST | ||
| 010 | A 3574920283 | INSULATION |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 010 | A 3574920383 | INSULATION |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 011 | A 6219970090 | CLAMP |
| Repalced by: A 3574921340 | ||
| 011 | A 3574921340 | CLAMP |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| A 3574906221 | EXHAUST PIPE | |
| Repalced by: A 3574900420 | ||
| 014 | A 3574906319 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3574906319 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 3574906019 | EXHAUST PIPE |
| FRONT | ||
| 017 | N 000931012132 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 017 | A 0109904401 | SCREW |
| Repalced by: N 000933010347 | ||
| 017 | N 000933010347 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 020 | N 999901012000 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 020 | A 0049905351 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 020 | A 0049905651 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 022 | A 3574920080 | FLANGE GASKET |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 023 | A 3574920683 | INSULATION |
| 024 | N 304017008028 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 024 | A 0109906201 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 026 | N 913004008004 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 026 | A 0049905251 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 026 | A 0049905551 | NUT |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| 029 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 029 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 029 | N 071555104501 | CLAMP |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 029 | A 3574921440 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | N 304017010019 | SCREW |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 032 | N 304017010019 | SCREW |
| FRONT EXHAUST MUFFLER | ||
| 032 | A 0109904301 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 032 | A 0109904301 | SCREW |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 035 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 035 | N 000125010532 | WASHER |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 035 | N 000125010532 | WASHER |
| FRONT EXHAUST MUFFLER | ||
| 038 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 038 | N 910113010000 | NUT |
| FRONT EXHAUST MUFFLER | ||
| 038 | A 0049905251 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | A 0049905251 | NUT |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 038 | A 0049905551 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | A 0049905551 | NUT |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 041 | N 910113010000 | NUT |
| BRACKET TO FRONT EXHAUST PIPE | ||
| 044 | A 6244910541 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 044 | A 6244910541 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 044 | A 6244910541 | BRACKET |
| REAR MUFFLER SUSPENSION | ||
| 047 | A 3964923241 | BRACKET |
| AT BRACKET | ||
| 050 | A 3574924941 | BRACKET |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 053 | A 3574900640 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 056 | A 3574922141 | BRACKET |
| AT BRACKET | ||
| A 3574910030 | PROTECTIVE PLATE | |
| FRONT EXHAUST PIPE | ||
| 062 | N 304017008021 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 062 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| N 304017010019 | SCREW | |
| BRACKET TO SUBSTRUCTURE | ||
| 065 | N 000931008244 | SCREW |
| FRONT EXHAUST PIPE REAR PART TO DAMPING PAD | ||
| 068 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 068 | N 000125008443 | WASHER |
| FRONT EXHAUST PIPE SUSPENSION | ||
| N 000125010532 | WASHER | |
| BRACKET TO SUBSTRUCTURE | ||
| 071 | N 910113008003 | NUT |
| FRONT EXHAUST PIPE SUSPENSION | ||
| N 910113010000 | NUT | |
| BRACKET TO SUBSTRUCTURE | ||
| 074 | A 0004900414 | CATALYST |
| 077 | A 0004900314 | CATALYST |
| 080 | A 3574920583 | INSULATION |
| 080 | A 3574920583 | INSULATION |
| EXHAUST MUFFLER TO EXHAUST MUFFLER | ||
| 083 | A 3574902401 | EXHAUST MUFFLER |
| Repalced by: A 3574903001 | ||
| 083 | A 3574903001 | EXHAUST MUFFLER |
| (POSTERIOR MUFFLER) | ||
| 086 | A 3574902301 | EXHAUST MUFFLER |
| Repalced by: A 3574902901 | ||
| 086 | A 3574902901 | EXHAUST MUFFLER |
| (POSTERIOR MUFFLER) | ||
| 088 | A 6204926241 | BRACKET |
| REAR MUFFLER SUSPENSION | ||
| 090 | A 3574923941 | BRACKET |
| REAR MUFFLER SUSPENSION | ||
| 092 | N 000933010105 | SCREW |
| REAR MUFFLER SUSPENSION | ||
| 092 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST MUFFLER | ||
| 095 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 095 | N 000125010532 | WASHER |
| REAR MUFFLER SUSPENSION | ||
| 095 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 095 | N 009021008213 | WASHER |
| BRACKET TO EXHAUST MUFFLER | ||
| Repalced by: N 000000003250 | ||
| 095 | N 000000003250 | WASHER |
| BRACKET TO EXHAUST MUFFLER | ||
| 098 | N 000433008406 | WASHER |
| BRACKET TO EXHAUST MUFFLER | ||
| 101 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 101 | N 910113010000 | NUT |
| REAR MUFFLER SUSPENSION | ||
| 101 | N 910113008003 | NUT |
| BRACKET TO EXHAUST MUFFLER | ||
| 104 | A 3014900037 | SUSPENSION |
| EXHAUST MUFFLER,FRONT | ||
| 107 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 107 | N 304017008027 | SCREW |
| MAIN MUFFLER SUSPENSION | ||
| 110 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 110 | N 000125008443 | WASHER |
| MAIN MUFFLER SUSPENSION | ||
| 113 | N 999901008000 | NUT |
| MAIN MUFFLER SUSPENSION | ||
| 116 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 119 | A 3574910230 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 122 | A 3014910015 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 122 | A 3014910015 | CONSOLE |
| REAR MUFFLER SUSPENSION | ||
| 122 | A 3014910015 | CONSOLE |
| REAR EXHAUST PIPE | ||
| 125 | N 304017010019 | SCREW |
| FRONT EXHAUST MUFFLER | ||
| 128 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 128 | N 000125010532 | WASHER |
| FRONT EXHAUST MUFFLER | ||
| 131 | N 910113010000 | NUT |
| FRONT EXHAUST MUFFLER | ||
| 134 | A 3004920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 137 | A 3574900134 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 140 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 140 | N 071555100501 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 143 | N 000933010328 | SCREW |
| REAR EXHAUST MUFFLER | ||
| 146 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 146 | N 000125010532 | WASHER |
| REAR EXHAUST MUFFLER | ||
| 149 | N 910113010000 | NUT |
| REAR EXHAUST MUFFLER | ||
| 152 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 155 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 155 | N 304017008034 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 158 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 161 | N 910113008003 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 164 | A 3004910183 | INSULATION |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 2MM | ||
| 167 | A 3004910283 | INSULATION |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 4MM | ||
| 170 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 170 | A 3004920082 | DAMPING PAD |
| REAR MUFFLER SUSPENSION | ||
| 170 | A 3004920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 173 | A 3574924341 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 176 | N 304017010019 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 176 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 176 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 179 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 179 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 179 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 182 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 182 | N 009021008213 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 185 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 185 | N 910113008003 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 188 | A 3574906321 | EXHAUST PIPE |
| REAR | ||
| 191 | A 3574905621 | EXHAUST PIPE |
| Repalced by: A 3574906121 | ||
| 191 | A 3574906121 | EXHAUST PIPE |
| REAR | ||
| 194 | A 3574906621 | EXHAUST PIPE |
| REAR | ||
| 197 | N 071555114500 | CLAMP |
| Repalced by: A 6554920340 | ||
| 197 | A 6554920340 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 197 | A 3574900041 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 197 | A 3574921540 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 197 | A 3574921440 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 200 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 200 | N 304017012020 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 200 | A 0109904401 | SCREW |
| Repalced by: N 000933010347 | ||
| 200 | N 000933010347 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 203 | N 000125013008 | WASHER |
| 206 | N 913002012004 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 206 | A 0049905351 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 206 | A 0049905251 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 206 | A 0049905551 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 209 | A 0004920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 212 | A 3574900640 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 215 | A 3574922141 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 218 | A 3574924141 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 221 | A 3574924641 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 224 | A 0019875240 | RUBBER BUFFER |
| REAR EXHAUST PIPE | ||
| 224 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE | ||
| 227 | A 6194920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 230 | A 3574920317 | ANGLE |
| Repalced by: A 3574920517 | ||
| 230 | A 3574920417 | ANGLE |
| Repalced by: A 3574920517 | ||
| 230 | A 3574920517 | ANGLE |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 233 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M8X20 | ||
| 233 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M8X20 | ||
| 233 | N 000933008154 | SCREW |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| M8X22 | ||
| 233 | N 000933010145 | SCREW |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 233 | A 0109904301 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 236 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 236 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE | ||
| 236 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 236 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 239 | N 910113008003 | NUT |
| REAR EXHAUST PIPE | ||
| 239 | N 910113008003 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 239 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 239 | A 0009903250 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 239 | N 910113010001 | NUT |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
