Transporto priemonė: O 405 GN; VIN numerio dalis: 612512

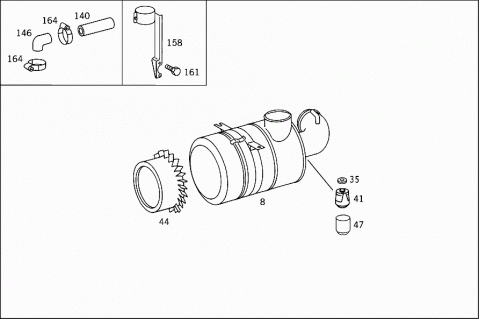

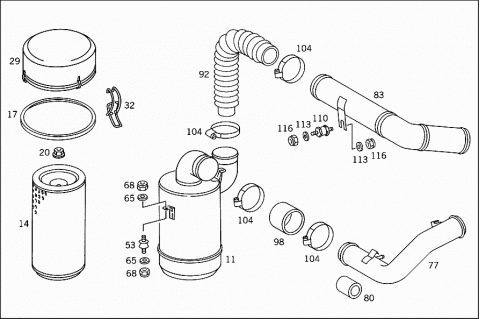

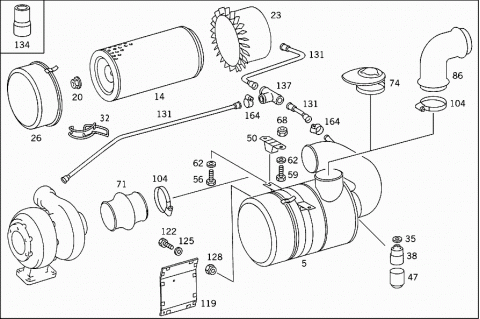

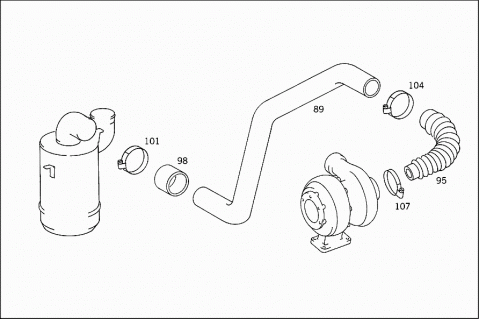

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE

#	Kodas	Pavadinimas
005	A 0170943002	AIR CLEANER
008	A 0180943702	AIR CLEANER
011	A 0170942002	AIR CLEANER
014	A 0010947904	FILTER ELEMENT
	A 0010940980	GASKET
017	A 0010949880	GASKET
020	A 0009901550	NUT
023	A 0000942205	SEPARATOR
		TO 017 094 30 02
026	A 0010940903	FILTER BOWL
029	A 0010941203	FILTER BOWL
032	A 0000941255	FASTENER
035	A 0000940276	WASHER
		FELT
038	A 0000940968	MAINTENANCE INDICATOR
		FELT
038	A 0000940968	MAINTENANCE INDICATOR
		FELT
041	A 0000945368	VACUUM BOX
044	A 0010948506	COVER
047	A 0000940089	CAP
		AIR CLEANER
050	A 0009885511	BUFFER
		AIR CLEANER TO SUBSTRUCTURE
053	A 3225040212	RUBBER MOUNTING
		AIR CLEANER
056	N 000933008212	SCREW
	Repalced by: N 304017008016
056	N 304017008016	SCREW
		BUFFER TO AIR CLEANER
059	N 000933008145	SCREW
		BUFFER TO SUBSTRUCTURE
062	N 009021008205	WASHER
	Repalced by: N 009021008213
062	N 009021008213	WASHER
		BUFFER TO AIR CLEANER
	Repalced by: N 000000003250
062	N 000000003250	WASHER
		BUFFER TO AIR CLEANER
062	N 000000003250	WASHER
		BUFFER TO SUBSTRUCTURE
065	N 000125008443	WASHER
		BUFFER TO AIR CLEANER
065	N 000125008443	WASHER
		BUFFER TO SUBSTRUCTURE
068	N 910113008003	NUT
		BUFFER TO SUBSTRUCTURE
068	N 910113008003	NUT
		BUFFER TO AIR CLEANER
068	N 910113008003	NUT
		BUFFER TO SUBSTRUCTURE
071	A 3075280291	BOOT
		FROM AIR INTAKE PIPE TO AIR CLEANER
071	A 3075280291	BOOT
		FROM AIR CLEANER TO TURBOCHARGER
074	A 0010943406	COVER
077	A 3575202201	AIR INTAKE PIPE
		FROM AIR CLEANER TO TURBOCHARGER
080	A 5421340382	HOSE
		FROM AIR CLEANER TO TURBOCHARGER
083	A 3575201401	AIR INTAKE PIPE
		AIR CLEANER
086	A 3575282008	AIR INTAKE PIPE
		FROM AIR CLEANER TO TURBOCHARGER
089	A 3575201201	AIR INTAKE PIPE
		FROM AIR CLEANER TO TURBOCHARGER
089	A 3575201601	AIR INTAKE PIPE
		FROM AIR CLEANER TO TURBOCHARGER
092	A 6525280082	HOSE
		CONNECTION OF AIR INTAKE PIPES
095	A 3575280082	HOSE
		AIR INTAKE PIPE TO TURBOCHARGER
098	N 900271132005	HOSE
		FROM AIR CLEANER TO ENGINE INTAKE PIPE
098	N 900271132005	HOSE
		FROM AIR INTAKE PIPE TO ENGINE
098	N 900271132005	HOSE
		FROM AIR INTAKE PIPE TO AIR CLEANER
101	N 916017130000	CLAMP
	Repalced by: N 000000000678
101	N 000000000678	CLAMP
		BOOT TO AIR DUCT AND TO AIR CLEANER
	Repalced by: N 000000005892
101	N 000000005892	CLAMP
		BOOT TO AIR DUCT AND TO AIR CLEANER
101	N 000000005892	CLAMP
		AIR INTAKE PIPE TO AIR CLEANER AND TO INTAKE PIPE SOCKET
101	N 000000005892	CLAMP
		BOOT TO AIR CLEANER AND TO TURBOCHARGER
101	N 000000005892	CLAMP
		FROM AIR INTAKE PIPE TO AIR CLEANER
101	N 000000005892	CLAMP
		CONNECTION OF AIR INTAKE PIPES
104	N 000000000676	CLAMP
		CONNECTION OF AIR INTAKE PIPES
	Repalced by: N 000000005890
104	N 000000005890	CLAMP
		CONNECTION OF AIR INTAKE PIPES
104	N 916017080000	CLAMP
	Repalced by: N 000000000675
104	N 000000000675	CLAMP
	Repalced by: A 0059972990
104	A 0059972990	CLAMP
		HOSE TO AIR INTAKE PIPE
		82 - 105 X 15.8 MM
107	N 916017070000	CLAMP
	Repalced by: N 000000000674
107	N 000000000674	CLAMP
		HOSE TO TURBOCHARGER
110	A 0019875240	RUBBER BUFFER
		AIR INTAKE PIPE
113	N 000125008443	WASHER
		BUFFER TO SUBSTRUCTURE
116	N 910113008003	NUT
		BUFFER TO SUBSTRUCTURE
119	A 3574900030	PROTECTIVE PLATE
	Repalced by: A 3574900630
119	A 3574900630	PROTECTIVE PLATE
122	N 000933006130	SCREW
		PROTECTIVE PLATE TO AIR CLEANER
125	N 009021006205	WASHER
	Repalced by: N 009021006208
125	N 009021006208	WASHER
		PROTECTIVE PLATE TO AIR CLEANER
128	N 913004006002	NUT
	Repalced by: N 913004006001
128	N 913004006001	NUT
		PROTECTIVE PLATE TO AIR CLEANER
131	A 3909970682	HOSE
		FROM AIR CLEANER TO AIR COMPRESSOR
131	A 3909970682	HOSE
		FROM AIR CLEANER TO AIR COMPRESSOR
131	A 3909970682	HOSE
		BREATHER LINE
134	A 0005200086	HOSE
		FROM AIR CLEANER TO AIR COMPRESSOR
137	A 3575200095	CENTRAL PART
		T-FITTING
137	A 3575200095	CENTRAL PART
		T-FITTING
140	A 6125280082	HOSE
	Repalced by: N 900271035008
140	N 900271035008	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
140	N 900271035010	HOSE
		FROM AIR INTAKE PIPE TO AIR COMPRESSOR
	A 6125280008	AIR INTAKE PIPE
		FROM AIR CLEANER TO INTAKE PIPE
146	A 5411341082	HOSE
		FROM AIR CLEANER TO INTAKE PIPE
	A 6125280108	AIR INTAKE PIPE
		FROM AIR INTAKE PIPE TO AIR COMPRESSOR
	A 6125200001	AIR INTAKE PIPE
		FROM AIR CLEANER TO AIR COMPRESSOR
	A 6125280014	MUFFLER
		FROM AIR CLEANER TO AIR COMPRESSOR
158	A 6125200041	BRACKET
		FROM AIR CLEANER TO AIR COMPRESSOR
161	N 304017006026	SCREW
		FROM AIR CLEANER TO AIR COMPRESSOR
164	N 916017025000	CLAMP
	Repalced by: N 000000000668
164	N 000000000668	CLAMP
		BREATHER LINE
164	N 000000000668	CLAMP
		FROM AIR CLEANER TO AIR COMPRESSOR
164	N 000000000668	CLAMP
		HOSE TO T-FITTING
164	N 916017032000	CLAMP
	Repalced by: N 000000000670
164	N 000000000670	CLAMP
		FROM AIR CLEANER TO AIR COMPRESSOR
164	N 916017032001	CLAMP
		FROM AIR CLEANER TO AIR COMPRESSOR
164	N 916017032001	CLAMP
		AIR COMPRESSOR LINE CONNECTION
164	N 916016035205	CLAMP
		FROM AIR CLEANER TO AIR COMPRESSOR
	A 6125200002	AIR INTAKE CASE
