Transporto priemonė: O 405 GTZ; VIN numerio dalis: 357350

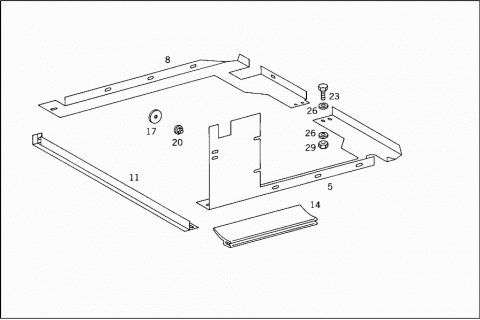

Grupė: 52 CHASSIS SHEET METAL - 290 ENGINE COVERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3575240033 | COVERING |
| ELECTRIC MOTOR,LEFT | ||
| 008 | A 3575240133 | COVERING |
| ELECTRIC MOTOR,RIGHT | ||
| 011 | A 3575200124 | ANTINOISE CAPSULE |
| ELECTRIC MOTOR,BOTTOM | ||
| 014 | A 0049876951 | RUBBER SEAL |
| 017 | A 3019900340 | WASHER |
| SCREENING PLATE TO SUBSTRUCTURE | ||
| 020 | A 3019900340 | WASHER |
| SCREENING PLATE TO SUBSTRUCTURE | ||
| 023 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 023 | N 304017006020 | SCREW |
| SCREENING PLATE TO SUBSTRUCTURE | ||
| 026 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 026 | N 009021006208 | WASHER |
| SCREENING PLATE TO SUBSTRUCTURE | ||
| 029 | N 913001006003 | NUT |
| SCREENING PLATE TO SUBSTRUCTURE | ||
