Transporto priemonė: O 405 GTZ; VIN numerio dalis: 357350

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING

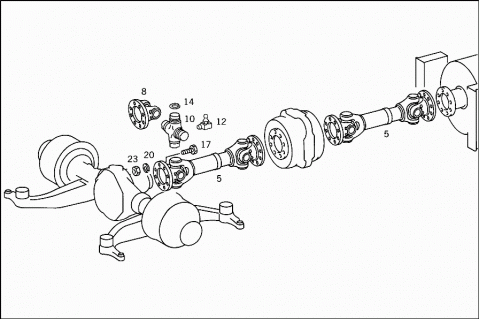

		REAR AXLE MAIN DRIVE
005	A 3074103702	PROPELLER SHAFT
	Repalced by: A 3574100802
005	A 3574100802	PROPELLER SHAFT
		FROM ELECTRIC MOTOR TO EDDY CURRENT BRAKE AND TO REAR AXLE
		450 MM
008	A 0004110611	DRIVE FLANGE
010	A 0004100531	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
012	N 071412008302	GREASE NIPPLE
014	N 000472052000	LOCK RING
		AS REQUIRED
		2.00 MM
014	A 3354112073	LOCK
	Repalced by: N 000472052000
014	N 000472052000	LOCK RING
		AS REQUIRED
		2.075 MM
017	A 0029909901	SCREW
	Repalced by: A 3959900501
017	A 3959900501	SCREW
		PROPELLER SHAFT TO REAR AXLE
020	N 912004016101	LOCK WASHER
		PROPELLER SHAFT
023	N 000934016022	NUT
		PROPELLER SHAFT
		M 16
023	N 000934016013	NUT
	Repalced by: N 308673016001
023	N 308673016001	NUT
		PROPELLER SHAFT
		M 16X1.5
	X XXXXXXXXXXXX	PART NAME MISSING

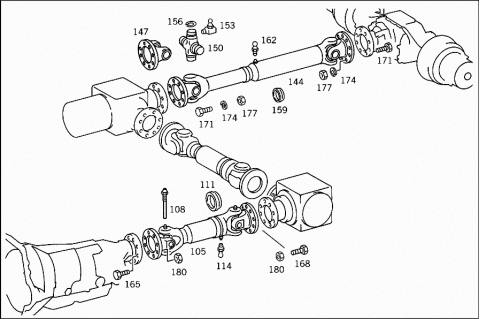

		CENTRAL AXLE AUXILIARY DRIVE
105	A 4604103604	PROPELLER SHAFT
		FROM TRANSMISSION TO ANGLE DRIVE I
		330 MM
108	A 0009974588	GREASE NIPPLE
	Repalced by: N 900216008100
108	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
108	N 071412008102	GREASE NIPPLE
		UNIVERSAL JOINT CROSS
111	A 3814110159	SEAL RING
		PROTECTIVE TUBE
		77X14.5 MM
111	A 0004110059	SEAL RING
		PROTECTIVE TUBE
		74.5X22 MM
114	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
114	N 071412008102	GREASE NIPPLE
144	A 6744102802	PROPELLER SHAFT
		FROM ANGLE DRIVE II TO CENTRAL AXLE
		1765 MM
147	A 3814110911	DRIVE FLANGE
150	A 6174100031	UNIVERSAL JOINT CROSS
	Repalced by: A 0004104031
150	A 0004104031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
153	N 071412008302	GREASE NIPPLE
156	N 000472042001	LOCK RING
		AS REQUIRED
		1.750 MM
156	A 0059949741	LOCK
		AS REQUIRED
		1.825 MM
156	A 0059949941	LOCK
		AS REQUIRED
		1.875 MM
156	A 0069940141	LOCK
		AS REQUIRED
		1.925 MM
156	A 0069940441	LOCK
		AS REQUIRED
		2.000 MM
159	A 3814110559	SEAL RING
		PROTECTIVE TUBE
		77X14.5 MM
159	A 0004110059	SEAL RING
		PROTECTIVE TUBE
		74.5X22 MM
162	N 071412008101	GREASE NIPPLE
	Repalced by: N 071412008102
162	N 071412008102	GREASE NIPPLE
165	A 3199900601	SCREW
		PROPELLER SHAFT TO AUTOMATIC TRANSMISSION
168	A 3579900901	SCREW
		PROPELLER SHAFT TO ANGLE DRIVE
		"I"
171	A 3609901901	SCREW
	Repalced by: A 3609903001
171	A 3609903001	SCREW
		PROPELLER SHAFT TO ANGLE DRIVE
		"II"
171	A 3609903001	SCREW
		PROPELLER SHAFT TO CENTRAL AXLE
		"II"
174	N 912004012100	LOCK WASHER
		PROPELLER SHAFT
177	N 000934012034	NUT
		PROPELLER SHAFT
180	N 000934008022	NUT
		PROPELLER SHAFT
