Transporto priemonė: O 405 GT; VIN numerio dalis: 612633

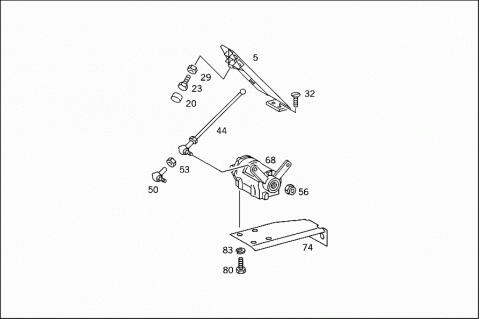

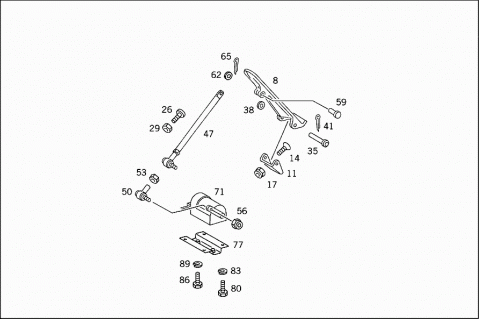

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL

#	Kodas	Pavadinimas
005	A 3563010101	ACCELERATOR PEDAL
008	A 3073010002	PEDAL PLATE
011	A 3013010305	ARTICULATION PIECE
014	N 000963008043	SCREW
		ARTICULATION ELEMENT TO FLOOR
017	N 910113008003	NUT
		ARTICULATION ELEMENT TO FLOOR
020	A 3813010041	STOP
		ACCELERATOR PEDAL
023	N 304017008042	SCREW
		STOP TO ACCELERATOR PEDAL
026	A 0009906233	SCREW
		PEDAL STOP
029	N 304035008001	NUT
		STOP TO ACCELERATOR PEDAL
032	N 007991006036	SCREW
		ACCELERATOR PEDAL TO BEARING BRACKET
035	N 001444010224	PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
038	N 000125010532	WASHER
		PEDAL PLATE TO ARTICULATION ELEMENT
041	N 000094003219	COTTER PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
044	A 6123000115	ROD
		(LINK)
047	A 3573002415	ROD
		FROM ACCELERATOR PEDAL TO SENDER UNIT
050	A 0003010322	JOINT
		LINK
053	N 304032008006	NUT
		LINK
056	N 910113008003	NUT
		LINK TO LEVER
059	N 001444006220	PIN
		ROD TO PEDAL PLATE
062	N 000125006421	WASHER
		ROD TO PEDAL PLATE
	Repalced by: N 000125006449
062	N 000125006449	WASHER
		ROD TO PEDAL PLATE
065	N 000094001622	COTTER PIN
		ROD TO PEDAL PLATE
068	A 0085426717	SENDER UNIT
		ELECTRONIC ACCELERATOR
071	A 0005401617	SENDER UNIT
		ELECTRONIC ACCELERATOR
074	A 3563010440	BRACKET
		SET POINT SENDER UNIT
077	A 3573012140	BRACKET
		SET POINT SENDER UNIT
080	N 304017006018	SCREW
		DESIRED VALUE SENDER UNIT TO BRACKET
083	N 912006006102	LOCK WASHER
		DESIRED VALUE SENDER UNIT TO BRACKET
086	N 304017008039	SCREW
		BRACKET TO SUBSTRUCTURE
089	N 912004008102	LOCK WASHER
		BRACKET TO SUBSTRUCTURE
