Transporto priemonė: O 405 GT; VIN numerio dalis: 612633

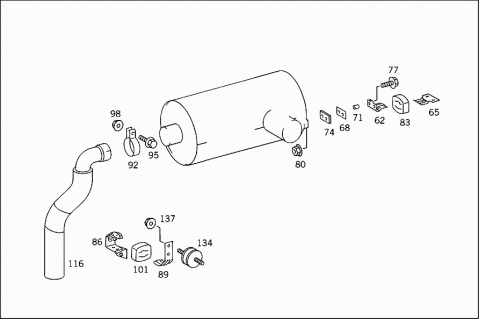

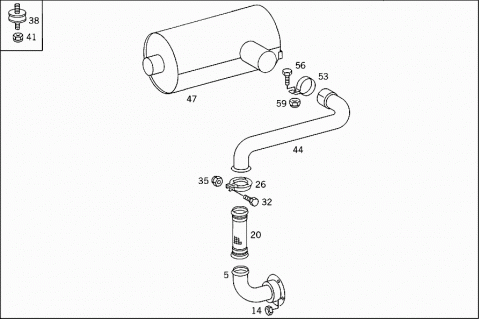

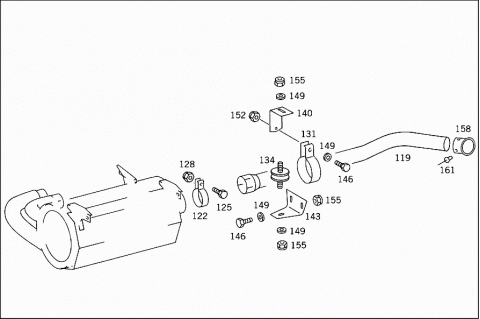

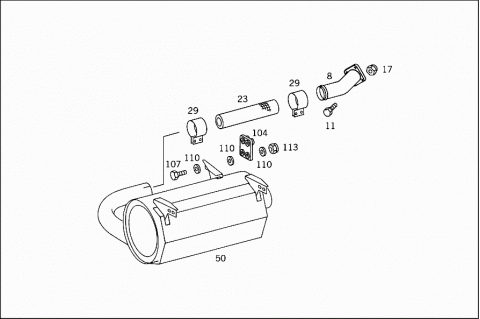

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	A 6124900019	EXHAUST PIPE
		FRONT
008	A 3574905419	EXHAUST PIPE
		FRONT
011	N 000933012051	SCREW
		EXHAUST PIPE TO TURBOCHARGER
014	N 999901010000	NUT
		EXHAUST PIPE TO EXHAUST MANIFOLD
017	N 913004012010	NUT
		EXHAUST PIPE TO TURBOCHARGER
020	A 6214900065	FLEXIBLE METAL TUBE
		FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE
023	A 3574920959	FLEXIBLE METAL TUBE
		EXHAUST
026	A 6219970090	CLAMP
		FLEXIBLE METAL TUBE TO EXHAUST PIPE
029	A 3574921240	CLAMP
		FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER
032	N 304017008027	SCREW
		FLEXIBLE METAL TUBE TO EXHAUST PIPE
035	N 910113008003	NUT
		FLEXIBLE METAL TUBE TO EXHAUST PIPE
038	A 3225040212	RUBBER MOUNTING
		EXHAUST PIPE TO FRAME
041	N 913023008003	NUT
		EXHAUST PIPE TO FRAME
044	A 6124900119	EXHAUST PIPE
		CENTRAL
047	A 3574902501	EXHAUST MUFFLER
		WITH CATALYST
050	A 3574901901	EXHAUST MUFFLER
053	N 071555104501	CLAMP
		CENTRAL EXHAUST PIPE TO CATALYST
056	N 910105010009	HEXAGON HEAD BOLT
059	N 913023010002	NUT
		CENTRAL EXHAUST PIPE TO CATALYST
062	A 3014910215	CONSOLE
		CATALYST
065	A 3014910015	CONSOLE
		CATALYST
068	A 3014910118	PLATE
		BRACKET TO CATALYTIC CONVERTER
071	A 3014910053	SPACER TUBE
		BRACKET TO CATALYTIC CONVERTER
074	A 3004910183	INSULATION
		BRACKET TO CATALYTIC CONVERTER
074	A 3004910283	INSULATION
		BRACKET TO CATALYTIC CONVERTER
077	N 910105008005	SCREW
		CATALYST
080	N 913023008003	NUT
		CATALYST
083	A 3004920082	DAMPING PAD
		CATALYST
086	A 3574900134	SUPPORT
		CATALYST
089	A 6204926241	BRACKET
		CATALYST
092	N 071555100500	CLAMP
	Repalced by: N 071555100501
092	N 071555100501	CLAMP
		CATALYST
095	N 910105010009	HEXAGON HEAD BOLT
095	N 910105010009	HEXAGON HEAD BOLT
		BRACKET TO CATALYTIC CONVERTER
098	N 913023010002	NUT
		CATALYST
098	N 913023010002	NUT
		BRACKET TO CATALYTIC CONVERTER
101	A 3004920082	DAMPING PAD
		BRACKET TO CATALYTIC CONVERTER
104	A 0004920082	DAMPING PAD
		MAIN MUFFLER SUSPENSION
107	N 304017008028	SCREW
		MAIN MUFFLER SUSPENSION
		M 8X50
107	N 304017008042	SCREW
		MAIN MUFFLER SUSPENSION
		M 8X45
110	N 000125008443	WASHER
		MAIN MUFFLER SUSPENSION
113	N 910113008001	NUT
		MAIN MUFFLER SUSPENSION
116	A 6124900021	EXHAUST PIPE
		REAR
119	A 3574922604	REAR EXHAUST PIPE
		REAR
		1273,1 MM
122	N 071555104501	CLAMP
		REAR EXHAUST PIPE TO MUFFLER
125	N 910105010009	HEXAGON HEAD BOLT
125	N 304017010019	SCREW
		REAR EXHAUST PIPE TO MUFFLER
		M 10X25
128	N 913023010002	NUT
		REAR EXHAUST PIPE TO MUFFLER
128	N 304032010003	NUT
		REAR EXHAUST PIPE TO MUFFLER
131	N 071555100500	CLAMP
	Repalced by: N 071555100501
131	N 071555100501	CLAMP
		REAR EXHAUST PIPE SUSPENSION
131	N 071555100501	CLAMP
		REAR EXHAUST PIPE SUSPENSION
134	A 3225040212	RUBBER MOUNTING
		REAR EXHAUST PIPE TO FRAME
134	A 3225040212	RUBBER MOUNTING
		REAR EXHAUST PIPE TO FRAME
137	N 913023008003	NUT
		REAR EXHAUST PIPE TO FRAME
140	A 3574924641	BRACKET
		CLAMP
140	A 3574924641	BRACKET
		CLAMP
143	A 3574924141	BRACKET
		ON BODY
143	A 3574924141	BRACKET
		ON BODY
146	N 304017010019	SCREW
		CLAMP TO BRACKET
		M 10X25
146	N 304017010019	SCREW
		CLAMP TO BRACKET
		M 10X25
146	N 000933008145	SCREW
		BRACKET TO BODY
		M 8X18
146	N 000933008145	SCREW
		BRACKET TO BODY
		M 8X18
149	N 000125010532	WASHER
		CLAMP TO BRACKET
149	N 000125010532	WASHER
		CLAMP TO BRACKET
149	N 000125008443	WASHER
		REAR EXHAUST PIPE SUSPENSION
152	N 910113010001	NUT
		CLAMP TO BRACKET
152	N 910113010001	NUT
		CLAMP TO BRACKET
155	N 999901008005	NUT
	Repalced by: A 0009903250
155	A 0009903250	NUT
		RUBBER MOUNTING TO BRACKET
155	A 0009903250	NUT
		RUBBER MOUNTING TO BRACKET
155	N 910113008003	NUT
		BRACKET TO BODY
155	N 910113008003	NUT
		BRACKET TO BODY
158	A 3574920514	END PIECE
		REAR EXHAUST PIPE
158	A 3574921114	END PIECE
		REAR EXHAUST PIPE
161	N 007337003104	BLIND RIVET
		END PIECE TO EXHAUST PIPE
