Transporto priemonė: O 405 GT; VIN numerio dalis: 612633

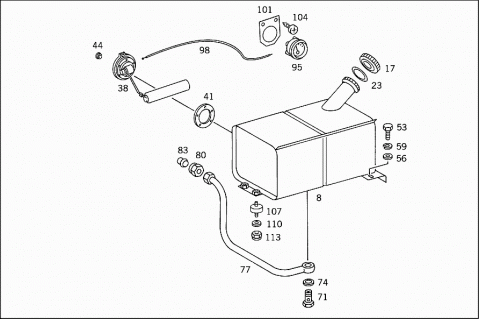

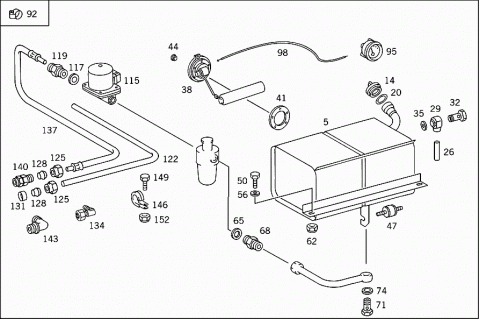

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3574802401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 16 L | ||
| A 6124800001 | OIL TANK | |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 008 | A 3574800601 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 20 L | ||
| 014 | A 0000180702 | CAP |
| 017 | A 0004810403 | COVER |
| 020 | A 1020180380 | GASKET |
| 023 | A 1104710280 | GASKET |
| 026 | A 0109976482 | HOSE |
| FLUID LEVEL INDICATOR | ||
| 170 MM | ||
| 029 | N 915052008018 | BANJO UNION |
| FLUID LEVEL INDICATOR | ||
| 032 | N 915036008100 | HOLLOW SCREW |
| FLUID LEVEL INDICATOR | ||
| Repalced by: N 000000004749 | ||
| 032 | N 000000004749 | SCREW |
| FLUID LEVEL INDICATOR | ||
| 035 | N 007603012110 | SEAL RING |
| FLUID LEVEL INDICATOR | ||
| 038 | A 0015429817 | SENDER UNIT |
| 041 | A 0005420880 | GASKET |
| 044 | A 0169975848 | SEAL RING |
| 047 | A 0019876340 | RUBBER BUFFER |
| OIL TANK | ||
| 050 | N 000933008154 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| M 8X22 | ||
| 053 | N 304017008016 | SCREW |
| M 8X16 | ||
| 056 | N 000125008443 | WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 059 | N 912004008102 | LOCK WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 062 | N 913004008004 | NUT |
| OIL TANK TO SUBSTRUCTURE | ||
| 065 | N 007603012110 | SEAL RING |
| OIL TANK TO SUBSTRUCTURE | ||
| 068 | N 003953015100 | FITTING |
| OIL TANK TO SUBSTRUCTURE | ||
| 071 | N 915036008100 | HOLLOW SCREW |
| LINE TO OIL TANK | ||
| Repalced by: N 000000004749 | ||
| 071 | N 000000004749 | SCREW |
| LINE TO OIL TANK | ||
| 074 | N 007603012405 | SEAL RING |
| LINE TO OIL TANK | ||
| 074 | N 007603012111 | SEAL RING |
| LINE TO OIL TANK | ||
| 077 | A 3574801815 | OIL LINE |
| FROM OIL TANK TO FILTER | ||
| 080 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 080 | N 000000006239 | UNION NUT |
| 083 | A 0019901967 | SEAL CONE |
| A 6124800215 | OIL LINE | |
| OIL FILLER PIPE | ||
| A 0005060417 | STRAINER | |
| OIL FILLER PIPE | ||
| 092 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 092 | N 000000000670 | CLAMP |
| OIL FILLER PIPE | ||
| 095 | A 0005423714 | INDICATOR |
| OIL SUPPLY | ||
| 098 | A 0009961772 | PULL |
| 101 | A 3574810240 | BRACKET |
| OIL LEVEL INDICATOR | ||
| 104 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 104 | N 000000000460 | SHEET METAL SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 107 | A 0009887311 | BUFFER |
| OIL TANK | ||
| 110 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 110 | N 000125010532 | WASHER |
| OIL TANK | ||
| 113 | N 304032010003 | NUT |
| OIL TANK | ||
| 115 | A 0004810191 | VALVE |
| (SOLENOID VALVE) | ||
| 117 | N 007603014106 | SEAL RING |
| SOLENOID VALVE | ||
| 119 | A 0029977472 | FITTING |
| SOLENOID VALVE | ||
| 122 | A 0009872827 | PLASTIC PIPE |
| 9X12 MM | ||
| 122 | A 0004291001 | LINE |
| 125 | N 915017010206 | UNION NUT |
| 125 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 125 | N 000000006239 | UNION NUT |
| 128 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 128 | A 0019901967 | SEAL CONE |
| 131 | N 915062009000 | SLEEVE |
| 134 | A 0029902171 | ELBOW FITTING |
| 137 | A 0119979382 | HOSE |
| FROM SOLENOID VALVE TO ENGINE OIL FILLER NECK | ||
| 140 | A 0029906171 | FITTING |
| OIL LINES | ||
| 143 | A 0019902771 | ELBOW FITTING |
| HOSE TO FILLER NECK | ||
| 146 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 146 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 146 | N 000000001045 | CLAMP |
| ENGINE OIL LINE ON FUEL LINE | ||
| 146 | N 916016012200 | CLAMP |
| ENGINE OIL LINE ON FUEL LINE | ||
| 149 | N 000933006127 | SCREW |
| ENGINE OIL LINE ON FUEL LINE | ||
| 152 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 152 | N 913004006001 | NUT |
| ENGINE OIL LINE ON FUEL LINE | ||
