Transporto priemonė: O 405 GT; VIN numerio dalis: 612633

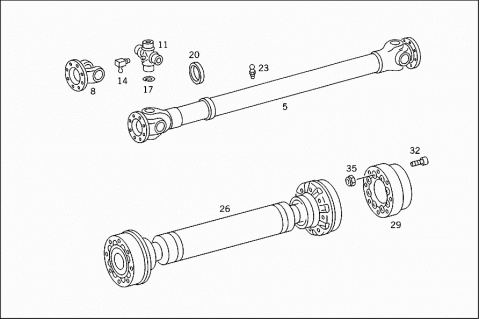

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
005	A 3004101002	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		440 MM
008	A 3854111711	DRIVE FLANGE
011	A 9734100031	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
014	N 071412008302	GREASE NIPPLE
017	A 0069940641	LOCK
		AS REQUIRED
		1.65 MM
017	A 0069940841	LOCK
		AS REQUIRED
		1.70 MM
017	N 000472048000	LOCK RING
		AS REQUIRED
		1.75 MM
017	A 0069941241	LOCK
		AS REQUIRED
		1.80 MM
017	A 0069941441	LOCK
		AS REQUIRED
		1.85 MM
017	A 0069941641	LOCK
		AS REQUIRED
		1.90 MM
020	A 3854110059	SEAL RING
		PROTECTIVE TUBE
023	N 071412008102	GREASE NIPPLE
026	A 3574100702	PROPELLER SHAFT
		ELECTRIC MOTOR TO REAR AXLE
		1855 MM
	A 0004100307	PROPELLER SHAFT
		REPAIR KIT
029	A 3574110045	FLANGE
		AT REAR AXLE
032	A 3609903001	SCREW
		PROPELLER SHAFT TO TRANSMISSION
032	A 3609903001	SCREW
		PROPELLER SHAFT TO REAR AXLE
032	N 000912016093	SCREW
		PROPELLER SHAFT TO REAR AXLE COUPLING FLANGE
032	N 308765016010	SCREW
		PROPELLER SHAFT TO FLANGE
032	N 308765016010	SCREW
		PROPELLER SHAFT TO ELECTRIC MOTOR
035	N 308673012003	NUT
		PROPELLER SHAFT TO TRANSMISSION
035	N 308673012003	NUT
		PROPELLER SHAFT TO REAR AXLE
035	N 910113016001	NUT
		PROPELLER SHAFT TO REAR AXLE COUPLING FLANGE
