Transporto priemonė: O 405 NH-G; VIN numerio dalis: 357488

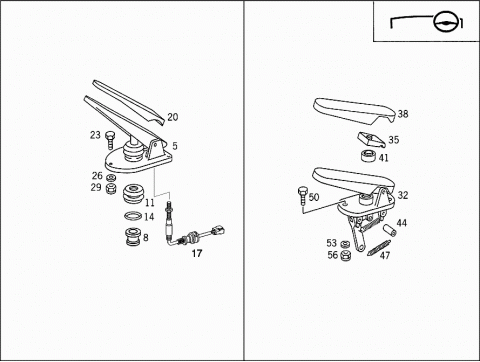

Grupė: 29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/380 | ||
| 005 | A 0004300318 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 005 | A 0004300718 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 008 | A 0004310050 | BUSHING |
| 011 | A 0004314887 | PROTECTIVE CAP |
| 014 | A 0059973240 | SEAL RING |
| 017 | A 0045458332 | CONTROL UNIT |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| M 12X1 | ||
| 020 | A 0002920082 | PAD |
| BRAKE PEDAL | ||
| 020 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 023 | N 000933008116 | SCREW |
| Repalced by: N 000933008337 | ||
| 023 | N 000933008337 | SCREW |
| Repalced by: A 0099900101 | ||
| 023 | A 0099900101 | SCREW |
| SERVICE BRAKE VALVE | ||
| 023 | N 007984008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 026 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 026 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 029 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 032 | A 0002920401 | PEDAL |
| BRAKE | ||
| 035 | A 0002920049 | BEARING |
| 038 | A 0002920082 | PAD |
| 041 | A 0002920097 | BOOT |
| PUSH ROD | ||
| 044 | A 0002920050 | BUSHING |
| REVERSING LEVER | ||
| 047 | A 0002920087 | SPRING |
| BRAKE PEDAL RESET | ||
| 050 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 050 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 050 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 050 | N 910143008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 053 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 053 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 056 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
