Transporto priemonė: O 405 NUE; VIN numerio dalis: 612426

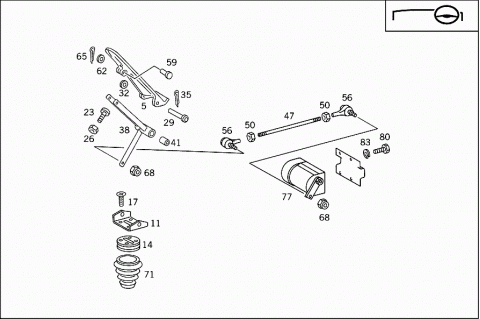

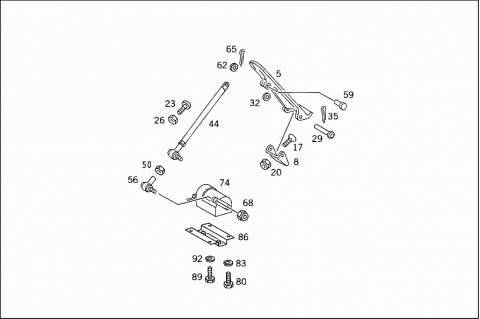

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3073010002 | PEDAL PLATE |
| 008 | A 3013010305 | ARTICULATION PIECE |
| 011 | A 3573010005 | ARTICULATION PIECE |
| 014 | A 3573000053 | SLEEVE |
| ARTICULATION ELEMENT TO FLOOR | ||
| 017 | N 000963008004 | SCREW |
| ARTICULATION ELEMENT TO FLOOR | ||
| 017 | N 000963008004 | SCREW |
| ARTICULATION ELEMENT TO FLOOR | ||
| 020 | N 910113008003 | NUT |
| ARTICULATION ELEMENT TO FLOOR | ||
| 023 | A 0009906233 | SCREW |
| PEDAL STOP | ||
| 026 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 026 | N 304035008001 | NUT |
| PEDAL STOP | ||
| 029 | N 001444010224 | PIN |
| PEDAL PLATE TO ARTICULATION ELEMENT | ||
| 032 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 032 | N 000125010532 | WASHER |
| PEDAL PLATE TO ARTICULATION ELEMENT | ||
| 035 | N 000094003219 | COTTER PIN |
| PEDAL PLATE TO ARTICULATION ELEMENT | ||
| 038 | A 3573002521 | BEARING TUBE |
| 041 | A 3550720150 | BUSHING |
| 044 | A 3573002415 | ROD |
| FROM ACCELERATOR PEDAL TO SENDER UNIT | ||
| 047 | N 900331008419 | PULL ROD |
| FROM ACCELERATOR PEDAL TO SENDER UNIT | ||
| 050 | N 304032008006 | NUT |
| ROD | ||
| 050 | N 304032008006 | NUT |
| ROD | ||
| 056 | A 0003010322 | JOINT |
| ROD | ||
| 059 | N 001444006220 | PIN |
| ROD TO PEDAL PLATE | ||
| 062 | N 000125006421 | WASHER |
| ROD TO PEDAL PLATE | ||
| Repalced by: N 000125006449 | ||
| 062 | N 000125006449 | WASHER |
| ROD TO PEDAL PLATE | ||
| 065 | N 000094001622 | COTTER PIN |
| ROD TO PEDAL PLATE | ||
| 068 | N 910113008003 | NUT |
| ROD | ||
| 071 | A 3573010097 | BOOT |
| ACCELERATOR PEDAL | ||
| 074 | A 0085426717 | SENDER UNIT |
| ELECTRONIC ACCELERATOR | ||
| 077 | A 0125422317 | SENDER UNIT |
| ELECTRONIC ACCELERATOR | ||
| 080 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 080 | N 304017006018 | SCREW |
| SENDER UNIT TO BRACKET | ||
| 083 | N 912004006102 | LOCK WASHER |
| SENDER UNIT TO BRACKET | ||
| 086 | A 3573012140 | BRACKET |
| SENDER UNIT | ||
| 089 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 089 | N 304017008039 | SCREW |
| BRACKET TO SUBSTRUCTURE | ||
| 092 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUBSTRUCTURE | ||
