Transporto priemonė: O 405 NUE; VIN numerio dalis: 612426

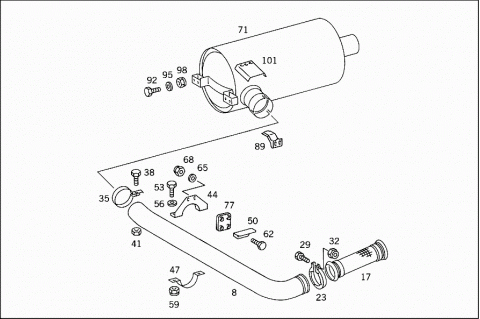

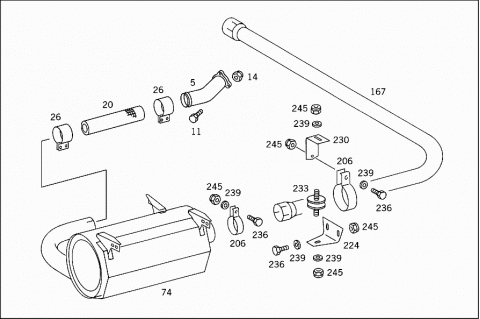

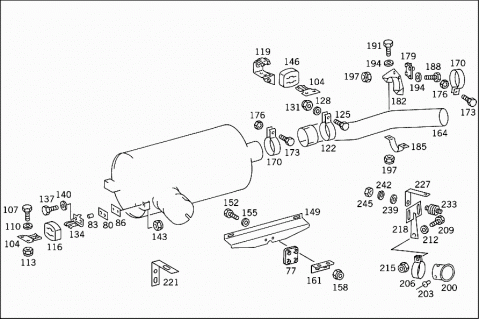

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3574905419 | EXHAUST PIPE |
| AT TURBOCHARGER,FRONT | ||
| 008 | A 3574903919 | EXHAUST PIPE |
| Repalced by: A 6124901019 | ||
| 008 | A 6124901019 | EXHAUST PIPE |
| FRONT | ||
| 011 | N 000933012051 | SCREW |
| EXHAUST PIPE TO TURBOCHARGER | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO TURBOCHARGER | ||
| 017 | A 6214900065 | FLEXIBLE METAL TUBE |
| EXHAUST | ||
| 020 | A 3574920959 | FLEXIBLE METAL TUBE |
| EXHAUST | ||
| 023 | A 6219970090 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 026 | A 3574921240 | CLAMP |
| FLEXIBLE METAL TUBE TO EXHAUST PIPE AND TO EXHAUST MUFFLER | ||
| 029 | N 304017008028 | SCREW |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 032 | N 910113008003 | NUT |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 035 | A 3574921140 | CLAMP |
| Repalced by: A 3574921240 | ||
| 035 | A 3574921240 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 038 | N 304017010047 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| TO A357 492 11 40 | ||
| 041 | N 304032010003 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| TO A357 492 11 40 | ||
| 044 | A 3574900640 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3574922141 | BRACKET |
| AT BRACKET | ||
| 050 | A 3574910030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 053 | N 000933008271 | SCREW |
| Repalced by: N 304017008021 | ||
| 053 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| M 8X20 | ||
| 056 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 059 | N 910113008003 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 062 | N 304017008042 | SCREW |
| DAMPING PAD TO BRACKET AND TO SUBSTRUCTURE | ||
| M 8X45 | ||
| 062 | N 304017008042 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| M 8X45 | ||
| 062 | N 304017008028 | SCREW |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| M 8X50 | ||
| 065 | N 000125008443 | WASHER |
| DAMPING PAD TO BRACKET AND TO SUBSTRUCTURE | ||
| 065 | N 000125008443 | WASHER |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 065 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 068 | N 910113008003 | NUT |
| DAMPING PAD TO BRACKET AND TO SUBSTRUCTURE | ||
| 068 | N 910113008001 | NUT |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 068 | N 910113008001 | NUT |
| EXHAUST MUFFLER TO DAMPING PAD | ||
| 071 | A 3574901501 | EXHAUST MUFFLER |
| 074 | A 3574901901 | EXHAUST MUFFLER |
| 077 | A 0004920082 | DAMPING PAD |
| MAIN MUFFLER SUSPENSION | ||
| 080 | A 3014910118 | PLATE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 083 | A 3014910053 | SPACER TUBE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 086 | A 3004910183 | INSULATION |
| CONSOLE TO EXHAUST MUFFLER | ||
| 086 | A 3004910283 | INSULATION |
| CONSOLE TO EXHAUST MUFFLER | ||
| 089 | A 3004910115 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 092 | N 304017008027 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| 095 | N 000125008443 | WASHER |
| CONSOLE TO EXHAUST MUFFLER | ||
| 098 | N 999901008000 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 101 | A 3574910230 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 104 | A 3014910015 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 107 | N 304017010019 | SCREW |
| FRONT EXHAUST MUFFLER | ||
| M 10X25 | ||
| 110 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 110 | N 000125010532 | WASHER |
| FRONT EXHAUST MUFFLER | ||
| 113 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 113 | N 910113010000 | NUT |
| FRONT EXHAUST MUFFLER | ||
| 116 | A 3004920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 119 | A 3574900134 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 122 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 122 | N 071555100501 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 125 | N 000933010328 | SCREW |
| REAR EXHAUST MUFFLER | ||
| 128 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 128 | N 000125010532 | WASHER |
| REAR EXHAUST MUFFLER | ||
| 131 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 131 | N 910113010000 | NUT |
| REAR EXHAUST MUFFLER | ||
| 134 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 137 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 137 | N 304017008034 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 140 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 143 | N 910113008003 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 146 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 149 | A 3574924341 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 152 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 152 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 155 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 158 | N 910113008003 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 161 | A 3574924241 | BRACKET |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 164 | A 3574902621 | EXHAUST PIPE |
| REAR | ||
| A 3574903021 | EXHAUST PIPE | |
| REAR | ||
| A 3574902721 | EXHAUST PIPE | |
| REAR | ||
| 167 | A 3574927304 | REAR EXHAUST PIPE |
| REAR | ||
| 170 | A 3574920840 | CLAMP |
| Repalced by: N 071555104501 | ||
| 170 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 173 | N 304017010019 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 176 | N 304032010003 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 179 | A 0004920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 182 | A 3574900640 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 185 | A 3574922141 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 188 | N 304017008042 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 191 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 194 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 197 | N 913004008003 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 200 | A 3574920514 | END PIECE |
| REAR EXHAUST PIPE | ||
| 200 | A 3574921114 | END PIECE |
| REAR EXHAUST PIPE | ||
| 203 | N 910002003101 | RIVET |
| END PIECE TO EXHAUST PIPE | ||
| 206 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 206 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 206 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 206 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 209 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 209 | N 304017010019 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 209 | N 304017010019 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 209 | N 304017010019 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 209 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 209 | N 304017008021 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X20 | ||
| 212 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 212 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 212 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 212 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 215 | N 910113010001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 215 | N 910113010001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 215 | N 910113008003 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 215 | N 910113010000 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 218 | A 3574900240 | BRACKET |
| REAR EXHAUST PIPE | ||
| 221 | A 3574913341 | BRACKET |
| REAR EXHAUST PIPE | ||
| 224 | A 3574924141 | BRACKET |
| REAR LEFT EXHAUST PIPE | ||
| 224 | A 3574924141 | BRACKET |
| REAR RIGHT EXHAUST PIPE | ||
| 227 | A 6205243040 | BRACKET |
| REAR EXHAUST PIPE | ||
| 230 | A 3574924641 | BRACKET |
| REAR LEFT EXHAUST PIPE | ||
| 230 | A 3574924641 | BRACKET |
| REAR RIGHT EXHAUST PIPE | ||
| 233 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 233 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 233 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 233 | A 0019875240 | RUBBER BUFFER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 236 | N 304017008021 | SCREW |
| BRACKET TO BRACKET | ||
| M 8X20 | ||
| 236 | N 000933008145 | SCREW |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| M 8X18 | ||
| 236 | N 000933008145 | SCREW |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 239 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 239 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 239 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE RIGHT TO BODY | ||
| 239 | N 000125008443 | WASHER |
| BRACKET TO BRACKET | ||
| 239 | N 000125008443 | WASHER |
| RUBBER BUFFER | ||
| 239 | N 000125008443 | WASHER |
| RUBBER BUFFER | ||
| 242 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 242 | N 912004008102 | LOCK WASHER |
| RUBBER BUFFER | ||
| 245 | N 910113008003 | NUT |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 245 | N 910113008003 | NUT |
| BRACKET TO BRACKET | ||
| 245 | N 304032008006 | NUT |
| RUBBER BUFFER | ||
| 245 | N 910113008003 | NUT |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 245 | N 910113008003 | NUT |
| REAR EXHAUST PIPE RIGHT TO BODY | ||
| 245 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 245 | A 0009903250 | NUT |
| RUBBER BUFFER | ||
| 245 | N 999901008005 | NUT |
| Repalced by: A 0009903250 | ||
| 245 | A 0009903250 | NUT |
| RUBBER BUFFER | ||
