Transporto priemonė: O 405 N; VIN numerio dalis: 357400

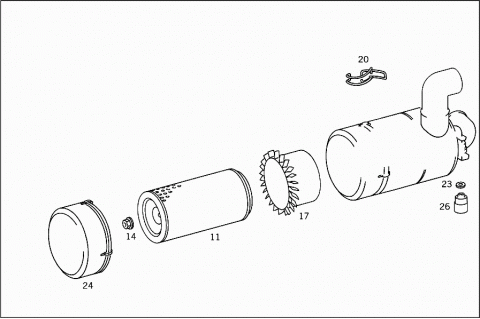

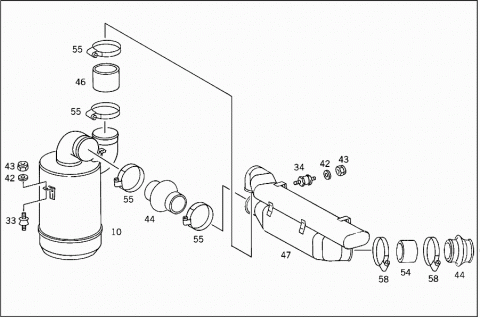

Grupė: 52 CHASSIS SHEET METAL - 160 AIR INTAKE AND AIR CLEANER
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 0160946502 | AIR CLEANER |
| 011 | A 0010947904 | FILTER ELEMENT |
| 014 | A 0009901550 | NUT |
| 017 | A 0000942205 | SEPARATOR |
| 020 | A 0000941255 | FASTENER |
| 023 | A 0000940276 | WASHER |
| FELT | ||
| 024 | A 0010940903 | FILTER BOWL |
| 026 | A 0000940968 | MAINTENANCE INDICATOR |
| 033 | A 3225040212 | RUBBER MOUNTING |
| AIR CLEANER | ||
| 034 | A 0019875240 | RUBBER BUFFER |
| AIR INTAKE PIPE | ||
| 042 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 042 | N 000125008443 | WASHER |
| BUFFER TO SUBSTRUCTURE | ||
| 043 | N 913004008004 | NUT |
| BUFFER TO SUBSTRUCTURE | ||
| 044 | A 3075280291 | BOOT |
| FROM AIR CLEANER TO ENGINE INTAKE PIPE | ||
| 044 | A 3075280291 | BOOT |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 046 | A 3575280091 | BOOT |
| FROM AIR INTAKE PIPE TO AIR CLEANER | ||
| 047 | A 3575200501 | AIR INTAKE PIPE |
| AIR CLEANER | ||
| 054 | N 900271132005 | HOSE |
| FROM AIR CLEANER TO ENGINE INTAKE PIPE | ||
| 054 | N 900271132005 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 055 | N 916017130000 | CLAMP |
| Repalced by: N 000000000678 | ||
| 055 | N 000000000678 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| Repalced by: N 000000005892 | ||
| 055 | N 000000005892 | CLAMP |
| BOOT TO AIR DUCT AND TO AIR CLEANER | ||
| 055 | N 000000005892 | CLAMP |
| AIR INTAKE PIPE TO AIR CLEANER AND TO INTAKE PIPE SOCKET | ||
| 058 | N 916017140000 | CLAMP |
| AIR INTAKE PIPE TO BODY | ||
