Transporto priemonė: O 405 N 1; VIN numerio dalis: 357422

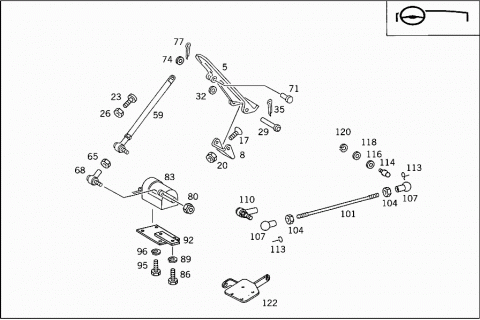

Grupė: 30 CONTROL - 060 ACCELERATOR PEDAL CONTROL

#	Kodas	Pavadinimas
005	A 3073010002	PEDAL PLATE
008	A 3023010105	ARTICULATION PIECE
008	A 3013010305	ARTICULATION PIECE
017	N 000963008004	SCREW
		ARTICULATION ELEMENT TO FLOOR
020	N 913004008004	NUT
		ARTICULATION ELEMENT TO FLOOR
023	N 007985008175	SCREW
	Repalced by: A 0009906233
023	A 0009906233	SCREW
		PEDAL STOP
026	N 000439008211	NUT
	Repalced by: N 304035008001
026	N 304035008001	NUT
		PEDAL STOP
029	N 001444010224	PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
032	N 000125010518	WASHER
	Repalced by: N 000125010532
032	N 000125010532	WASHER
		PEDAL PLATE TO ARTICULATION ELEMENT
035	N 000094003219	COTTER PIN
		PEDAL PLATE TO ARTICULATION ELEMENT
059	A 3573002415	ROD
		FROM ACCELERATOR PEDAL TO SENDER UNIT
065	N 000934008010	NUT
		ROD
068	A 0003010322	JOINT
		ROD
071	N 001444006220	PIN
		ROD TO PEDAL PLATE
074	N 000125006421	WASHER
		ROD TO PEDAL PLATE
077	N 000094001617	COTTER PIN
		ROD TO PEDAL PLATE
080	N 913004008004	NUT
		JOINT TO LEVER
083	A 0085426717	SENDER UNIT
		ELECTRONIC ACCELERATOR
086	N 000933006103	SCREW
	Repalced by: N 304017006018
086	N 304017006018	SCREW
		SENDER UNIT TO BRACKET
089	N 912004006102	LOCK WASHER
		SENDER UNIT TO BRACKET
092	A 3573012140	BRACKET
		SENDER UNIT
095	N 000933008130	SCREW
	Repalced by: N 304017008039
095	N 304017008039	SCREW
		BRACKET TO SUBSTRUCTURE
096	N 912004008102	LOCK WASHER
		BRACKET TO SUBSTRUCTURE
101	N 900331006617	PULL ROD
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
		6X600 MM
101	N 900331006615	PULL ROD
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
		6X200 MM
104	N 000934006007	NUT
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
107	N 071805010204	BALL SOCKET
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
110	A 6173000029	JOINT
113	N 071805010403	CIRCLIP
		BALL SOCKET TO BALL PIVOT
114	N 071803010102	BALL PIVOT
	Repalced by: N 071803010301
114	N 071803010301	BALL PIVOT
		PULL ROD TO LEVER
	Repalced by: N 000000004467
114	N 000000004467	SCREW
		PULL ROD TO LEVER
116	A 3073010060	SEAL RING
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
118	N 000125006421	WASHER
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
120	N 912004006102	LOCK WASHER
		FROM ENGINE INTERMEDIATE LEVER TO LOAD LEVEL SENDER UNIT
122	A 3572701241	BRACKET
		RANGE SELECTOR SENDER UNIT
	X XXXXXXXXXXXX	PART NAME MISSING
		FOR EMERGENCY DRIVE REGULATION SOLENOID VALVE,SEE GROUP / TU:
		43/020
