Transporto priemonė: O 405 N 1; VIN numerio dalis: 357422

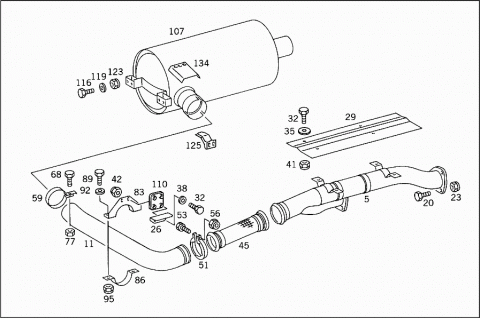

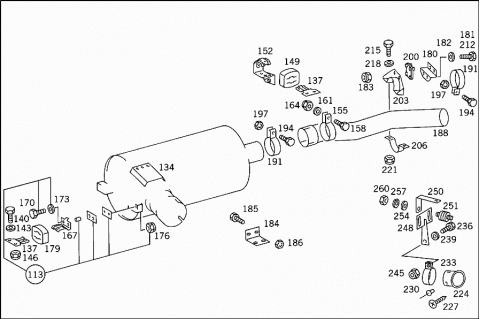

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3574900925 | CONNECTOR |
| EXHAUST SYSTEM | ||
| 011 | A 3574904819 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3574904719 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3574903719 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 3574903919 | EXHAUST PIPE |
| FRONT | ||
| 020 | N 000931012132 | SCREW |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 023 | N 999901012000 | NUT |
| CONNECTOR TO EXHAUST MANIFOLD | ||
| 026 | A 3574910030 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE | ||
| 029 | A 3574900430 | PROTECTIVE PLATE |
| SCREENING PLATE | ||
| 032 | N 000931008244 | SCREW |
| BRACKET TO RUBBER MOUNTING | ||
| 032 | N 000931008244 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 032 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 032 | N 304017006034 | SCREW |
| SCREENING PLATE | ||
| 035 | N 000125006421 | WASHER |
| SCREENING PLATE | ||
| 038 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 038 | N 000125008443 | WASHER |
| BRACKET TO RUBBER MOUNTING | ||
| 038 | N 000125008443 | WASHER |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 041 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 041 | N 913004006001 | NUT |
| SCREENING PLATE | ||
| 042 | N 913004008004 | NUT |
| BRACKET TO RUBBER MOUNTING | ||
| 042 | N 913004008004 | NUT |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 045 | A 6214900065 | FLEXIBLE METAL TUBE |
| EXHAUST | ||
| 051 | A 6219970090 | CLAMP |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 053 | N 304017008028 | SCREW |
| EXHAUST HOSE TO EXHAUST PIPE | ||
| M 8X50 | ||
| 056 | N 913004008004 | NUT |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 059 | N 071555104501 | CLAMP |
| Repalced by: A 3574920840 | ||
| 059 | A 3574920840 | CLAMP |
| Repalced by: N 071555104501 | ||
| 059 | N 071555104501 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 059 | A 3574921140 | CLAMP |
| Repalced by: A 3574921240 | ||
| 059 | A 3574921240 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 068 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 068 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 068 | N 304017010047 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| TO A357 492 11 40 | ||
| 077 | N 000934010014 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| TO A357 492 08 40;A357 492 11 40 | ||
| 083 | A 3574900640 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 086 | A 3574922141 | BRACKET |
| AT BRACKET | ||
| 089 | A 4609900601 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 092 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 092 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 095 | N 913004008004 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 107 | A 3574901501 | EXHAUST MUFFLER |
| 110 | A 3574920182 | DAMPING PAD |
| Repalced by: A 0004920082 | ||
| 110 | A 0004920082 | DAMPING PAD |
| MAIN MUFFLER SUSPENSION | ||
| 113 | A 3014900037 | SUSPENSION |
| EXHAUST MUFFLER,FRONT | ||
| 116 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 116 | N 304017008027 | SCREW |
| EXHAUST MUFFLER | ||
| M 8X30 | ||
| 116 | N 000931008244 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| M 8X45 | ||
| 119 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 119 | N 000125008443 | WASHER |
| EXHAUST MUFFLER | ||
| 123 | N 999901008000 | NUT |
| EXHAUST MUFFLER | ||
| 123 | N 913004008005 | NUT |
| MAIN MUFFLER SUSPENSION | ||
| 125 | A 3004910115 | CONSOLE |
| EXHAUST MUFFLER | ||
| 134 | A 3574910230 | PROTECTIVE PLATE |
| EXHAUST MUFFLER | ||
| 137 | A 3014910015 | CONSOLE |
| FRONT EXHAUST MUFFLER | ||
| 140 | N 000933010105 | SCREW |
| FRONT EXHAUST MUFFLER | ||
| 143 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 143 | N 000125010532 | WASHER |
| FRONT EXHAUST MUFFLER | ||
| 146 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 146 | N 910113010000 | NUT |
| FRONT EXHAUST MUFFLER | ||
| 149 | A 3004920082 | DAMPING PAD |
| FRONT EXHAUST MUFFLER | ||
| 152 | A 3574900134 | SUPPORT |
| REAR EXHAUST MUFFLER | ||
| 155 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 155 | N 071555100501 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 158 | N 000933010328 | SCREW |
| REAR EXHAUST MUFFLER | ||
| 161 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 161 | N 000125010532 | WASHER |
| REAR EXHAUST MUFFLER | ||
| 164 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 164 | N 910113010000 | NUT |
| REAR EXHAUST MUFFLER | ||
| 167 | A 3014910215 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 170 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 170 | N 304017008034 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 173 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 176 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 179 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 180 | A 3574924341 | BRACKET |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 181 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 181 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 182 | N 000433008406 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 183 | N 913004008004 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 184 | A 3574924241 | BRACKET |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 185 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 185 | N 304017008021 | SCREW |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 186 | N 913004008004 | NUT |
| DAMPING PAD TO SUBSTRUCTURE | ||
| 188 | A 3574902621 | EXHAUST PIPE |
| REAR | ||
| 191 | A 3574920840 | CLAMP |
| Repalced by: N 071555104501 | ||
| 191 | N 071555104501 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 194 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 197 | N 000934010014 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 200 | A 3574920182 | DAMPING PAD |
| Repalced by: A 0004920082 | ||
| 200 | A 0004920082 | DAMPING PAD |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 203 | A 3574900640 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 206 | A 3574922141 | BRACKET |
| REAR EXHAUST PIPE TO SUBSTRUCTURE | ||
| 212 | A 4609900601 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 215 | N 000931008244 | SCREW |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 218 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 218 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 221 | N 913004008004 | NUT |
| BRACKET TO EXHAUST PIPE BRACKET | ||
| 224 | A 3574920514 | END PIECE |
| REAR EXHAUST PIPE | ||
| 224 | A 3574921114 | END PIECE |
| REAR EXHAUST PIPE | ||
| 227 | N 007513003207 | TAPPING SCREW |
| END PIECE TO EXHAUST PIPE | ||
| 230 | N 910002003101 | RIVET |
| END PIECE TO EXHAUST PIPE | ||
| 233 | N 071555100500 | CLAMP |
| Repalced by: N 071555100501 | ||
| 233 | N 071555100501 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 236 | N 000933010105 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M10X25 | ||
| 236 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 236 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X30 | ||
| 236 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 236 | N 304017008021 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| 239 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 239 | N 000125010532 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 239 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 239 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 245 | N 913004010011 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 245 | N 913004008004 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 248 | A 3574900240 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3574913341 | BRACKET | |
| REAR EXHAUST PIPE | ||
| A 3574913441 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 250 | A 6205243040 | BRACKET |
| REAR EXHAUST PIPE | ||
| 251 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 251 | A 3225040212 | RUBBER MOUNTING |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| A 0019875240 | RUBBER BUFFER | |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 254 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 254 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 257 | N 912004008102 | LOCK WASHER |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
| 260 | N 000934008010 | NUT |
| REAR EXHAUST PIPE BRACKET TO BODY | ||
