Transporto priemonė: O 405 N 1; VIN numerio dalis: 357422

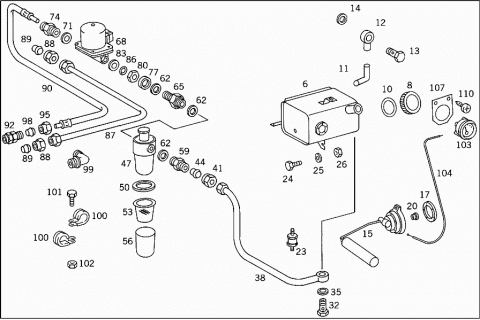

Grupė: 48 OIL TANK
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3574802001 | OIL TANK |
| Repalced by: A 3574801801 | ||
| 006 | A 3574801801 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 16 L | ||
| 006 | A 3574802401 | OIL TANK |
| ENGINE OIL AUTOMATIC REPLENISHMENT | ||
| 16 L | ||
| 008 | A 0004810403 | COVER |
| 008 | A 0000180702 | CAP |
| 010 | A 1104710280 | GASKET |
| 010 | A 1020180380 | GASKET |
| 011 | A 0109976482 | HOSE |
| FLUID LEVEL INDICATOR | ||
| 170 MM | ||
| 012 | N 915052008018 | BANJO UNION |
| FLUID LEVEL INDICATOR | ||
| 013 | N 915036008100 | HOLLOW SCREW |
| FLUID LEVEL INDICATOR | ||
| Repalced by: N 000000004749 | ||
| 013 | N 000000004749 | SCREW |
| FLUID LEVEL INDICATOR | ||
| 014 | N 007603012110 | SEAL RING |
| FLUID LEVEL INDICATOR | ||
| 015 | A 0015429817 | SENDER UNIT |
| 017 | A 0005420880 | GASKET |
| 020 | A 0005420459 | SEAL WASHER |
| Repalced by: A 0169975848 | ||
| 020 | A 0169975848 | SEAL RING |
| 023 | A 0019876340 | RUBBER BUFFER |
| OIL TANK | ||
| 023 | A 0019875240 | RUBBER BUFFER |
| OIL TANK | ||
| 024 | N 000933008154 | SCREW |
| OIL TANK TO SUBSTRUCTURE | ||
| 025 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 025 | N 000125008443 | WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 025 | N 000125008443 | WASHER |
| OIL TANK TO SUBSTRUCTURE | ||
| 026 | N 913004008004 | NUT |
| OIL TANK TO SUBSTRUCTURE | ||
| 032 | N 915036008100 | HOLLOW SCREW |
| LINE TO OIL TANK | ||
| Repalced by: N 000000004749 | ||
| 032 | N 000000004749 | SCREW |
| LINE TO OIL TANK | ||
| 035 | N 007603012405 | SEAL RING |
| LINE TO OIL TANK | ||
| A 0009872627 | PLASTIC PIPE | |
| OIL TANK BREATHING | ||
| 038 | A 3574801015 | OIL LINE |
| FROM OIL TANK TO FILTER | ||
| A 3574801615 | OIL LINE | |
| Repalced by: A 3574800115 | ||
| A 3574800115 | OIL LINE | |
| FROM OIL TANK TO FILTER | ||
| 041 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 041 | N 000000006239 | UNION NUT |
| 044 | N 003861012006 | GLAND |
| Repalced by: N 003861012007 | ||
| 044 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 044 | A 0019901967 | SEAL CONE |
| 047 | A 0004810260 | FILTER |
| Repalced by: A 0004810360 | ||
| 047 | A 0004810360 | FILTER |
| OIL | ||
| 050 | A 0004810062 | SEAL RING |
| 053 | A 0004810459 | FILTER ELEMENT |
| 056 | A 0004810158 | FILTER BOWL |
| TO 000 481 03 60 | ||
| 059 | A 3574810409 | FILLER NECK |
| OIL LINE TO FILTER | ||
| 062 | A 3574810062 | SEAL RING |
| OIL LINE TO FILTER | ||
| 065 | A 3054810209 | BULKHEAD FITTING |
| Repalced by: A 3574810309 | ||
| 065 | A 3574810309 | FILLER NECK |
| OIL LINE TO FILTER | ||
| 068 | A 0004810191 | VALVE |
| (SOLENOID VALVE) | ||
| 071 | N 007603014106 | SEAL RING |
| SOLENOID VALVE | ||
| 074 | A 3079970272 | FITTING |
| Repalced by: A 0029977472 | ||
| 074 | A 0029977472 | FITTING |
| SOLENOID VALVE | ||
| 077 | A 3199970240 | SEAL RING |
| SOLENOID VALVE | ||
| 080 | N 080705014002 | NUT |
| SOLENOID VALVE | ||
| 083 | A 0004290627 | THRUST RING |
| SOLENOID VALVE | ||
| 086 | A 0079974245 | SEAL RING |
| SOLENOID VALVE | ||
| 087 | A 3574801115 | OIL LINE |
| Repalced by: A 0004291001 | ||
| 087 | A 3574801215 | OIL LINE |
| Repalced by: A 0004291001 | ||
| 087 | A 3574801315 | OIL LINE |
| Repalced by: A 0004291001 | ||
| 087 | A 0004291001 | LINE |
| STEEL | ||
| 12X1 MM | ||
| 088 | N 915017010206 | UNION NUT |
| 089 | N 003861012006 | GLAND |
| Repalced by: N 003861012007 | ||
| 089 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 089 | A 0019901967 | SEAL CONE |
| 090 | A 0119979382 | HOSE |
| FROM SOLENOID VALVE TO ENGINE OIL FILLER NECK | ||
| 092 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 092 | A 0029906171 | FITTING |
| OIL LINES | ||
| 095 | N 915017012100 | UNION NUT |
| HOSE TO FILLER NECK | ||
| Repalced by: N 000000006239 | ||
| 095 | N 000000006239 | UNION NUT |
| HOSE TO FILLER NECK | ||
| 098 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 098 | A 0019901967 | SEAL CONE |
| HOSE TO FILLER NECK | ||
| 099 | A 0019902771 | ELBOW FITTING |
| HOSE TO FILLER NECK | ||
| 100 | N 916016010201 | CLAMP |
| Repalced by: N 916016010211 | ||
| 100 | N 916016010211 | CLAMP |
| Repalced by: N 000000001045 | ||
| 100 | N 000000001045 | CLAMP |
| ENGINE OIL LINE ON FUEL LINE | ||
| 100 | N 916016012200 | CLAMP |
| ENGINE OIL LINE ON FUEL LINE | ||
| 101 | N 000933006127 | SCREW |
| ENGINE OIL LINE ON FUEL LINE | ||
| 102 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 102 | N 913004006001 | NUT |
| ENGINE OIL LINE ON FUEL LINE | ||
| 103 | A 0005423714 | INDICATOR |
| OIL SUPPLY | ||
| 104 | A 0009961772 | PULL |
| 107 | A 3574810240 | BRACKET |
| OIL LEVEL INDICATOR | ||
| 110 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 110 | N 000000000460 | SHEET METAL SCREW |
| BRACKET TO SUBSTRUCTURE | ||
