Transporto priemonė: O 405 N 1; VIN numerio dalis: 357422

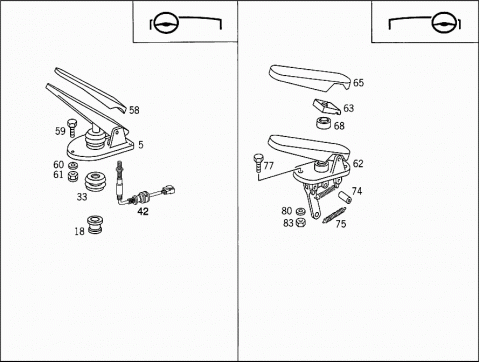

Grupė: 29 PEDAL ASSEMBLY - 060 BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/380 | ||
| 005 | A 0004300318 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 005 | A 0004300718 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 018 | A 0004310050 | BUSHING |
| 033 | A 0004314887 | PROTECTIVE CAP |
| A 0059973240 | SEAL RING | |
| 042 | A 0035458232 | CONTROL UNIT |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| M 8X1 | ||
| 042 | A 0045458332 | CONTROL UNIT |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| M 12X1 | ||
| 058 | A 0002920082 | PAD |
| BRAKE PEDAL | ||
| 058 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 059 | N 007984008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 060 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 060 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 061 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 062 | A 0002920401 | PEDAL |
| BRAKE | ||
| 063 | A 0002920049 | BEARING |
| 065 | A 0002920082 | PAD |
| 068 | A 0002920097 | BOOT |
| PUSH ROD | ||
| 074 | A 0002920050 | BUSHING |
| REVERSING LEVER | ||
| 075 | A 0002920087 | SPRING |
| BRAKE PEDAL RESET | ||
| 077 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 077 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 077 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 077 | N 910143008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 083 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
