Transporto priemonė: O 405 ST; VIN numerio dalis: 357001
Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| CLUTCH PEDAL UNIT | ||
| 005 | A 3072901219 | BEARING BRACKET |
| 008 | N 000933010105 | SCREW |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 011 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 011 | N 000125010532 | WASHER |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| 014 | A 3572900116 | PEDAL |
| CLUTCH | ||
| A 3572900716 | PEDAL | |
| CLUTCH | ||
| 017 | A 3059920001 | BUSHING |
| 020 | A 0099976447 | SEAL RING |
| 023 | A 3572900024 | PEDAL PLATE |
| Repalced by: A 3572900224 | ||
| 023 | A 3572900224 | PEDAL PLATE |
| 026 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 029 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 032 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 035 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 035 | N 304035008001 | NUT |
| STOP TO BEARING BRACKET | ||
| 038 | N 000988030003 | FITTED WASHER |
| PEDAL TO BEARING BRACKET | ||
| 041 | N 000983028001 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 044 | A 3059930610 | SPRING |
| CLUTCH PEDAL RESET | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/330 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

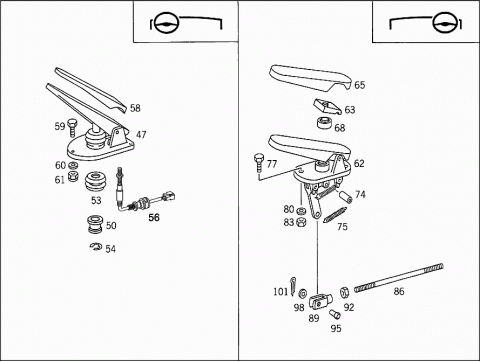

| BRAKE PEDAL UNIT | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/380 | ||
| 047 | A 0004300118 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 047 | A 0004300318 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 047 | A 0004300718 | BRAKE PEDAL |
| SERVICE BRAKE VALVE | ||
| 050 | A 0004310050 | BUSHING |
| 053 | A 0004314887 | PROTECTIVE CAP |
| A 0059973240 | SEAL RING | |
| 054 | N 006799008005 | LOCK PLATE |
| 056 | A 0035458232 | CONTROL UNIT |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| M 8X1 | ||
| 056 | A 0045458332 | CONTROL UNIT |
| (APPROXIMATION SWITCH) RETARDER AND STOP LIGTH | ||
| M 12X1 | ||
| 058 | A 0002920082 | PAD |
| BRAKE PEDAL | ||
| 058 | A 0002920182 | PAD |
| BRAKE PEDAL | ||
| 059 | N 007984008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 060 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 060 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 061 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 062 | A 0002920401 | PEDAL |
| BRAKE | ||
| 063 | A 0002920049 | BEARING |
| 065 | A 0002920082 | PAD |
| 068 | A 0002920097 | BOOT |
| PUSH ROD | ||
| 074 | A 0002920050 | BUSHING |
| REVERSING LEVER | ||
| 075 | A 0002920087 | SPRING |
| BRAKE PEDAL RESET | ||
| 077 | N 000933008160 | SCREW |
| Repalced by: N 304017008040 | ||
| 077 | N 304017008040 | SCREW |
| Repalced by: N 910105008010 | ||
| 077 | N 910105008010 | SCREW |
| Repalced by: N 910143008005 | ||
| 077 | N 910143008005 | SCREW |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 083 | N 913004008005 | NUT |
| BRAKE PEDAL TO SUBSTRUCTURE | ||
| 086 | N 900331012327 | PULL ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 089 | N 071752012002 | YOKE |
| R.H. THREAD | ||
| 12X48 MM | ||
| 089 | N 071752012005 | YOKE |
| R.H. THREAD | ||
| 12X24 MM | ||
| 092 | N 000934012021 | NUT |
| YOKE TO PULL ROD | ||
| 095 | A 0009912307 | PIN |
| PULL ROD TO PEDAL AND TO BRAKE VALVE | ||
| 098 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 098 | N 000433013010 | WASHER |
| PULL ROD TO PEDAL AND TO BRAKE VALVE | ||
| 101 | N 000094004065 | COTTER PIN |
| PULL ROD TO PEDAL AND TO BRAKE VALVE | ||
